Muxlab 8 x 8 Cat 5e/6 Line Level Audio Matrix Switch - Manual (Page 12)

© MuxLab Inc. Audio 8x8 Matrix Switch Installation Guide
Page 12

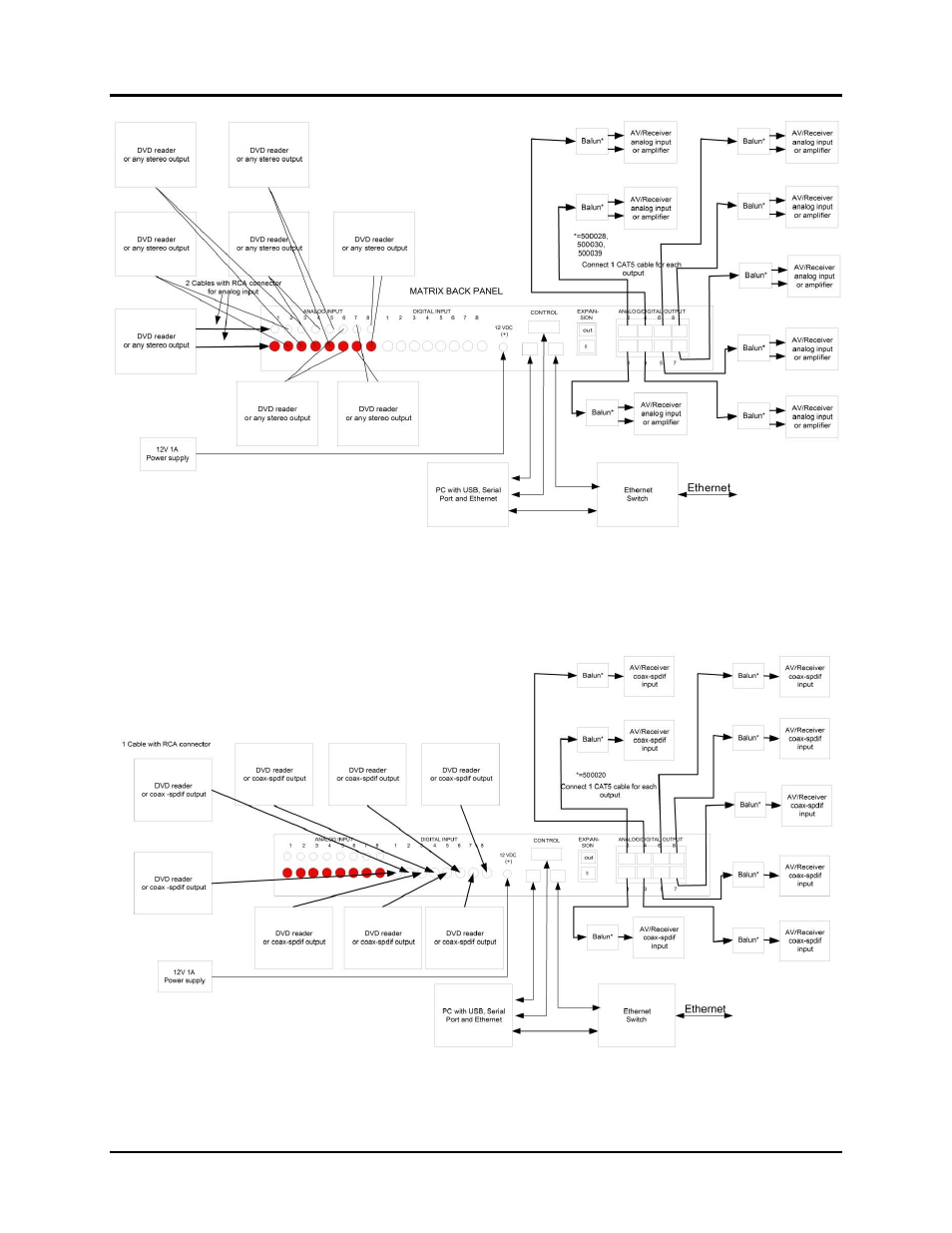

Figure 6: Typical Configuration: Analog Signal (Stereo)
Figure 7: Typical Configuration: Digital Signal (SPDIF – Coaxial)
