Recommended Cable Configurations: Driver to Motor
Cable length, wire gauge and power conditioning devices play a major role in the performance
of your Driver and Motor.
NOTE: The length of the DC power supply cable between the Driver and the Motor should not
exceed 50 feet.
Example A demonstrates the recommended cable configuration for the Driver to Motor cabling
under 50 Feet long.
Correct AWG wire size is determined by the current requirement plus cable length. Please see
the Driver to Motor Cable AWG Table in this Appendix.

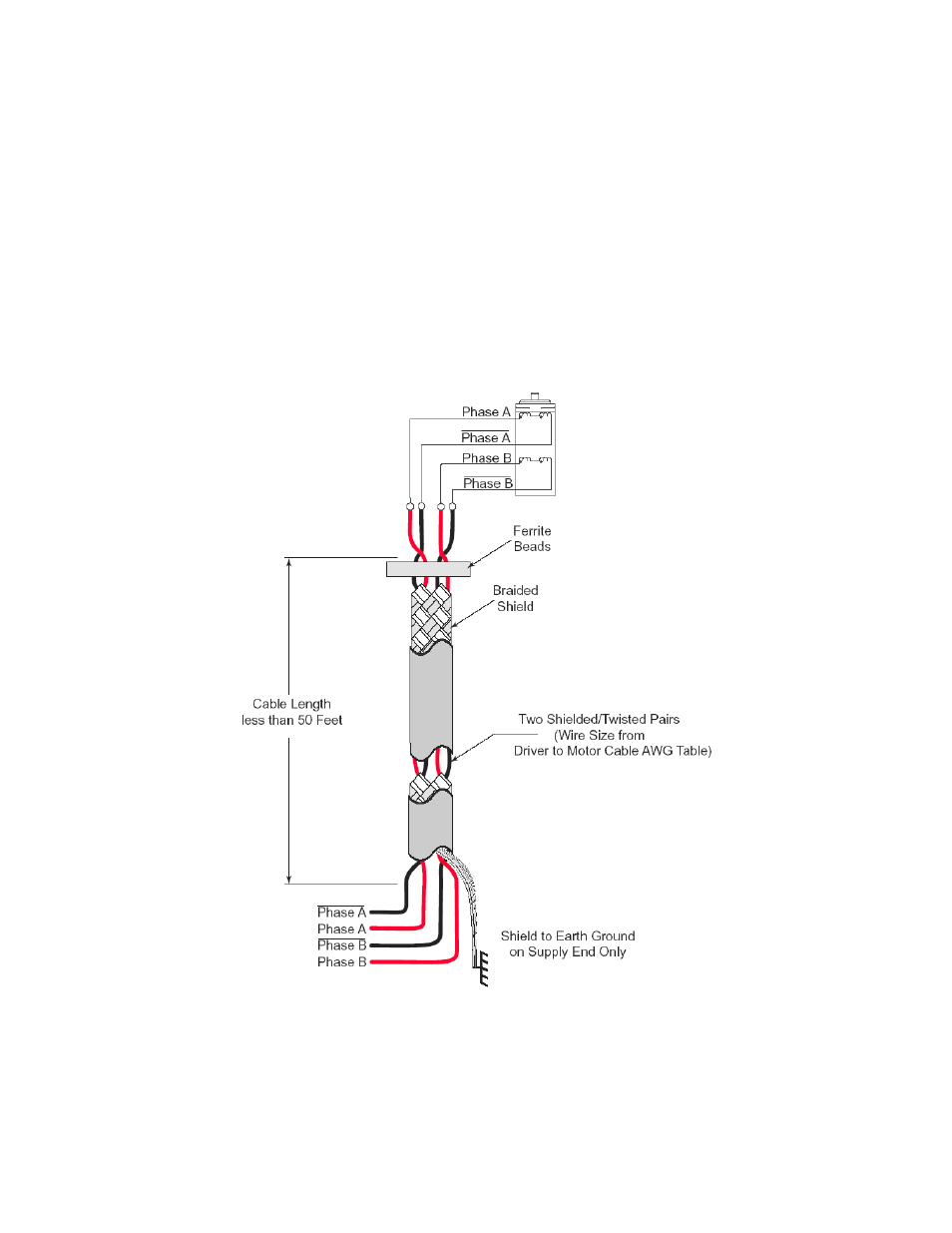

Example A - Cabling Under 50 Feet, Driver to Motor
If cabling of 50 feet or longer is required, the additional length can be gained by adding Common
Mode Line Filters (2x)
*L ≈ 0.5 MH
R325P User Manual Page 17 of 20 5/29/2013 Version 1.01
