Agri-Fab 45-02141 User Manual
Page 7
7

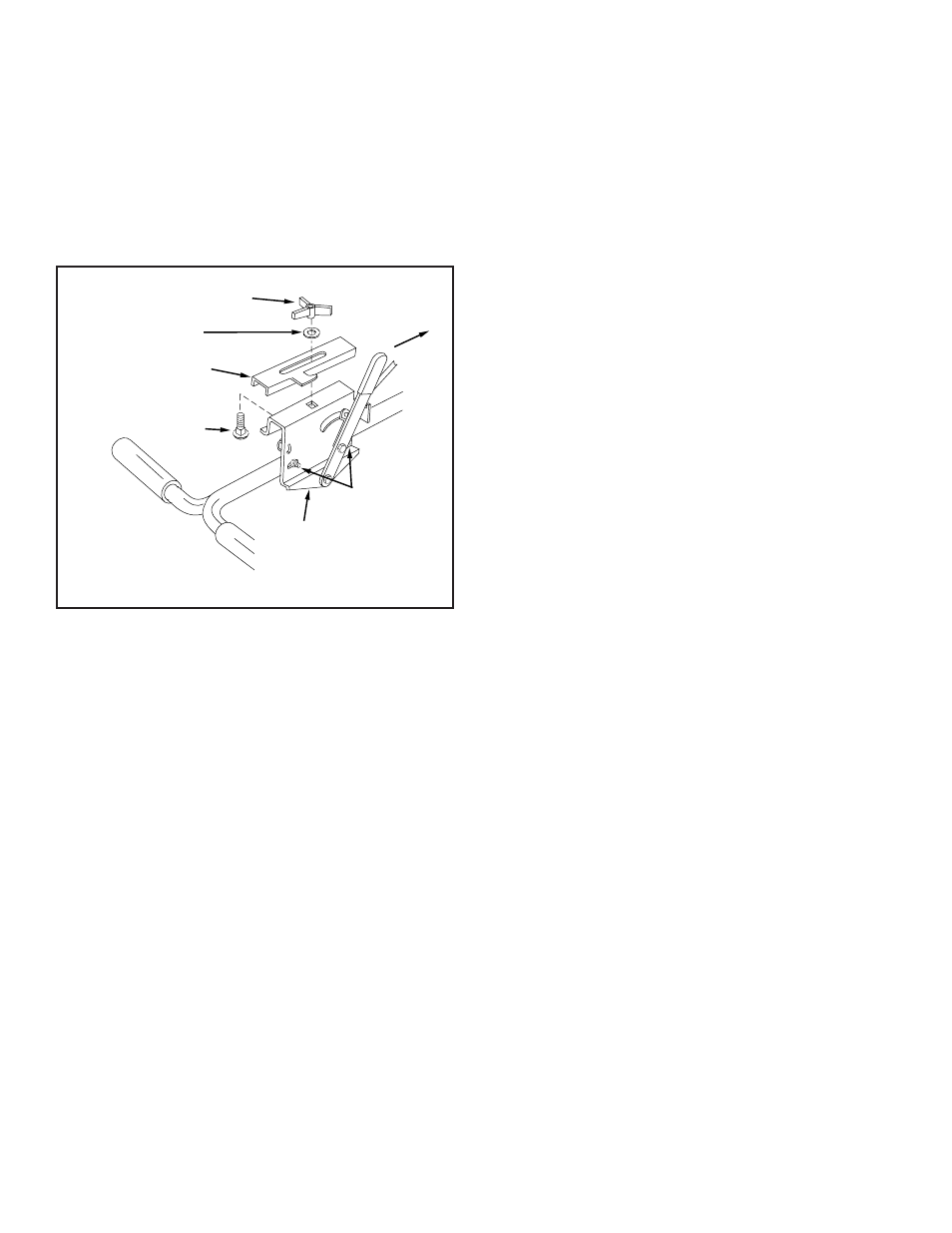

23. Assemble the flow control gage onto the flow control
mounting bracket using a 1/4" x 3/4" carriage bolt, a
nylon washer and hand knob. See figure 14.
24. Move flow control arm to off position and push flow
control mounting bracket toward hopper until closure
plate (located in bottom of hopper) is completely closed.
Tighten 1/4" hex lock nuts assembled in step 21. See
figure 14.
HAND KNOB
NYLON
WASHER
FLOW CONTROL
GAGE
OFF
1/4" x 3/4"
CARRIAGE BOLT
1/4" HEX
LOCK NUTS
FLOW
CONTROL
MOUNTING
BRACKET
FIGURE 14
25. Lubricate as instructed in the lubrication section on
page 8.
