4
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Pliers
(1) Hammer
(2) 7/16" Open or Boxed End Wrenches
1. Remove the spreader, the loose parts and the hard-
ware package from the carton. Lay out parts and
hardware and identify. Refer back to figures 1 and 2.

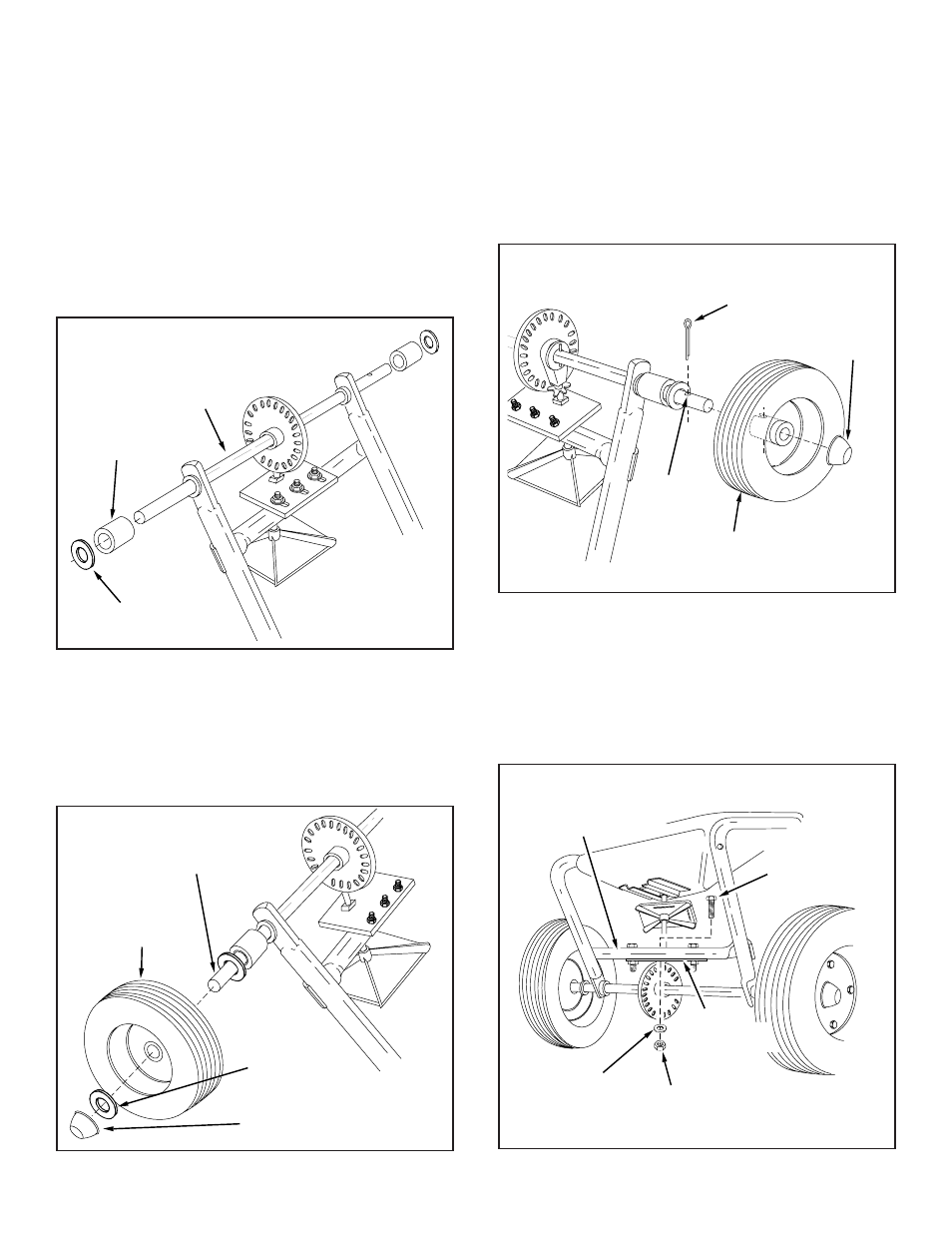

2. With the spreader resting upside down on the top of
the hopper, assemble a spacer and then a 1/2" flat
washer onto each end of the axle. See figure 3.
FIGURE 4
1/2" FLAT
WASHER
HUB CAP
WHEEL
NO CROSS HOLE
FIGURE 3
FIGURE 5
5. Place a wheel onto the end of the axle that has a cross
hole. The long end of the hub goes to the inside. See
figure 5.
6. Assemble a 5/32" x 2" cotter pin through the notched
wheel hub and the axle. See figure 5.
7. Lightly tap a hub cap onto the axle until it is snug
against the wheel. See figure 5.
FIGURE 6
8. Remove the 1/4" hex bolt, flat washer and hex lock nut
from the center of the crossover tube. See figure 6.
CROSSOVER
TUBE
1/4" HEX
BOLT
1/4" HEX
LOCK NUT
1/4" FLAT
WASHER
SHAFT
SUPPORT
AXLE
SPACER
1/2" FLAT
WASHER
3. Place a wheel onto the end of the axle that has no cross
hole. The long end of the hub goes to the inside. See
figure 4.
4. Place a 1/2" flat washer onto the axle and then lightly
tap a hub cap onto the axle until it is snug against the
washer and wheel hub. See figure 4.
HUB CAP
5/32" x 2"
COTTER PIN
WHEEL
CROSS
HOLE
