3

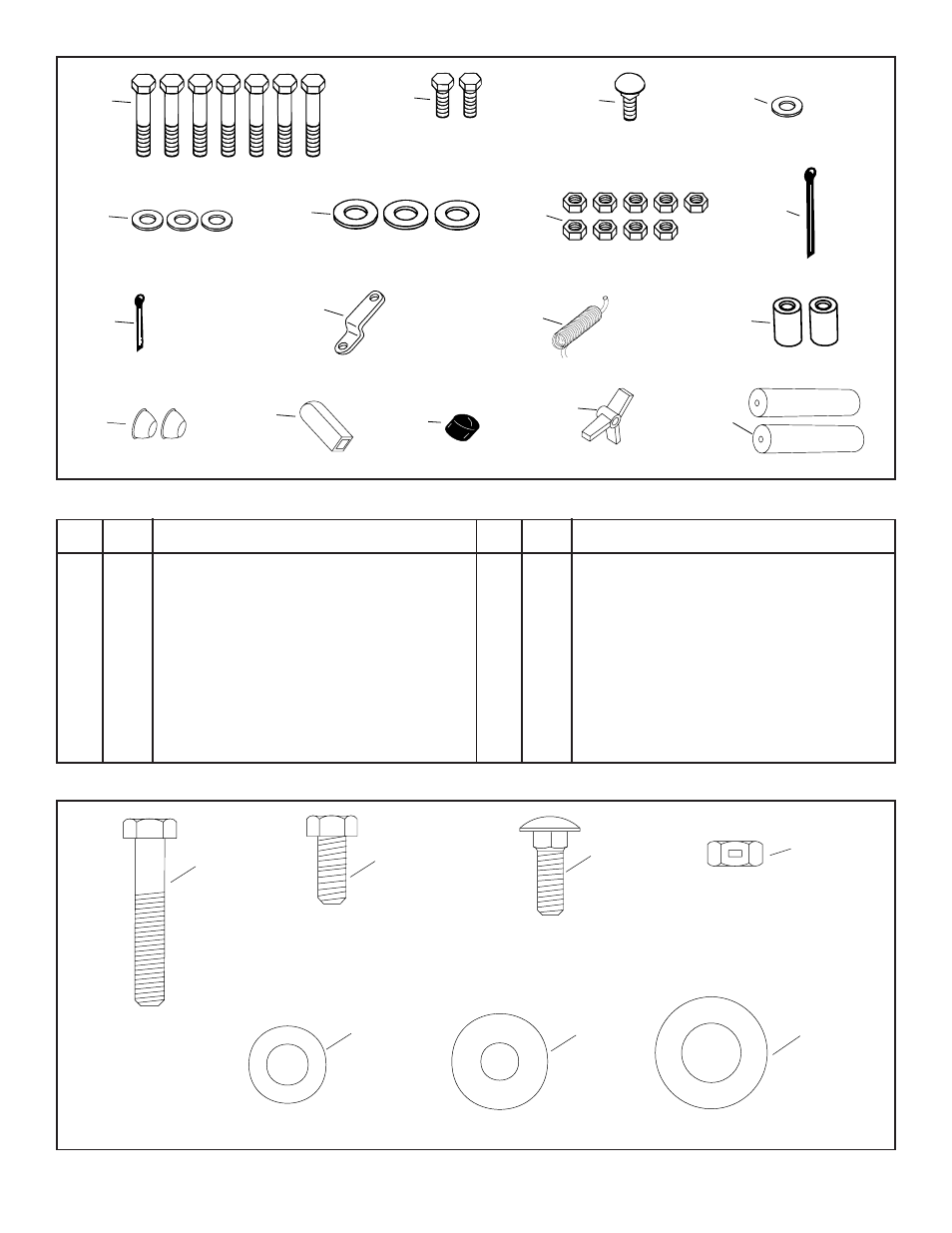

FIGURE 2 - HARDWARE PACKAGE
KEY QTY. DESCRIPTION
A 7 Hex Bolt, 1/4-20 x 1-1/2" Long
B 2 Hex Bolt, 1/4-20 x 5/8" Long
C 1 Carriage Bolt, 1/4-20 x 3/4" Long
D 1 Nylon Washer
E 3 Flat Washer, 5/16" SAE
F 3 Flat Washer, 1/2"
G 9 Hex Lock Nut, 1/4-20 Thd.
H 1 Cotter Pin, 5/32" x 2"
KEY QTY. DESCRIPTION
I 1 Cotter Pin, 3/32" x 3/4" Long
J 1 Flow Control Link
K 1 Extension Spring
L 2 Spacer Tube
M2 Hub Cap
N 1 Grip
O 1 Vinyl Cap
P 1 Hand Knob
Q 2 Handle Grip
FULL SIZE HARDWARE REFERENCE CHART
Q
I
E
P
M
L
F
C
O
B
G
D
K
A
N
J
H
1/2" WASHER 5/16" WASHER
1/4" LOCK NUT
D F
NYLON WASHER
1/4" x 5/8"
1/4" x 1-1/2"
1/4" x 3/4"
A
B
C G
E
