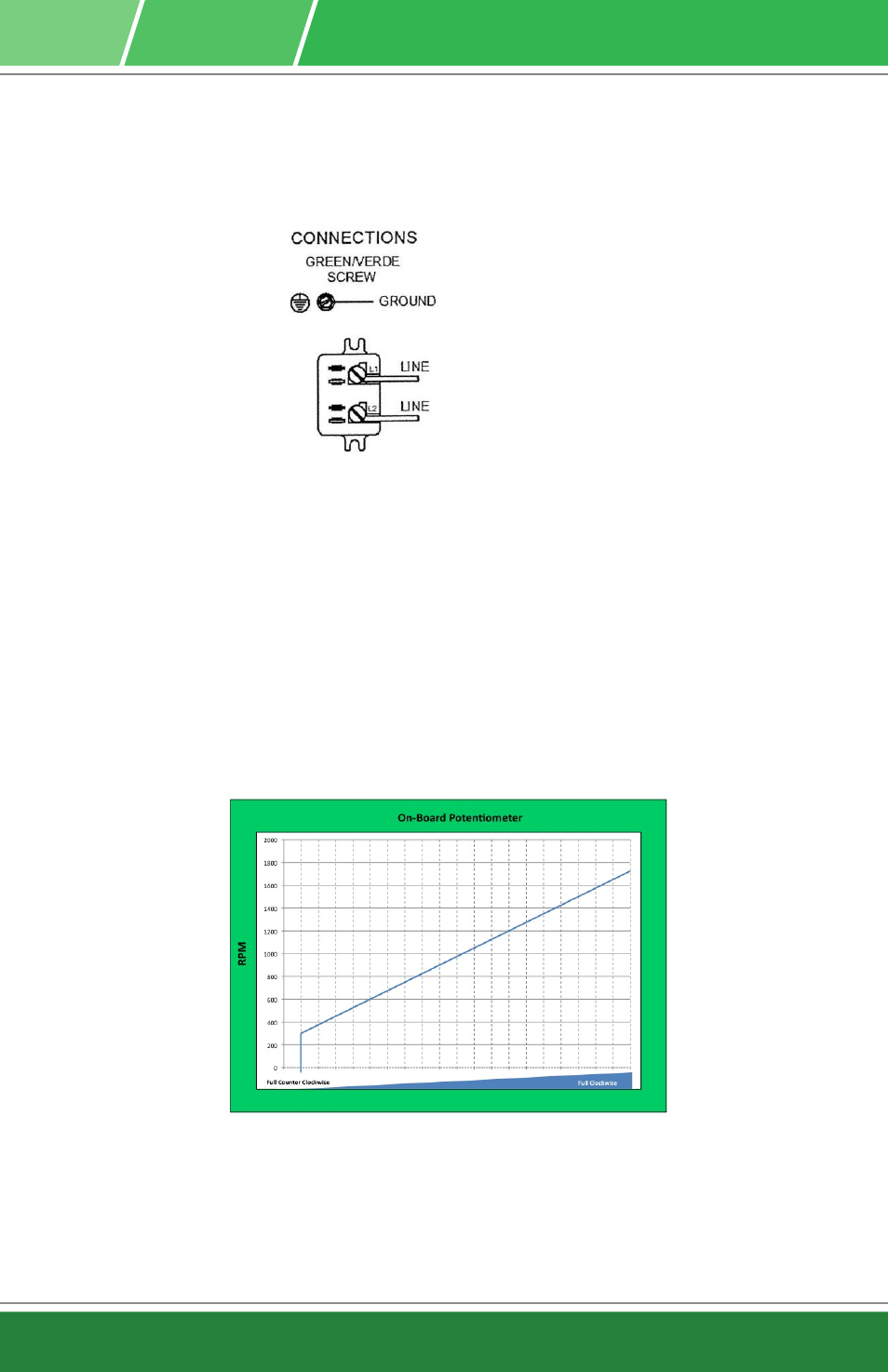

Configuration Scenarios
This section provides examples of different configurations and briefly describes how
the motor operates under those conditions.
Operating Parameters
Speed will change linearly based on the On
-Board Potentiometer or remote 0-10
VDC signal. The graph below illustrates the operation of a motor adjusted with the
On-Board Potentiometer.
At 0.5 VDC signal, the motor will come on at 300 RPM and ramp linearly to
1725 for Series 60 pumps and 1765 RPM for Series e-90 pumps.
6
AC Line Connections
Check
to see if the line voltage matches the nameplate voltage.
