INSTALLATION PROCEDURE for BRUTE IV EXTREME TM
MID-CONTROLS (PART NO. 2084-0504)
NOTE: USE BLUE LOCTITE ON ALL FASTENERS
TORQUE 1/4” fasteners to 120 inch pounds . . . 5/16” fasteners to 30 foot pounds . . . 3/8” fasteners to 42 foot pounds
SHIFT SIDE ASSEMBLY (P/N 2084-0500) / INSTALLATION PROCEDURE
1. Remove primary covers and primary drive per O.E. manual.
2. Remove the shifter and shifter mounting plate per O.E. manual.
3. Remove block-off plug from motor plate & install supplied shifter crossover tube(P/N 2084-0050) (Photo 7A, 7B, 7C)
4. Install spring washer (P/N 1101-0018) onto shifter shaft &
then thrust washer (P/N 1101-0022). Install shifter shaft
into shifter crossover tube. (Photo 8)
5. Install motor plate onto motorcycle per your BRUTE IV
EXTREME TM instructions.
6. Install belt drive and clutch per your BRUTE IV EXTREME TM
instructions.
7. Install the shifter rod to the shifter linkage
and shifter arm on transmission using
two(2) each 5/16-24 x 1.00” socket head
cap screws (P/N 1100-0017) & one(1) each
5/16-24 lock nut (P/N 2100-0044). (Photo 9)

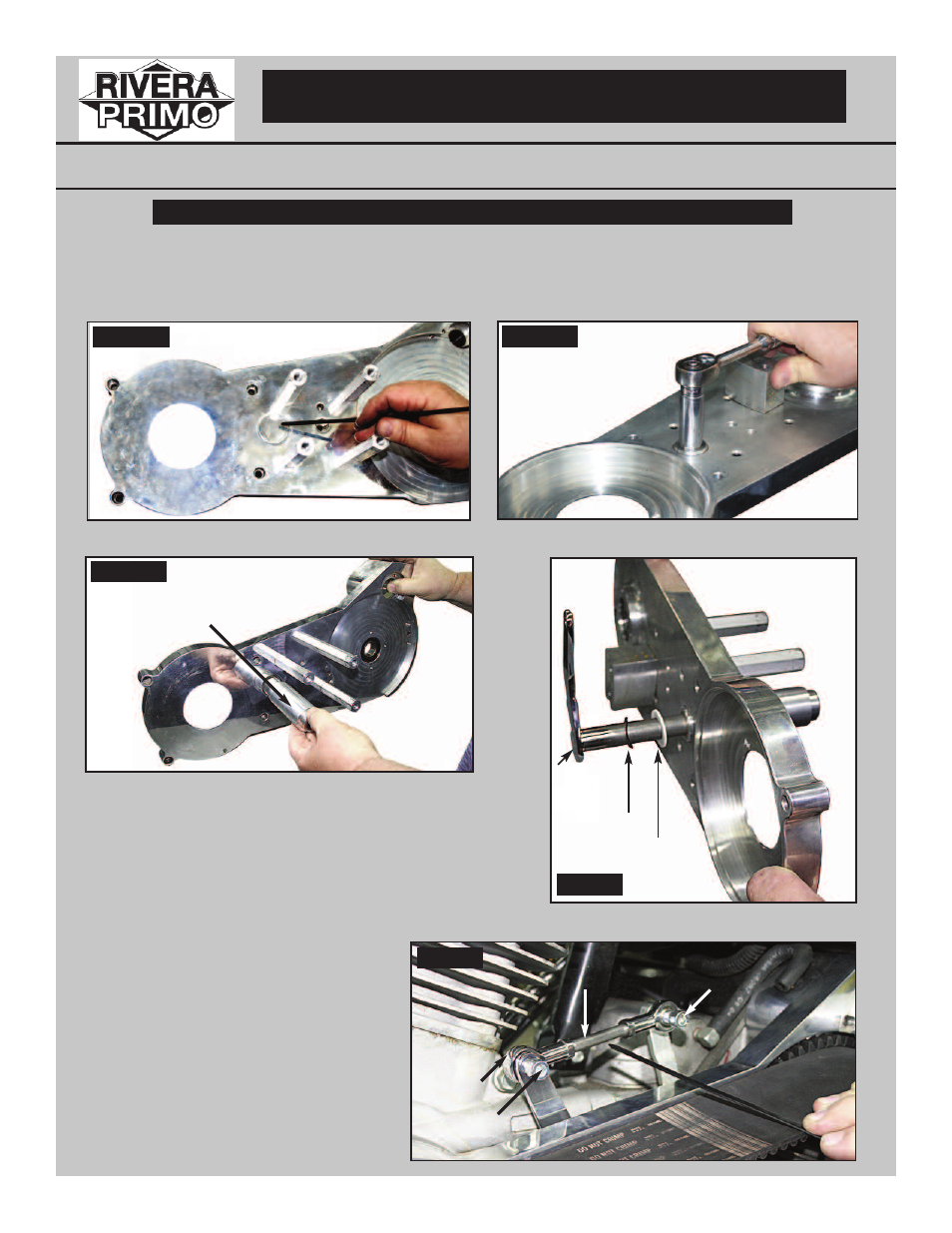

Photo 7A Photo 7B
Photo 7C
Photo 8
Photo 9
2084-0050
1101-0022
1101-0018
Welded
Shifter
Linkage
1101-0017
1101-0017
2100-0044
Shifter Rod Assy
