Page 3

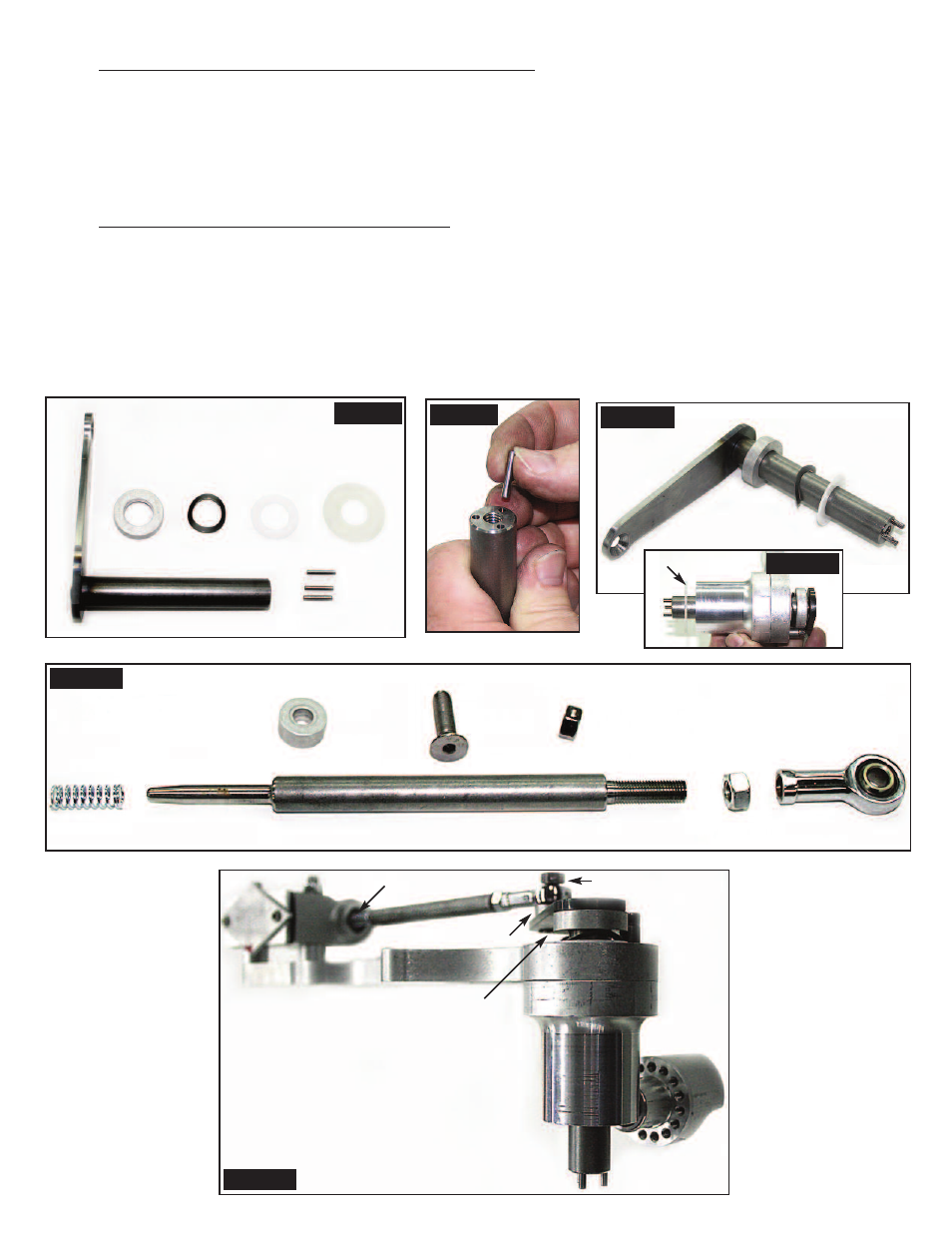

Brake Side Assembly & Brake Linkage Assembly
Qty Part Number
Description
1
Welded Brake Linkage Photo 8
3
2101-0008
.125” x .750” Dowell Pins
Photo 8 & 9
1
2084-0075
Brake Shaft Spacer
Photo 8 & 10
1
1100-0018
Curved Disc Spring Washer
Photo 10
1
1101-0020
Thrust Washer (Small)
Photo 10
1
1101-0022
Thrust Washer (Large)
Photo 11
Master Cylinder Plunger Rod Assembly
Qty Part Number
Description
1
2018-0099
Rod End 5/16-24 Female
Photo 12
1
2084-0065
Plunger Rod
Photo 12 & 13
1 RIV-201
Jam Nut for Rod End on Plunger Rod
Photo 13
1
1101-0023
Return Spring
Photo 13
1
2100-0043
5/16-24 x 1.25” SFHCS
Photo 12 & 13
1 2084-0073 Spacer (Rod End) Photo 12 & 13
1
2100-0044
5/16-24 Center Locknut Photo 12 & 13
Photo 8
Photo 9
Photo 10
Photo 11
Photo 12
Photo 13
2084-0065
2084-0075
1100-0018
1101-0020
1101-0022
2101-0008
2084-0075
1100-0018
1101-0020
1101-0022
1101-0023
2084-0073
2100-0043
2100-0044
RIV-201
2018-0099
1101-0023
2084-0073
2100-0044
2100-0043
2084-0093
