B. switch settings – APG Cash Drawer Model 212A Smart SerialPRO User Manual
Page 4
B. Switch Settings
Banks A and B define the ASCII character(s) that the cash drawer will recognize as its opening sequence. Refer to Chart
#1 for the proper switch settings for a particular ASCII character. Refer to the software supplier to determine the ASCII
sequence used as the cash drawer opening code. If one ASCII character is sent by the software package to open the cash
drawer, then only switch bank A must be set to match this character. Bank B settings will be ignored in one character
mode. If two characters are sent by the software package to open the cash drawer, then Bank A is the first character, and
Bank B is the second character.
Bank C interprets the COM port parameters of the signal. Bank C switch settings are defined as follows:
1
2
3
Baud Rate
OFF
on
on
300
on
OFF
on
600
OFF
OFF
on
1200
on
on
OFF
2400
OFF
on
OFF
4800
on
OFF
OFF
9600
OFF
OFF
OFF
19,200
4
5
Parity
OFF
on
None
on
OFF
Even
OFF
OFF
Odd
6
Data Bits
on
7
OFF
8
7
Opening Characters
on
1
OFF
2
8_
Host Device
on
DCE (Computer)
OFF
DTE (Terminal)
* The APG default settings are shown as bold text above.

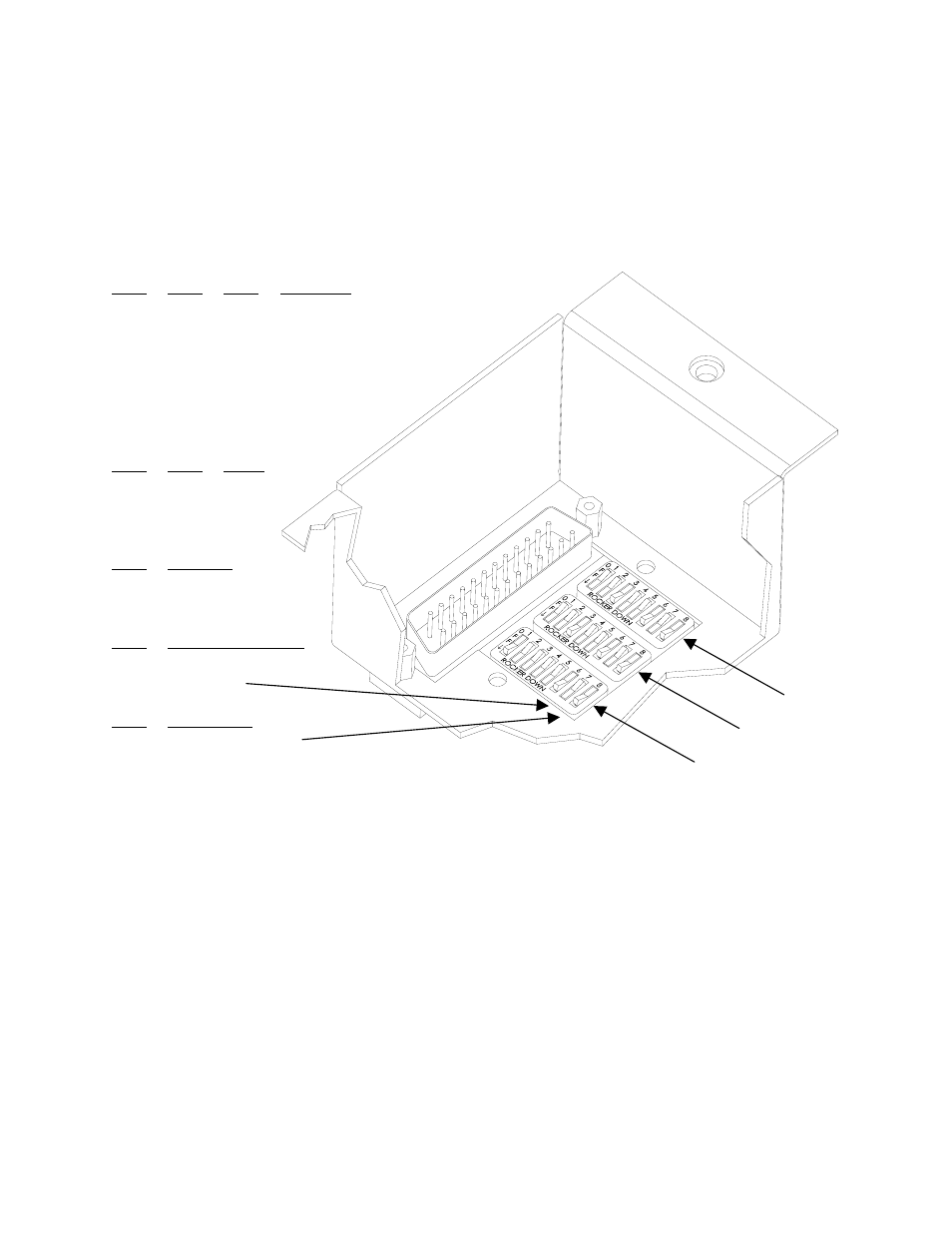

Figure 6
Bank A
Bank B
Bank C
