- Autoconfiguration: Optimizes the displayed image. Adjusts phase and image position automatically.
- Width: Adjusts image width.
- Phase: Adjusts image phase.
- Horizontal position: Adjusts horizontal image position.
- Vertical position: Adjusts vertical image position

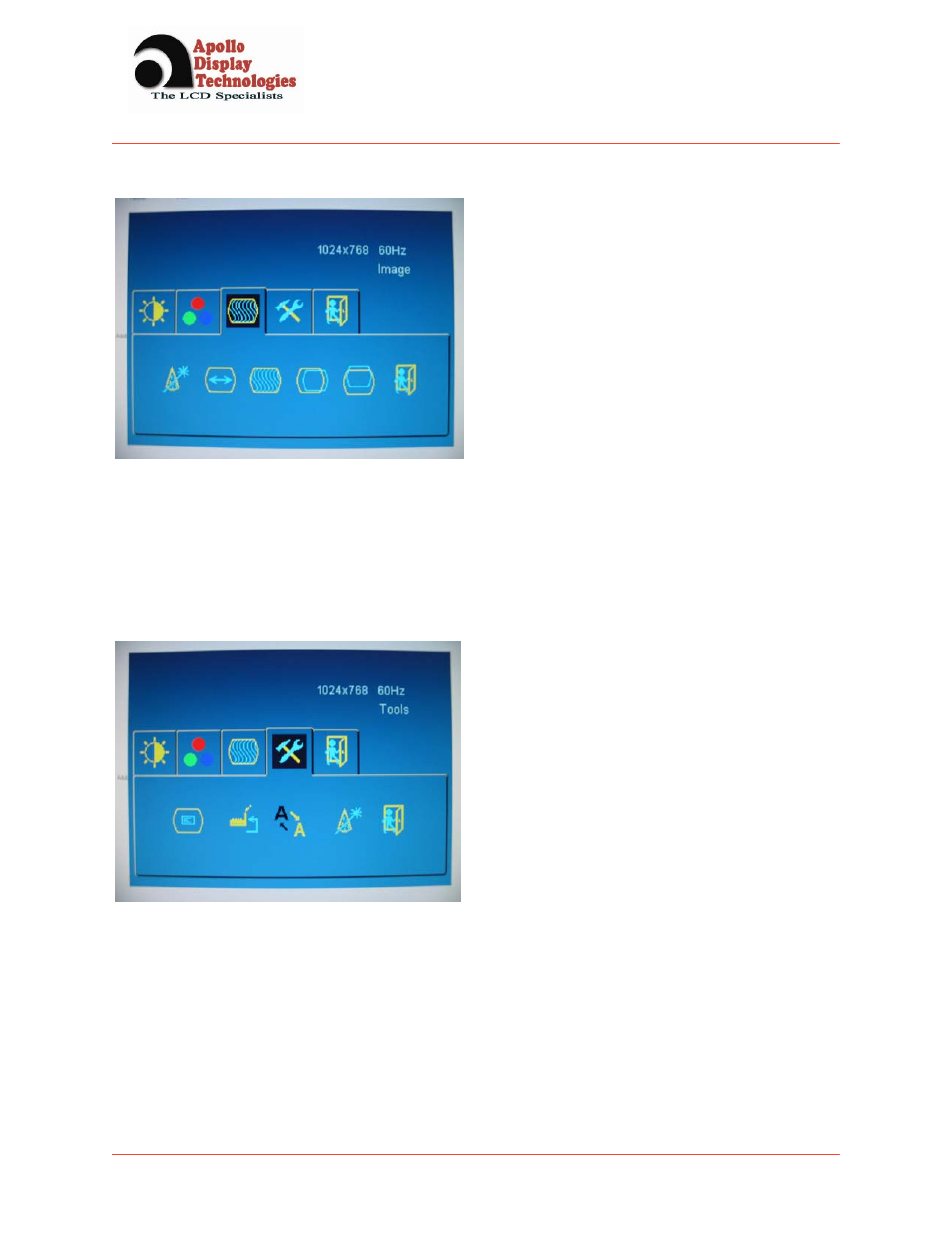

Tools & OSD
- OSD
• OSD Timeout: The OSD vanishes after a certain time of inactivity. Values of 2-16s are possible
• OSD Horizontal Position: Adjusts position horizontally
• OSD Vertical Position: Adjusts position vertically
• OSD Size: Doubles size of OSD (only valid if display resolution is 2 times larger than the OSD size)
- Factory reset: Return to factory default values
- Sharpness: Modifies the image filtering with shrinking and expansion
- Autoconfiguration Type
• Fast: Quick autoadjustment method (coarse adjust for fast resolution switching, like during bootup)
• Normal: Standard autoadjustment method (fine adjustment once the system is displayed properly)
