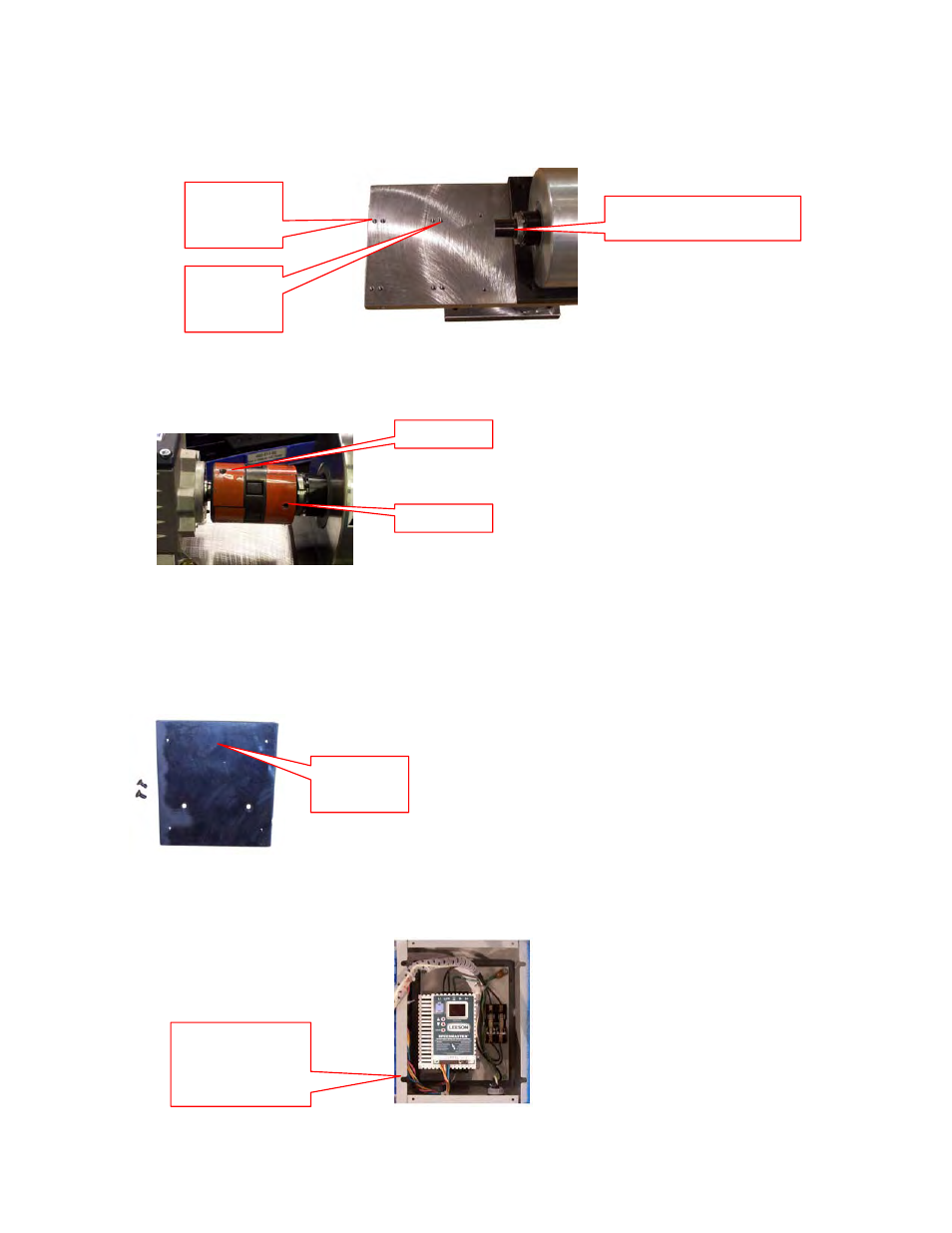

10. Set the motor / gearbox assembly onto the mounting plate. While someone is holding the motor
end up install the mounting bolts finger tight. Use mounting holes farthest from the spindle as
shown below.
New
Mounting
Holes
Old
Mounting
Holes
Spindle
(Love Joy coupler removed)
11. Slip the two Love Joy coupler halves together with your fingers, being sure the spider is still
locked in the “fingers”. Tighten the set screws and snug up the motor / gearbox mounting bolts.
Set Screw
Set Screw
12. Install the new Love Joy cover using the old screws.
13. Bolt the control box mounting plate to the motor / gearbox mounting plate using the holes you
drilled earlier and the 5/16”-18 x ¾” FHCS.Put a drop of locktite on the bolt threads. Be sure the
long end of the plate is at the top.
Long End
Top
14. Mount the Speed Control box to the mounting plate using the supplied 1/4”-20 x ½” SHCS. This
step will require a long allen wrench to reach inside the control box.
Access
Mounting bolts
through slots
at 4 Places
