Optional Parts

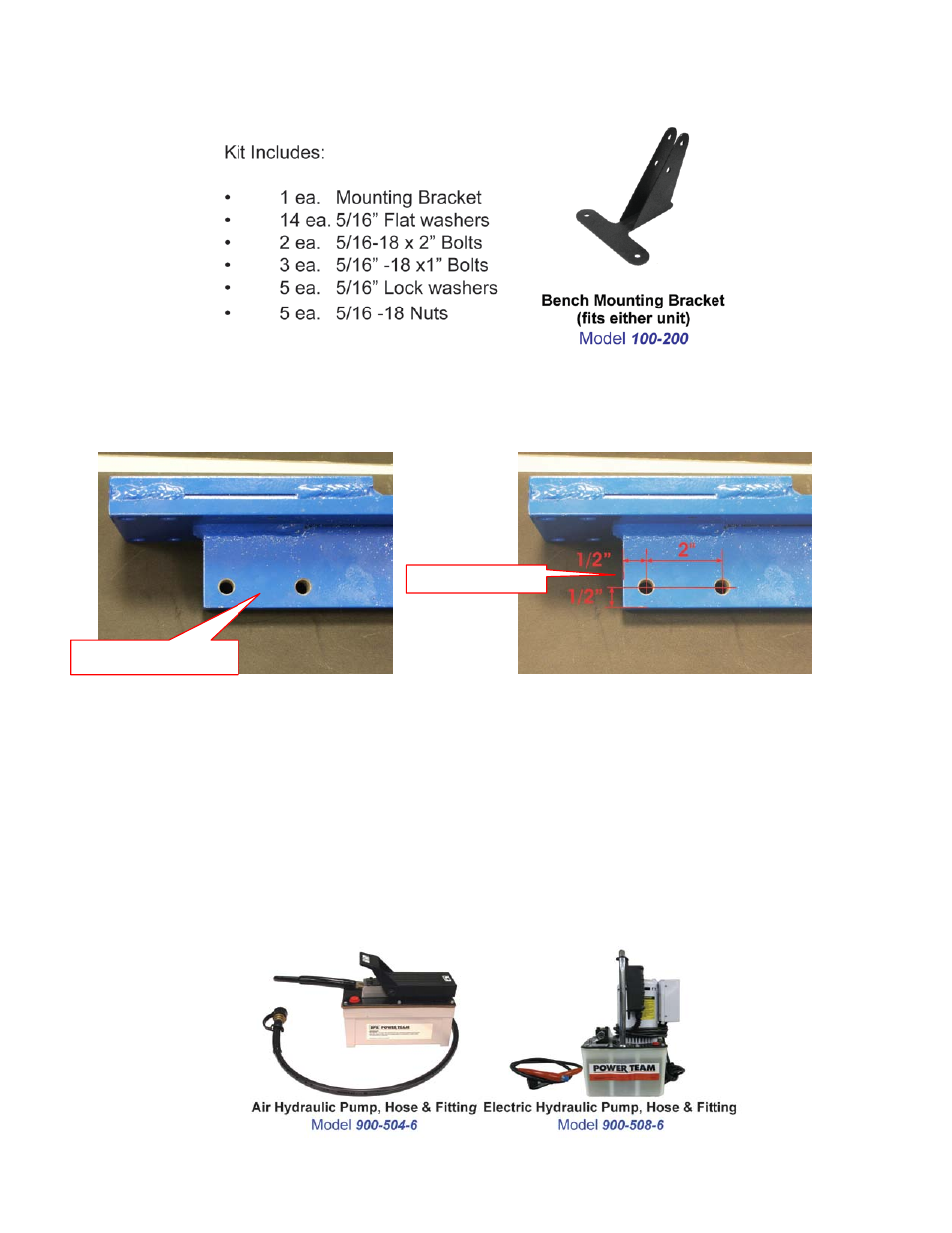

#100-200 Hydraulic Tubing Notcher Mount
1. If your notcher does not have the mounting holes on the lower end of the unit, as shown below, you
will have to drill two 3/8” diameter holes located as shown. This would be best accomplished using
a drill press to obtain straight and square holes.
2. Use the supplied 5/16” flat washers to shim the mount to match the thickness of your notcher.
3. Use the 5/16” x 1” bolts to mount to our Universal stand, #3100-100. Be sure to us a flat washer
under the head and under the nut when bolting the mount to the stand. If you are mounting to your
own stand be sure to use a flat washer under the bolt head.
Hydraulic Pumps
Mounting Holes
Drill Pattern
