Rugged Ridge XHD Soft Top, Black Denim, Clear Windows, 81-98 Suzuki Samurais - Manual (Page 3)

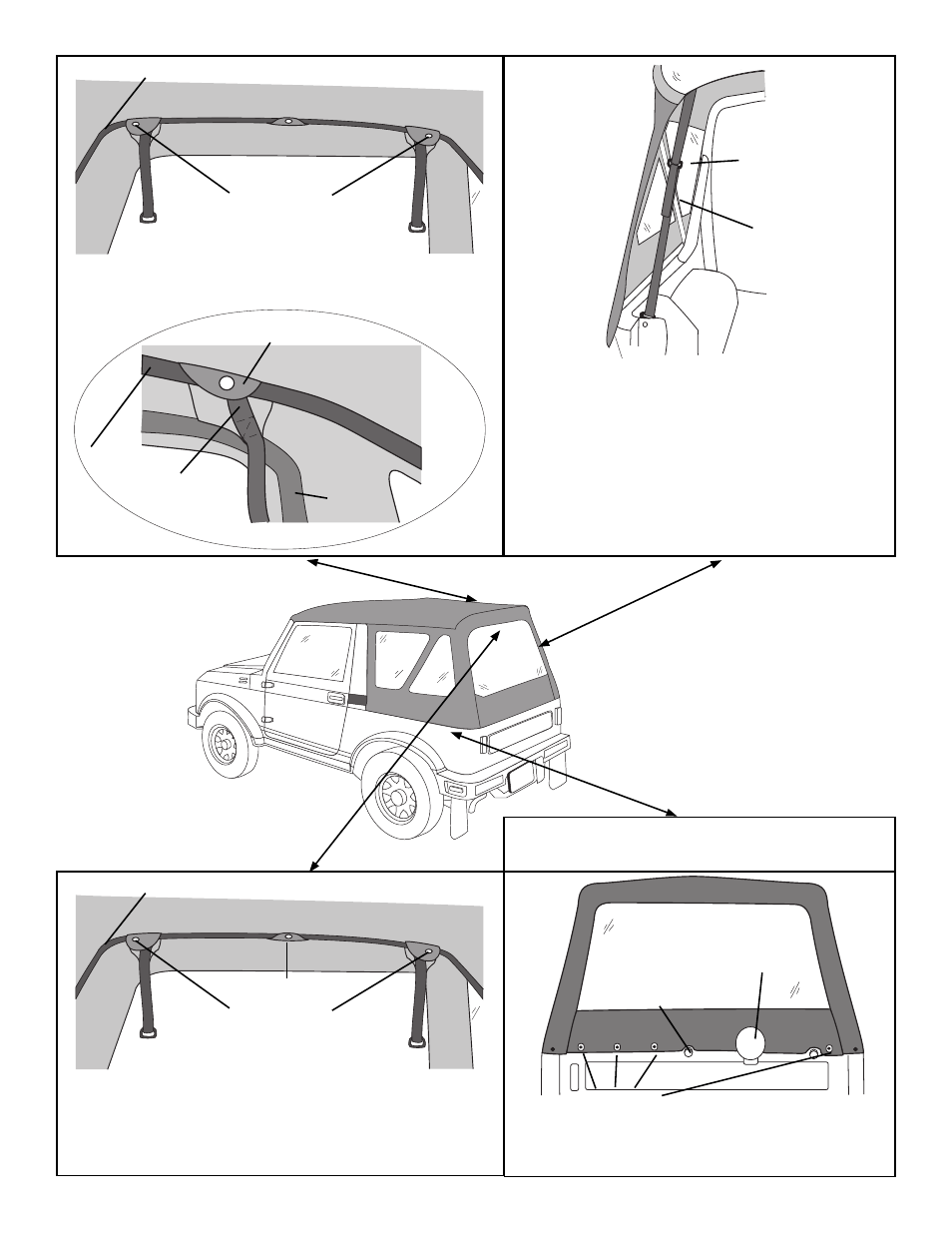

Step Five: Make sure that the straps sewn into the
rear of the top are behind the rear bow.
Rear bow
Strap must be hehind bow
Snap tab
Rear bow
Zipper
Strap tab must
be behind bow
(as viewed from interior)
Step Six: Thread the Tension Straps through
the loop on the strap sewn into the rear of
the top. Pull the strap tight and secure it in
place with the hook & loop sewn to the strap.
NOTE: Pull the strap down tight but do not
use excessive force, it is not designed to pull
the bow assembly downward.
Rear curtain folded
up over top
Thread strap
through loop
Fasten the end
of the strap
back on itself
(left rear corner as
viewed from interior)
Step Seven: Snap the top to the rear bow. The
center snap fl ap will wrap around the bow from
behind and the two outer snap fl aps will wrap
around the bow from the front.
Rear bow
Snap from front
(as viewed from interior)
(as viewed from interior)
Snap from back
Step Nine: Fasten the bottom of the Rear
Curtain to the Lift-A-Dots on the rear of the
vehicle.
Step Eight: Snap the snaps on the bottom
of the side panels from front to back.
Lift-A-Dots
Spare Tire Bumper
Spare Tire Carrier
