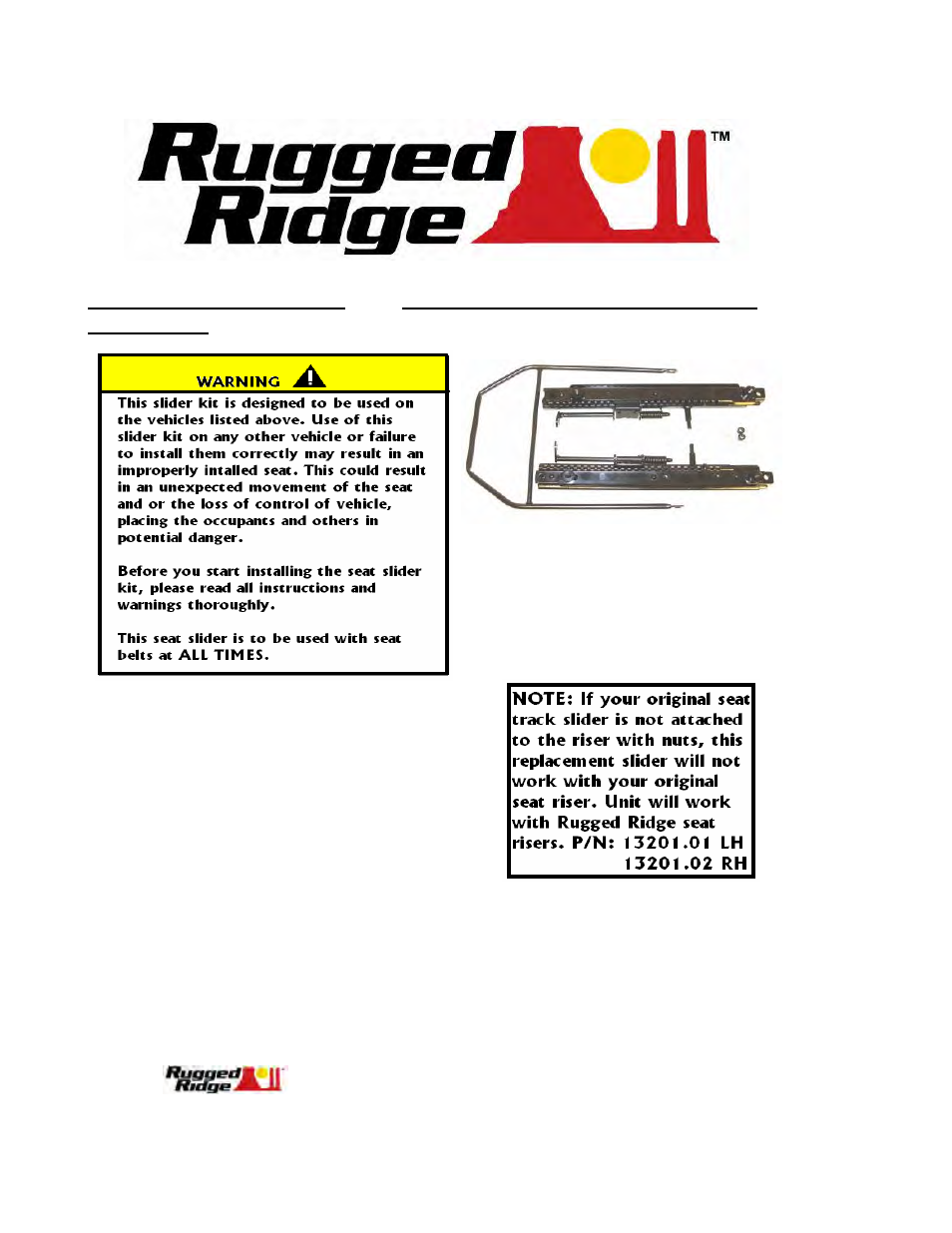

Track Sliders for Jeep® Seats

For: CJ5, CJ7, and Wranglers 1976-1995

P/N: 13201.03

Parts list: (1) Left seat slider
(1) Right seat slider
(1) Seat adjuster bar
(2) Inserts (plastic)
(2) Clips

Tools needed: 13MM Hex Head Socket
#30 Torque Wrench
Safety Glasses

Step 1:

Before you start installation please set
parking brake in vehicle and place in gear.
Chock wheels to reduce the risk of the
vehicle moving.

Step 2:

Removal of existing seat and slider from Jeep®. Locate the (4) nuts that mount the
original slider to seat riser. DO NOT THROW AWAY THE (4) NUTS. They will be
reused. Nuts are located under the seat riser mounting ledge. After removing the (4)
nuts from the seat pull the seat and slider bracket off of seat riser. There will be no
reason to remove the seat risers from the vehicle. ( Repeat for other side)

Pg.1
