Jeep® A-Pillar Switch Pod (Left or Right Side - 2011 to present JK)
Page 1of 2
p/n: 17235.58 - 17235.59
Rev (1) 1/3/2012
HARDWARE NOTE: Switch Pod has been
designed to reuse factory metal retainer
clips located on the back of factory trim
and rear tailgate wire cover. DO NOT
DISCARD clip removed from factory
A-pillar trim.
Item List:
(1) A-Pillar Switch Pod
Important! Please read instructions completely before installing Switch Pod.

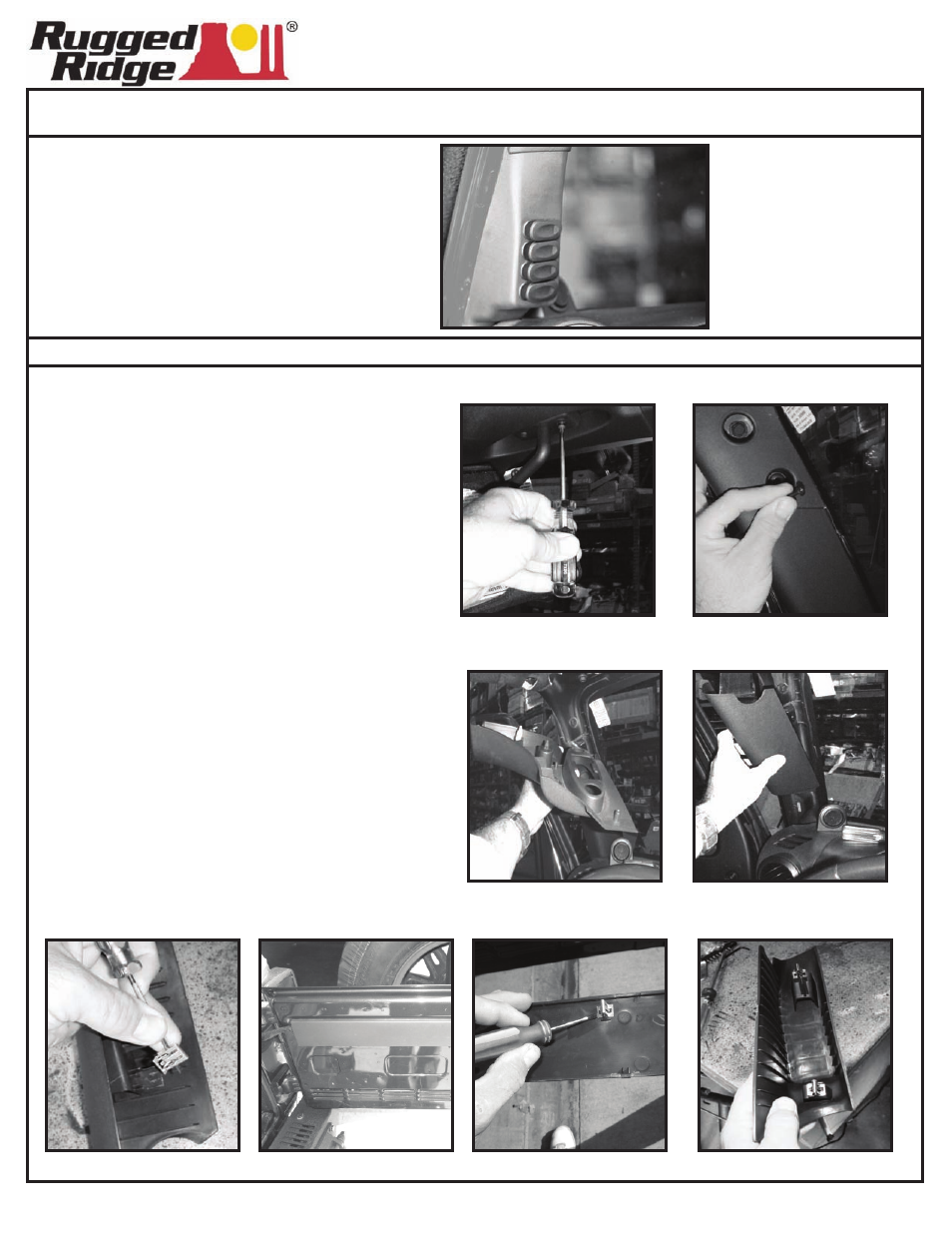

Step 1. Using T20 Torx head screw driver
remove sun visor mounting screws
(pic.1). Remove side plastic Phillips
head retainer clip from upper side
windhield trim (Pic.2). DO NOT
DISCARD. Clip will be reused.
Step 2. Remove upper trim from windshield frame
(Pic.3). Trim is held in place by a barbed
white retainer clip. DO NOT DISCARD OR
BREAK. Clip will be reused.
P/N: 17235.58 LH JK A-pillar Switch Pod
Step 3. Pop lower A-pillar trim from windshield
frame (pic.4). Using a small flat head screw
driver remove metal retainer clip from
factory trim panel (Pic.5).
Step 4. A second metal retainer clip will be needed
for new A-Pillar Pod. Open rear tailgate
and remove plastic rear wire cover plate
(pic.6). Remove center clip using a flat
head screw driver (pic.7). Reinstall rear
cover.
17235.59 RH
Switch Part Numbers
17235.01 - Amber
17235.02 - Red
17235.03 - Blue
17235.04 - Green
pic.1
pic.2
pic.3
pic.4
Step 5. Reinstall metal retainer clips onto
new A-Pillar Switch Pod (Pic.8).
Make sure clip is aligned with
plastic tabs before pressing into
place.
pic.5
pic.6
NOTE: Switches are
sold separately
pic.7
pic.8
