Rugged Ridge Inner Fender Liner Kit, 07-14 Jeep Wrangler User Manual

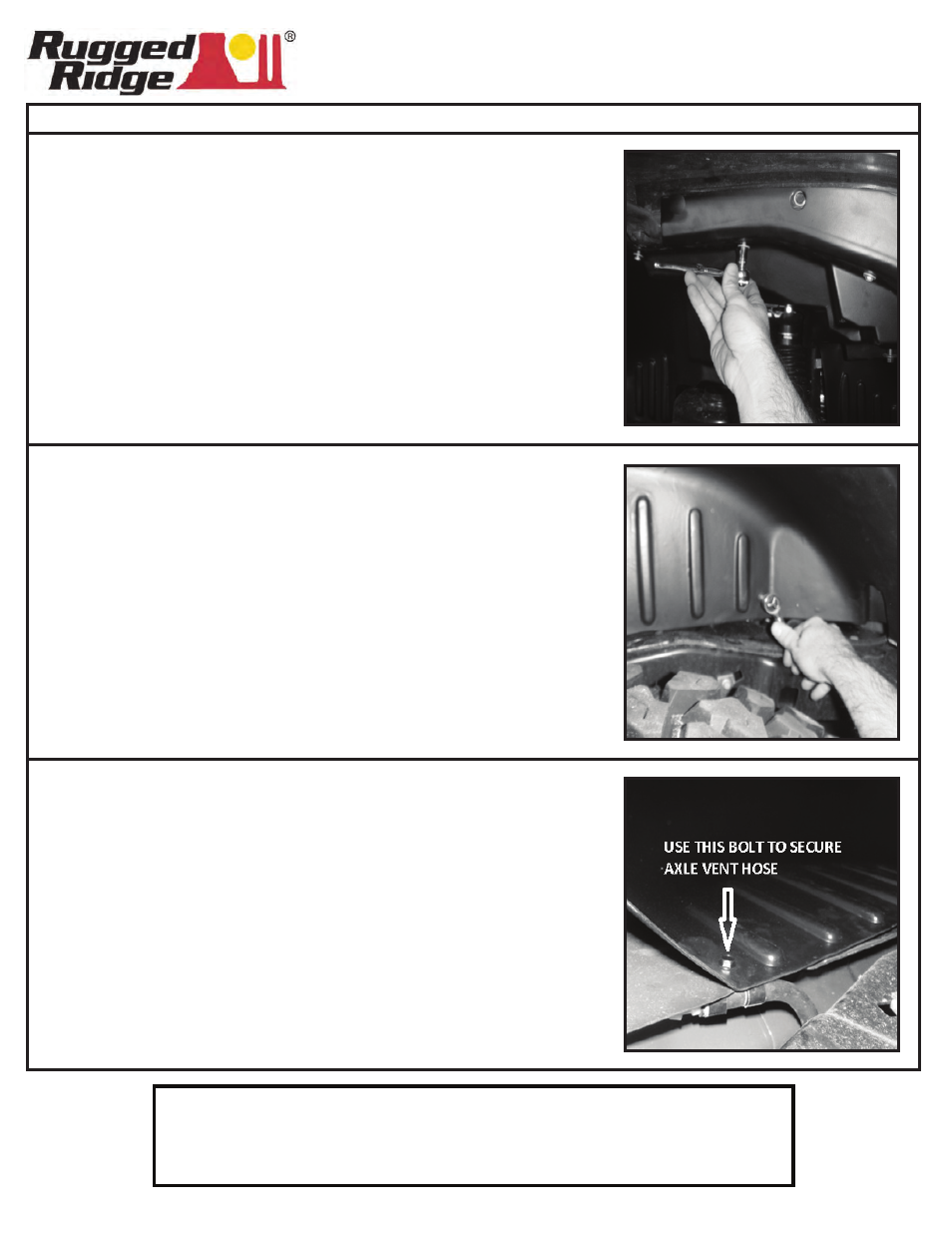

Page 2
3.
Loosely secure the Wheel Liner with the 4 factory bolts used
to mount the factory wheel liner to the vehicle. Once all holes are
lined up, fully engage push rivets and tighten all bolts. NOTICE: Do
not overtighten bolts as this could cause damage to the Liners.
Page 2 of 2
JK All-Terrain Wheel Liner Kit
11620.50
4.
If Flat Flares were previously installed, remove all bolts securing
the rear Flat Flare except for the top 2 bolts. Position Wheel Liner and
loosely install Push Rivets. Using the supplied M6 hardware, loosely
fasten the wheel liner to the vehicle using the mounting locations
provided in the Wheel Liner. Once all holes are lined up, fully engage
push rivets and tighten all bolts. NOTICE: Do not overtighten bolts as
this could cause damage to the Liners.
5.
Secure the axle vent hose with the Wheel Liner mounting
hardware on the rear passenger side. There is a hole in the plastic
clip attached to the hose for making the attachment. The hose should
be secured to the rear most mounting hole in the Wheel Liner just
above the frame rail.
For assistance, please contact Omix-ADA Technical Support department
(770) 614-6101
© Copyright 2011, Omix-Ada
