Rugged Ridge Roof Top Storage System, Small - Manual (Page 3)

Part# 12110.02 - 59200 (large) and 12110.01 – 159201 (small)
Page 3 of 3
Figure 3
Section Two – Equipped without Roof Rails
1. Place the Auto Back Pack on the vehicle’s roof, with its front facing forward and bottom side down.
2. In each corner of the Auto Back Pack, take a loose strap and pass it through a Restraining
Hook (Figure 4).
3. Secure the Restraining Hooks in the window channels of opened windows or to the rain
gutters.
Never install Restraining Hooks to plastic or glass windows. This may cause
the plastic to bend and the glass to shatter.

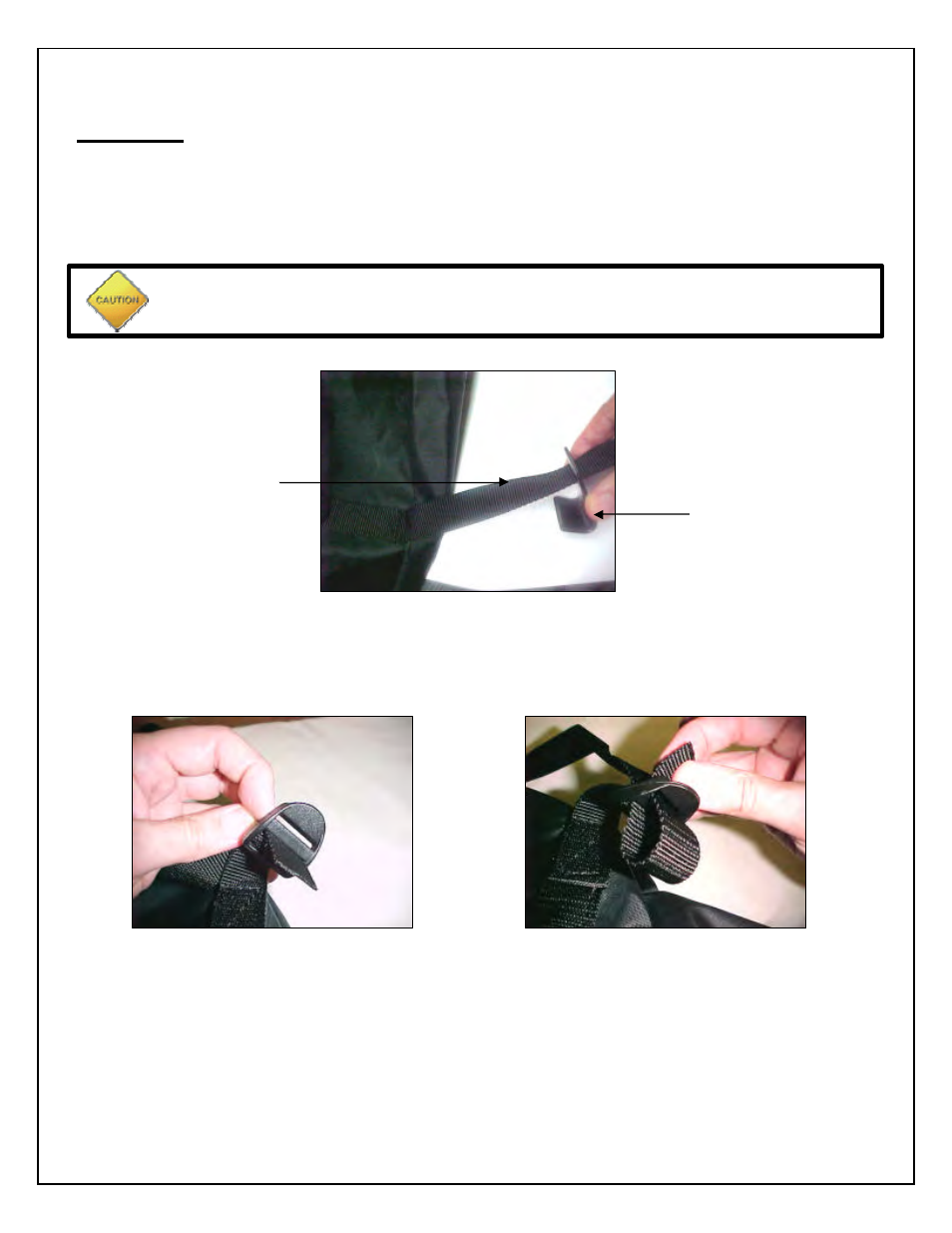

Figure 4
4. For each pair of straps:
a. Pass the loose strap through the lower connector slot as shown in Figure 1 and
through the upper connector slot (Figure 2). NOTE: Do not tighten the straps.
Figure 5 Figure 6
b. Load the Auto Back Pack.
NOTE: Do not over load the Auto Back Pack. The Standard capacity is 20 cubic feet and 30 cubic
feet for the large Auto Back Pack. Refer to you owners manual to determine the weight capacity
of the vehicles rooftop.
c. Ensure that the Restraining Hooks from Step 2 are secured onto the vehicle.
d. Tighten all four straps.
Made in China
Restraining
hook
Auto Back
Pack Strap
