Rugged Ridge XHD Low Mount Snorkel Kit, 07-11 Jeep Wrangler (JK) User Manual
Page 19
Page 19 of 23 REV.1 06/25/2012

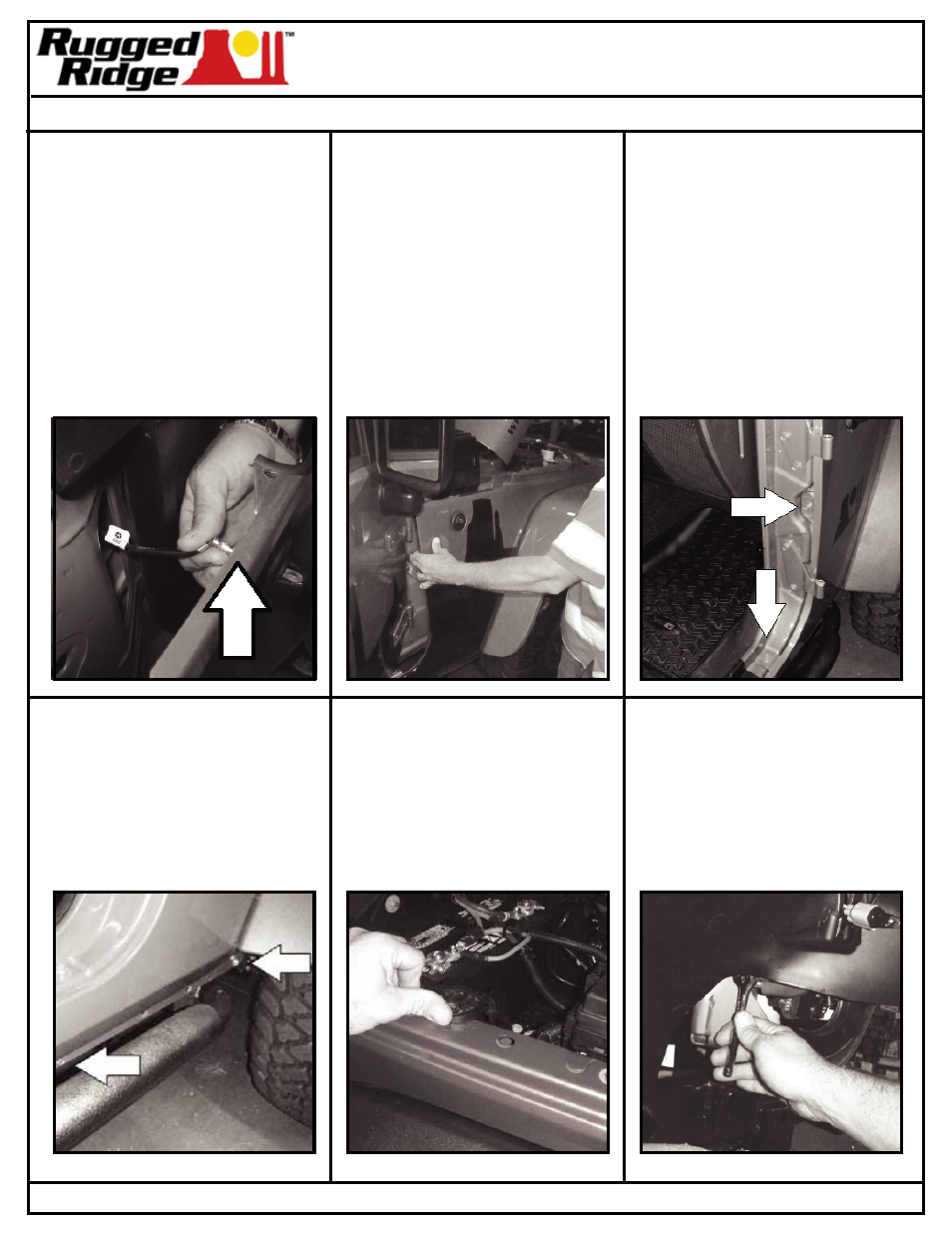

Snorkel Installation Instructions: 2007-2011 Wrangler 2DR & 4DR Unlimited
P/N: 17756.06 - Low Mount XHD Modular Snorkel System
107
- Slide fender up & over
fender support bracket
(noted in step (12).
Inspect area around
snorkel body. Fender
should fit tight to seal
but should not be forced
to align with fender
mounting holes. If
fender opening needs
to be trimmed for better
fit refer to steps (30)
through (36).
106
- Reinstall fender.
Notice: The help of a
second person is
recommended.
Before installing fender
to vehicle make sure
antenna cable is attached
to fender antenna mount.
108
- Align inner door fender
tabs with door bolts.
Slide tabs under bolts
and secure but do not
tighten at this time.
109
- Align lower fender
holes with pinch
weld mounting holes.
Reuse bolts removed
in step (15). Secure
bolts but do not
tighten at this time.
110
- Secure top of fender to
inner fender frame.
Battery tray support
will need to be lifted
to allow fender to slide
under support.
111
- Reinstall all remaining
bolts removed in steps
(8) through (13).
Secure all bolts but
do not tighten at this
time.
