11214.50 Dual Battery Tray
Applications: 1970 - 86 CJ5, CJ7, and CJ8
1987 -90 YJ Wrangler
Dual Battery Tray Installation Instructions CJ/YJ 1970-1990 (No Drill Application) Page 2

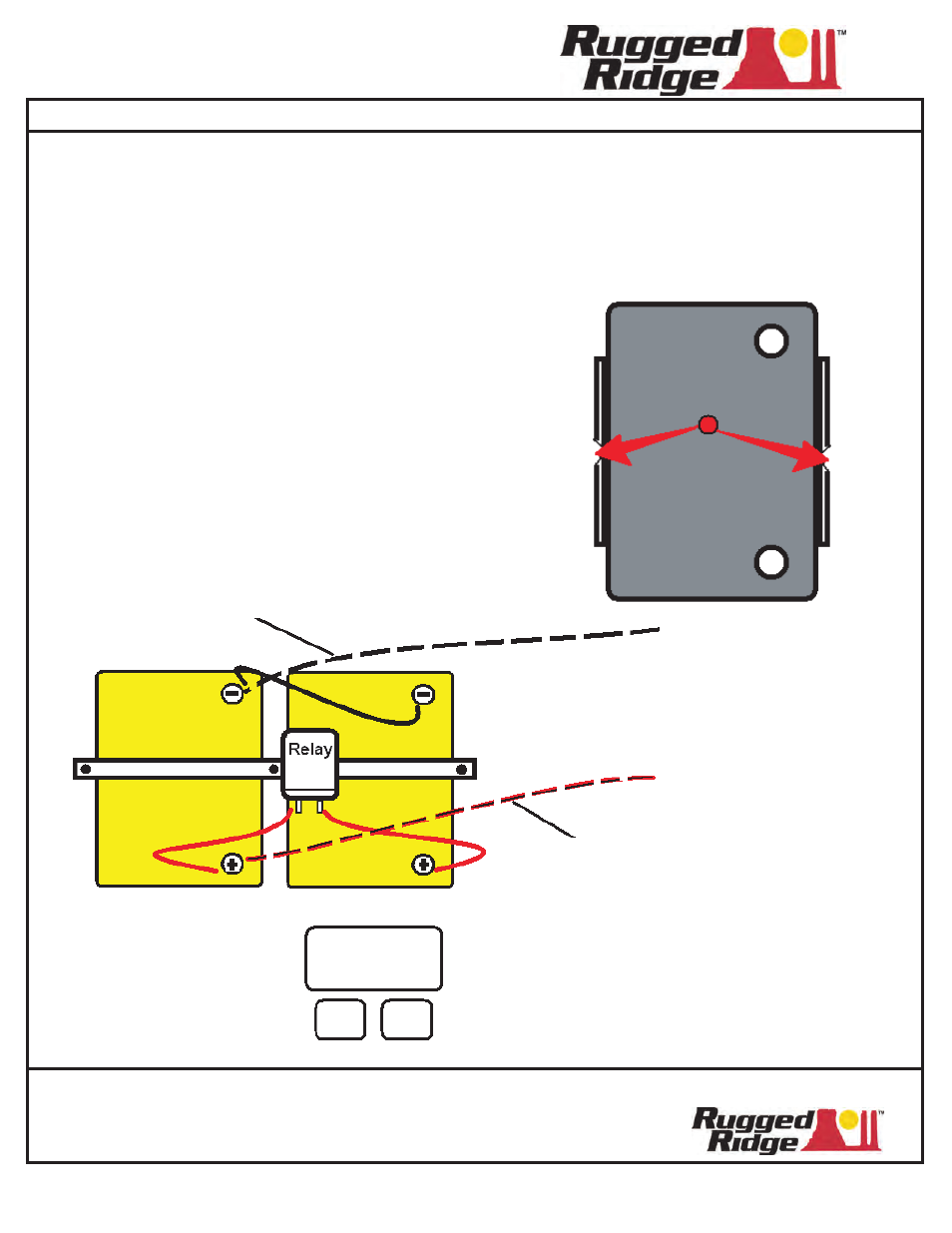

Step 10: Place one "J" hook into the
center hole of the Dual Battery
Tray.
Step 11: Insert the other two "J" hooks into
the left and right holes of the Dual
Battery Tray. The hooks should be
facing outwards, away from the Tray.
Step 12: Place batteries onto Tray. Place
Battery Retainer Bar over batteries
and align holes with "J" Hook. Place
Nylon Flat Washer and Wing Nut
onto "J" Hooks and tighten Wing
Nuts evenly. Place Red protective
caps onto the ends of the "J" Hooks.
"J" Hooks can be trimmed if needed.
Some batteries may need to have
plastic lower lips notched to allow
proper fitment.
Step 12: Install battery cables starting with
POS (+) cables first. Refer to
instructions supplied with Dual Battery
Relay for further wiring for dual
battery setups. See drawing for
possible layout.
Omix-Ada Inc.
460 Horizon Dr. Suite 400
Suwanee, Georgia 30024
Relay Relay
Diagnostic
CJ/YJ
Stock (+) Cable to Starter
Stock (-) cable to Body
Frame Ground
Main Battery Auxillary Battery
Trim Battery here
if needed
