Rugged Ridge D-Rings, Black, XHD & Custom Bumpers User Manual
Rugged ridge® xhd bumper d-rings
Rev. 10/11
Page 1 of 1
SB
For Technical Assistance Contact:
Omix-Ada Tech Support
Phone: 1-800-449-6649
Email: [email protected]
Web: www.Omix-Ada.com
Copyright Omix-Ada 2011
11540.20

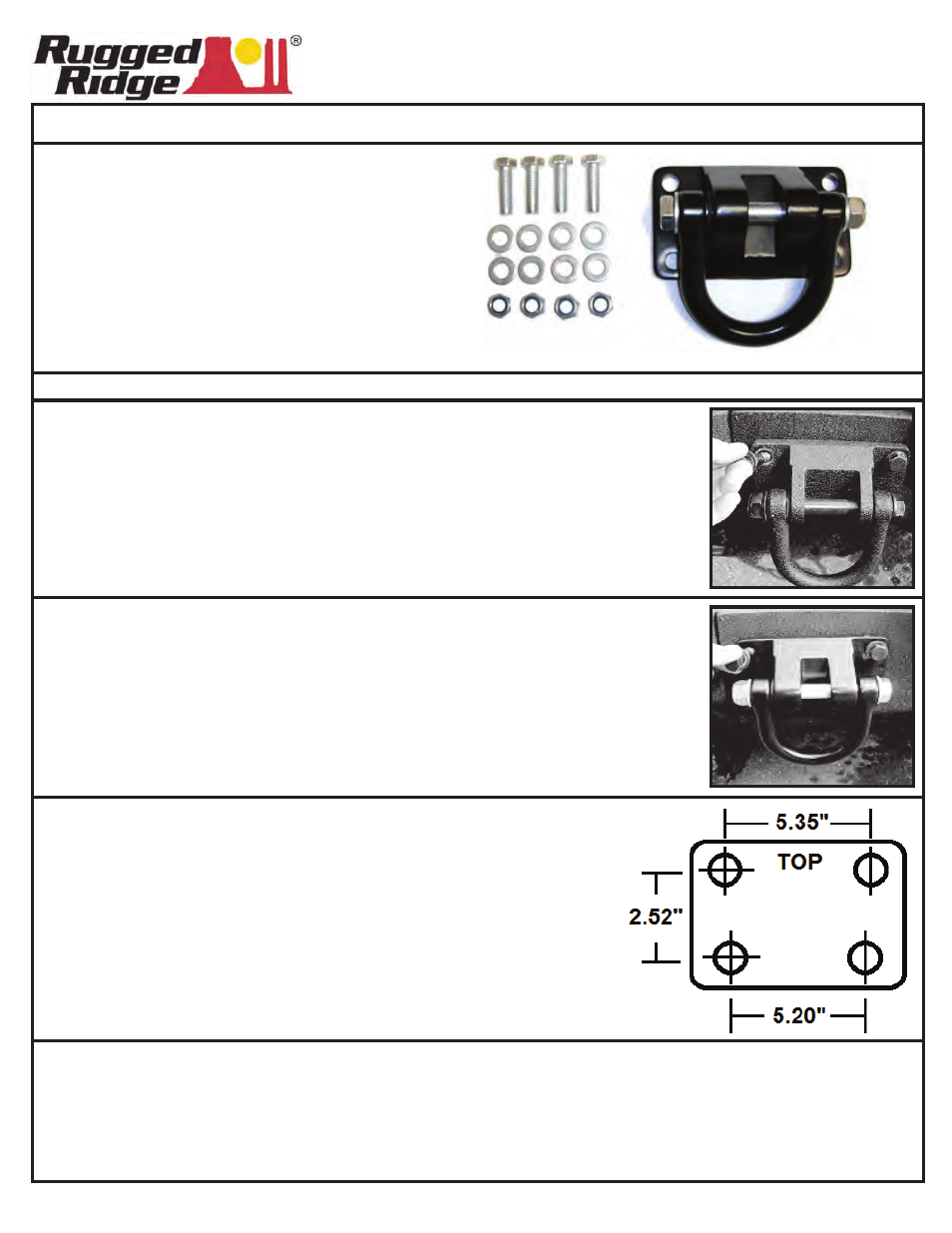

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE YOU BEGIN.
Rugged Ridge® XHD Bumper D-Rings
XHD Bumper D-Ring, Pair, smooth black finish,
Rugged Ridge, Jeep CJ5 1976-83, CJ7 1976-86,
CJ8 1981-86, Wrangler 1987-2012 and also for
custom applications.
For use with the following direct fit XHD bumper systems:
11540.10, 11540.11, 11540.71, 11546.10, 11546.20, 11546.40, 11547.01,
11541.01, 11541.02
Step 1. Remove the 4 M12 bolts from the D-Ring that secures it to the bumper.
Do not discard the hardware. It will be reused.
Step 2. Align the new D-Ring with the holes in the XHD bumper and fasten using
the existing hardware.
For use with non XHD bumpers/custom applications:
Step 1. Drill four 1/2” mounting holes using the spacing
specifications provided. Note that the top holes have
wider spacing than the bottom.
