Rugged Ridge Bumper Mounted Light Bar, Stainless Steel, 07-14 Jeep Wrangler (JK) User Manual
09 jk wrangler light bar

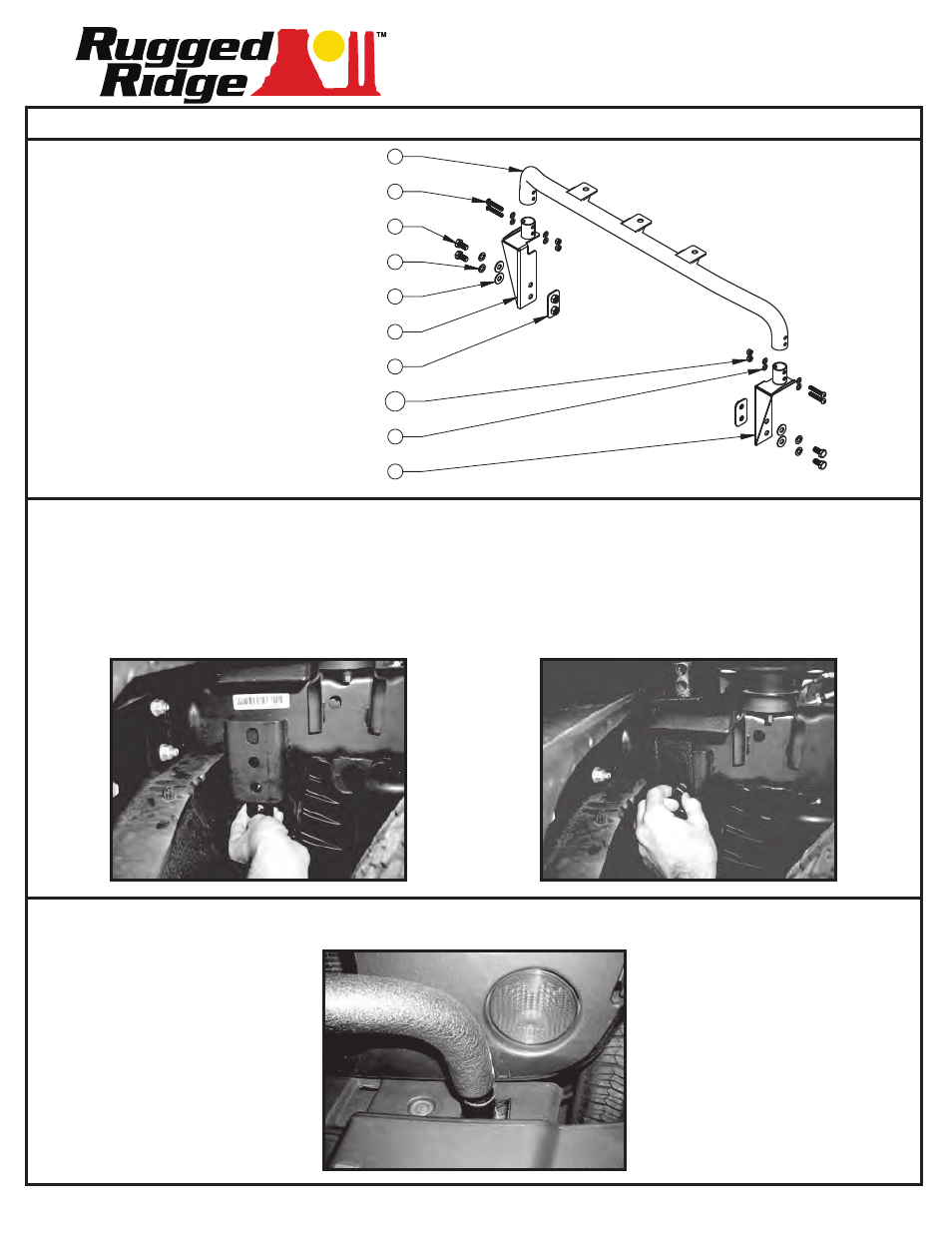

Contents:
1. Light Bar (1)
2. Left Side Bracket (1)
3. Right Side Bracket (1)
4. M12 Hex Bolt (4)
5. M12 Flat Washer (4)
6. M12 Lock Washer (4)
7. Nut Plate (2)
8. M8 Button Head Bolts (4)
9. M8 Flat Washer (8)
10. M8 Nylock Nut (4)
11. Hex Key (not shown) (1)
2. Place light bar over the tube sleeves of both the Left and Right Side Brackets. Adjust the brackets
as necessary to accommodate the tube.
1
2
3
4
5
7
8
9
10
6
1.
07-09 JK: Locate the two frame mounting holes behind the bumper on the left side of the vehicle. Slide
the Nut Plate behind the two holes. Use the M12 Hex Bolts, Lock Washers and M12 Flat Washers to secure the
Left Side Bracket to the frame as shown. Do not fully tighten the bolts at this time. Repeat for right side.
2010 JK: Install the Left Side bracket using its bottom hole and hand tightening only. Align the bracket
vertically and mark the upper hole location. Remove the bracket and drill 1/2” hole. Install bracket as noted
above. Do not fully tighten the bolts at this time. Repeat for right side.
Page 1 of 2
11232.20,11138.20
07-09 JK Wrangler Light Bar
