Rugged Ridge XHD Light Mount Front Bumper, Stainless Steel, 07-14 Jeep Wrangler User Manual
Page 2

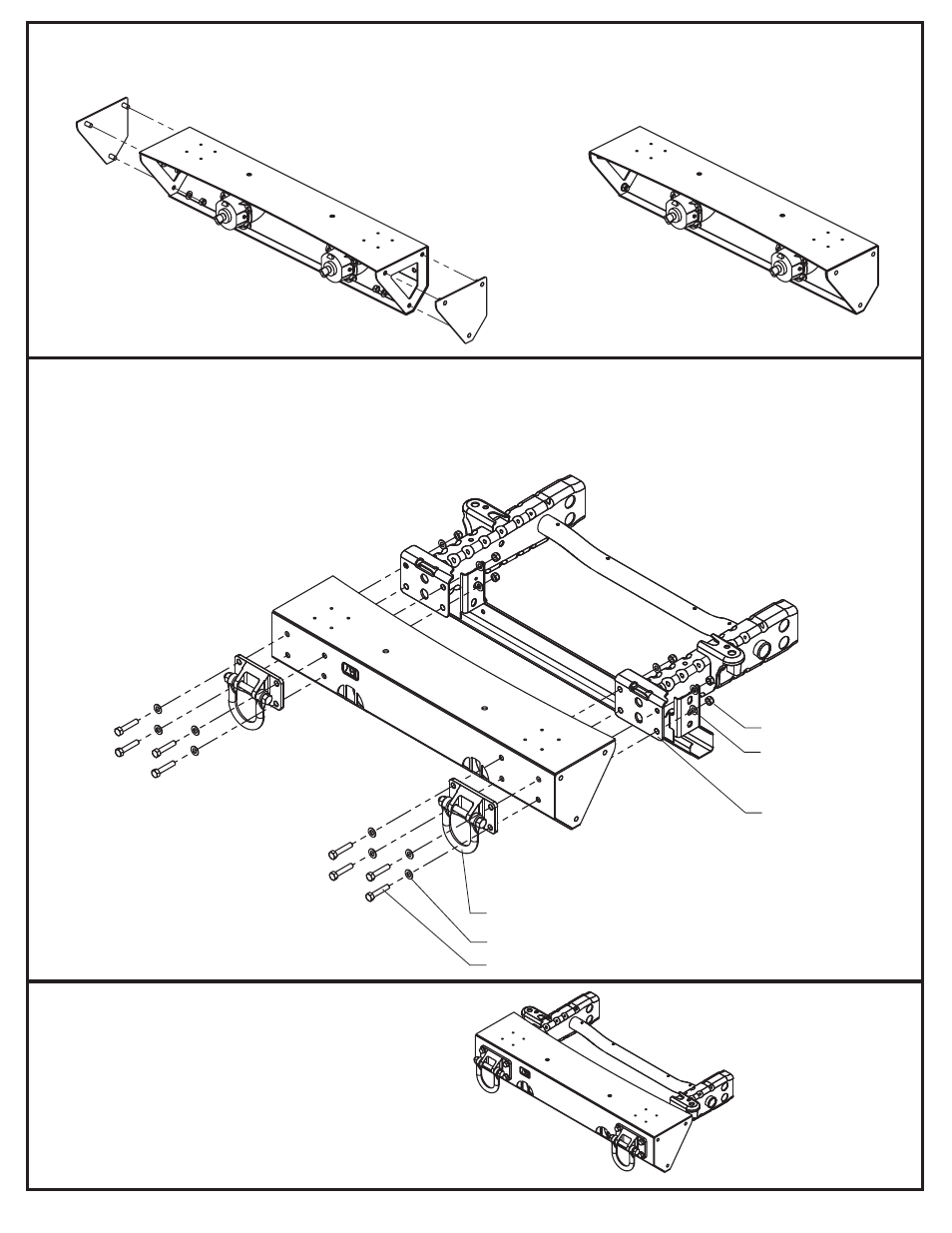

3. Install Ends using (3) 12mm washers and (3) 12mm lock nuts per side (Figure 3a). Once all nuts
have been started, tighten them (Figure 3b).
Note - if installing optional ends, substitute them for the Stubby Ends shown.
Page 2 of 3
Figure 3a
Figure 3b
4. Place Center Section of Bumper onto the frame rails and then install the 12mm bolts (8), 12mm
washers (8), D-Rings (2), more 12mm washers (8), and 12mm Lock Nuts. Don't tighten any of the
fasteners yet. When installing D-Rings, note that the holes that are further apart should be on top.
Note - If installing Stinger (11540.13) or RRC Hoop (11540.18) D-Rings will not be used.
See instructions for those products at this point.
M12 Bolt
M12 Washer
D-Ring
Frame Horn
M12 Washer
M12 Lock Nut
5. Tighten (8) bolts that were installed in Step 4.
