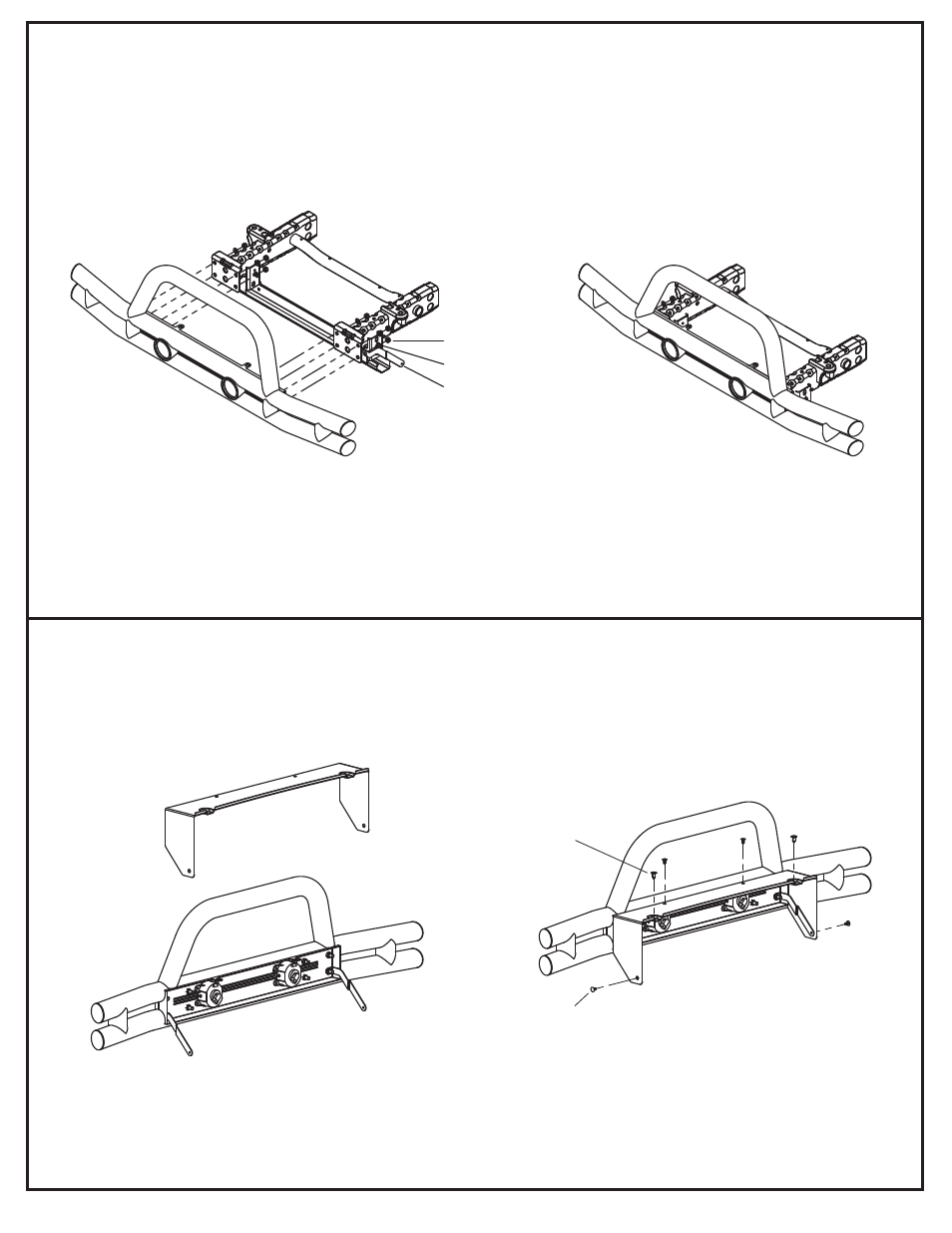

3. Position Tube Bumper with the 12mm studs facing the vehicle. These studs go through the 8 holes
on the front of the frame rails. Place bumper onto vehicle and install 12mm washers and locknuts.
Install Brackets on lower outside studs, behind frame rail, as shown. Tighten Lock Nuts, ensuring
that the Brackets are not rotated out of vertical.
Figure 3a Figure 3b
Bracket
12mm Washer
12mm Lock Nut
4. Position Cover Plate over the Tube Bumper (Figure 4a). Drop it over the frame rails (not shown
for clarity) and fasten in 4 places with supplied Push Fasteners. Re-use original fasteners on two
recessed areas closest to grille.
Figure 4a Figure 4b
Push Fasteners
OE Fasteners
