Rugged Ridge Standard Bumper Ends, XHD Modular Front Bumper - Manual

11540.12
Jeep
®
JK Wrangler Modular HD Front Bumper Extended Ends
Contents:
1. Left Extended End (1)
2. Right Extended End (1)

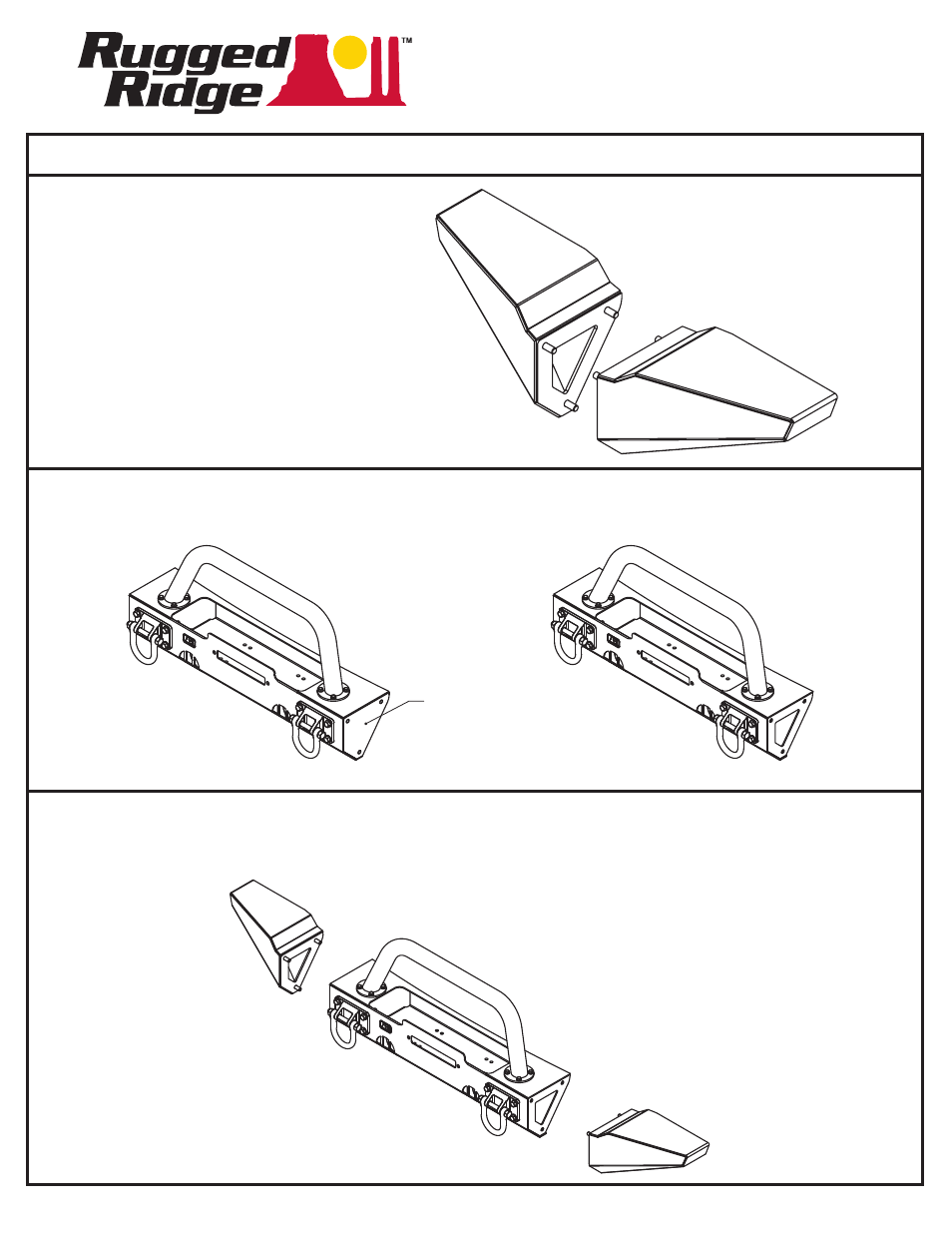

1. Extended Ends are easier to install with the Center Section of Modular HD Bumper off of the vehicle,
but can be installed with the Center Section already installed. If Extended Ends are replacing
previously installed Stubby Ends (Figure 1a), remove them so that empty ends remain (Figure 1b).
2. Position Extensions to the ends of the Center Section, aligning the studs in the Extensions with the
holes in the sides of the Center Section (Figure 2a). Insert the studs in the Extended End into the
holes in the Center Section and secure them with the nuts that came with the Center Section.
Page 1 of 2
Figure 1b Figure 1a
Remove
