Rugged Ridge XHD Rear Bumper, Textured Black, 07-14 Jeep Wrangler - Manual (Page 2)

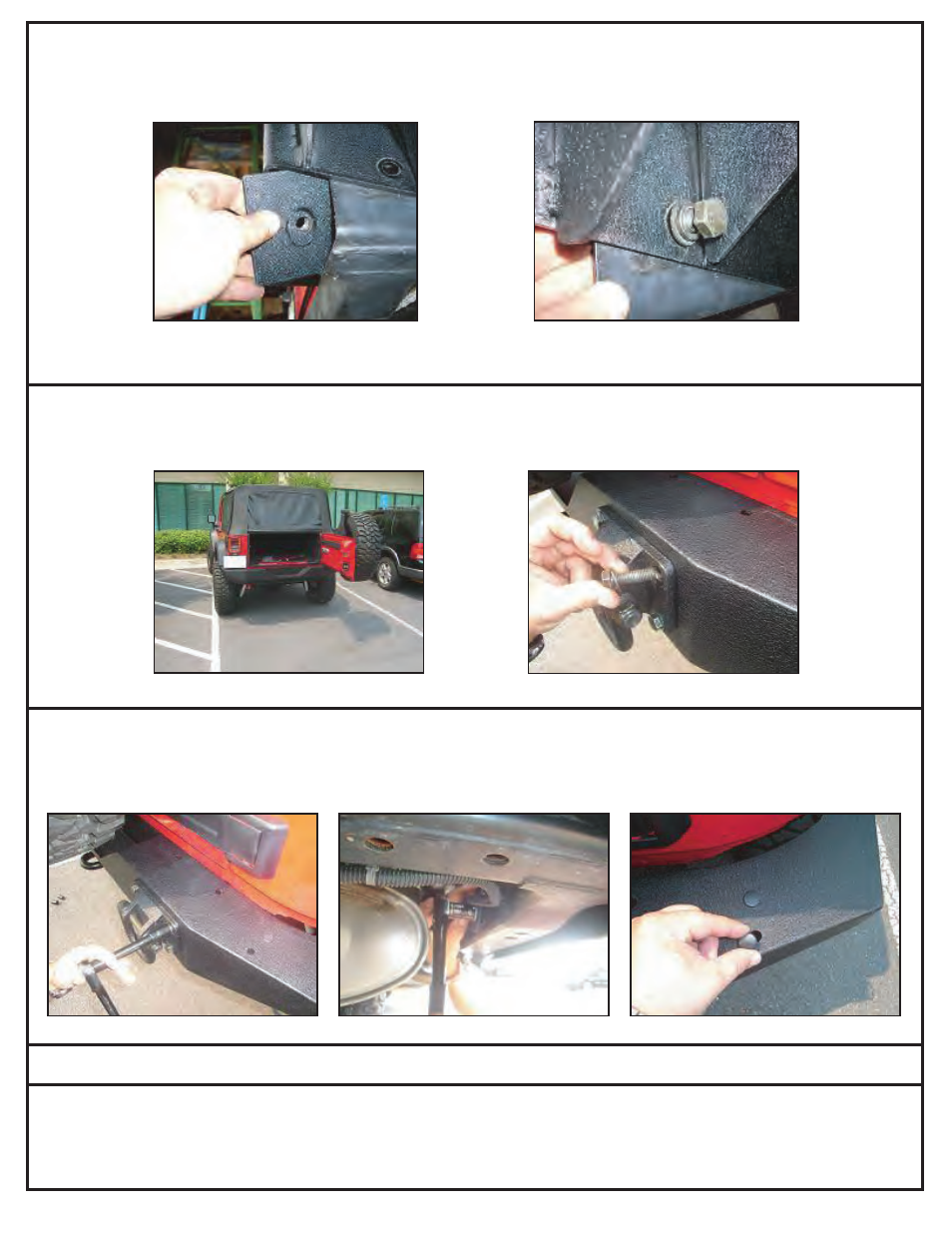

4. Set Bumper onto Brackets. It may be necessary / helpful to open the door so that the spare tire
does not interfere with installation (Figure 3a). Install D-Rings using 12mm Bolts and Washers.
Do not tighten bolts yet.
Figure 4a
5. Tighten 8 bolts that hold D-Rings to the Bumper and Brackets (Figure 4a), then tighten 6 original
bolts that hold the brackets to the vehicle (Figure 4b). Finally, tighten bolt that was installed in Step 3.
Install caps in unused holes on top of bumper unless you are installing the 11546.22 Tire Carrier at
the same time (Figure 4c). Installation is now complete!
Page 2 of 2
Figure 5a
Figure 4b
Congratulations on the purchase and installation of a quality Rugged Ridge product!
Figure 5b Figure 5c
3. Insert Nut Plate into right frame rail as shown (Figure 3a). Hold in place while installing 12mm Bolt
and Washer through side of Right Bracket (Figure 3b). Do not tighten bolt yet.
© Copyright 2008, Omix-Ada
Omix-Ada Inc.
460 Horizon Dr. Suite 400
Suwanee, Georgia 30024
Figure 3a Figure 3b
