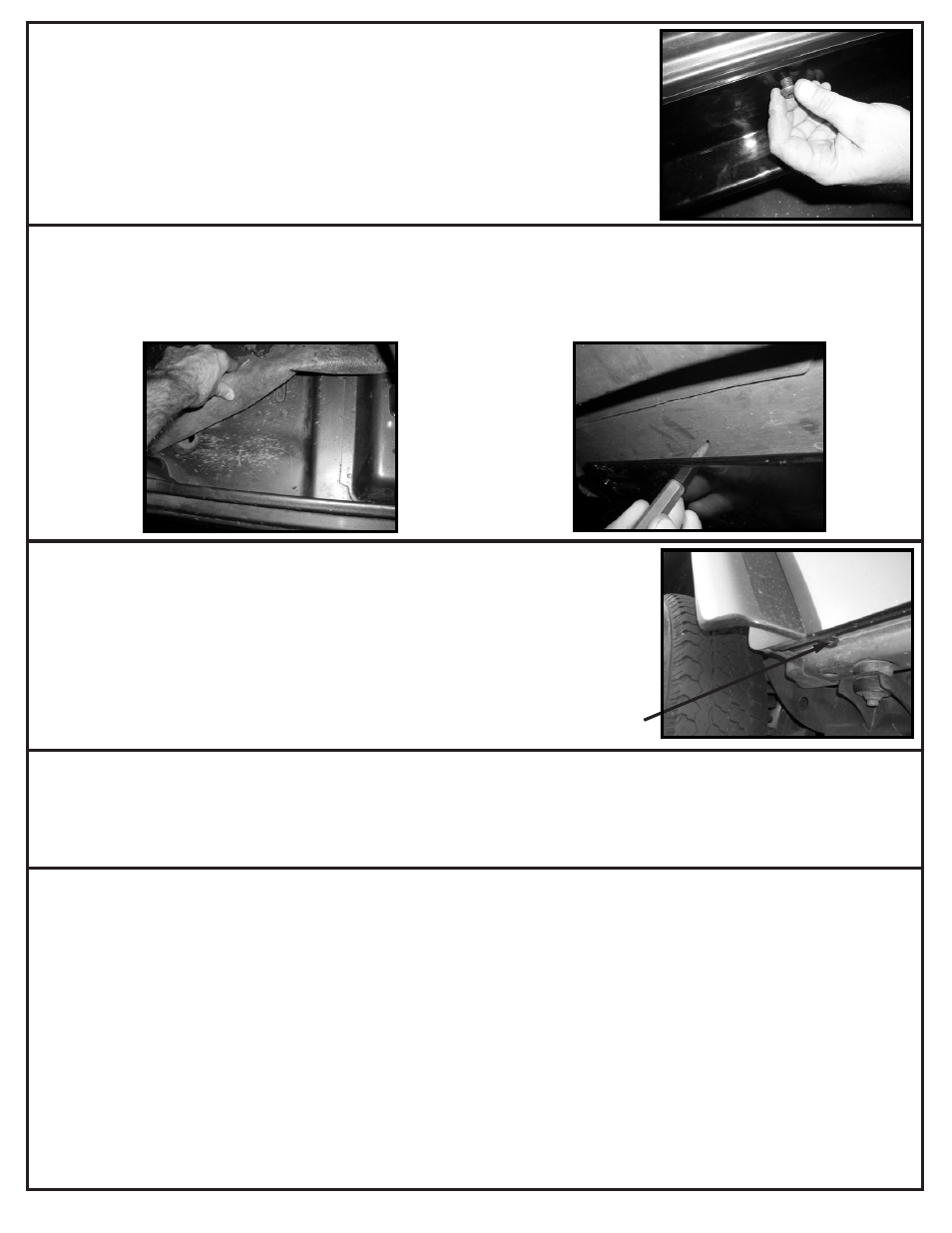

4. After drilling the side holes, place the rocker panel against the side of
the vehicle and use the 10mm black button head bolts with flat washers, and
standard nuts on the inside of the vehicle. Do not use the lock washers yet as
the rocker panel will be removed after marking the bottom holes. Hand tighten
bolts evenly to secure the rocker panel in position.
5. To mark the three bottom holes, stick a black marker through each hole and mark the vehicle making sure
the mark is aligned vertically with the hole. Remove the rocker panels after the three bottom holes are marked.
Use a center punch to mark each bottom hole so that from inside the vehicle, you can tell where the hole will be
located. Before drilling, pull carpeting back and remove anything that might get in the way of the drill. Drill the
three bottom holes to 7/16” .
7. Re-install the rocker panel by using the 10mm button head bolts with flat washers, lock washers, and
standard nuts for the side mounting holes. For the bottom three mounting holes, use the three hex head bolts
with washers, spacers and Nylock nuts. The 10mm medium bolt goes in the bottom front hole with the 25mm
spacer and the 2 long bolts go in the bottom rear two mounting holes with the 45mm spacers. Make sure all
bolts are tightened adequately before operating vehicle.
Rugged Ridge Limited Warranty
Applies to Rugged Ridge Products by OMIX- ADA Inc.
Please find warranty card supplied with product for more information. Warranty card
should be filled out and returned to address listed below.
OMIX-ADA Inc.
460 Horizon Dr. Suite 400
Suwanee, Georgia 30024
TM
6. Locate the 4 mounting slots in the rocker panels that line up with the
holes in the body mount tabs shown. Use the 6mm hardware to bolt the
rocker panels to these 4 tabs being sure to use the small 6mm washer on top
of the mounting tab and the large 6mm washer between the bolt head and
the rocker panel.
BODY MOUNT TAB
