Chapter 1 Introduction
Internet Light
When the Internet light glows steadily, the Router is connected to the
DSL pro-
vider via an Ethern et c able/DSL modem.
Wireless Light
The Wireless light illuminates when the Router is connected wirelessly.
Ethernet Lights
The Ethernet lights illuminate when the Router is connected via one or more of
its Ethernet ports.

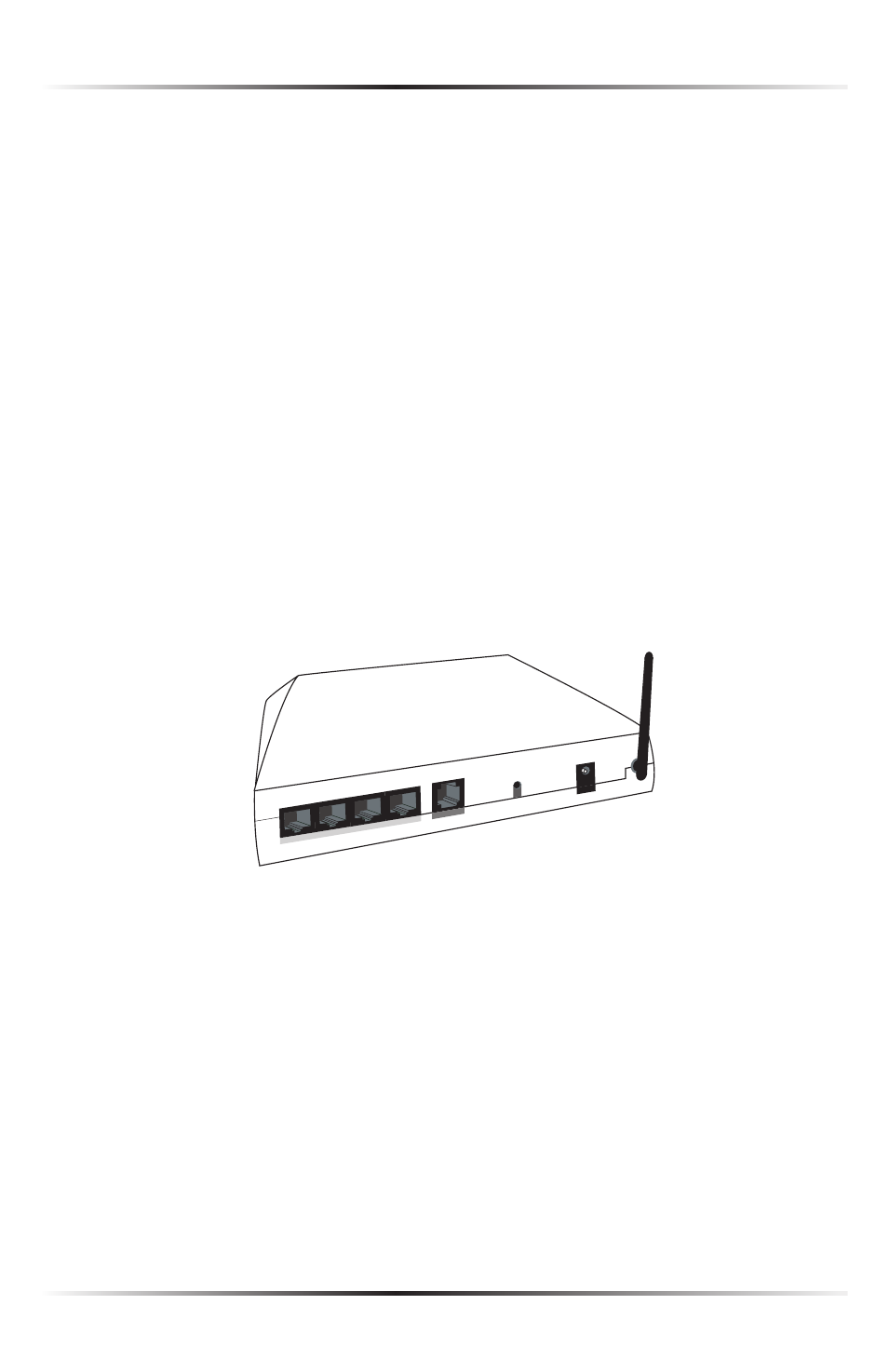

Rear Panel
The rear panel of the Router contains six ports (Ethernet [4], Cable/ DSL , and
Power), as well as a Reset switch.
Power
Ethernet 4
Reset
Cable/DSL
Ethernet 3
Ethernet 2
Ethernet 1
Ethernet Ports
The Ethernet ports are used to connect computers to the Router via Ethernet
cable. The Ethernet ports are
10/100 Mbps auto-sensing ports, and either a
straight-through or crossover Ethernet cable can be used when connecting to
the ports.
