2
1
Put the motorcycle on a workstand so that the
rear wheel barely touches the ground.
2
Remove the original shock absorber.
3

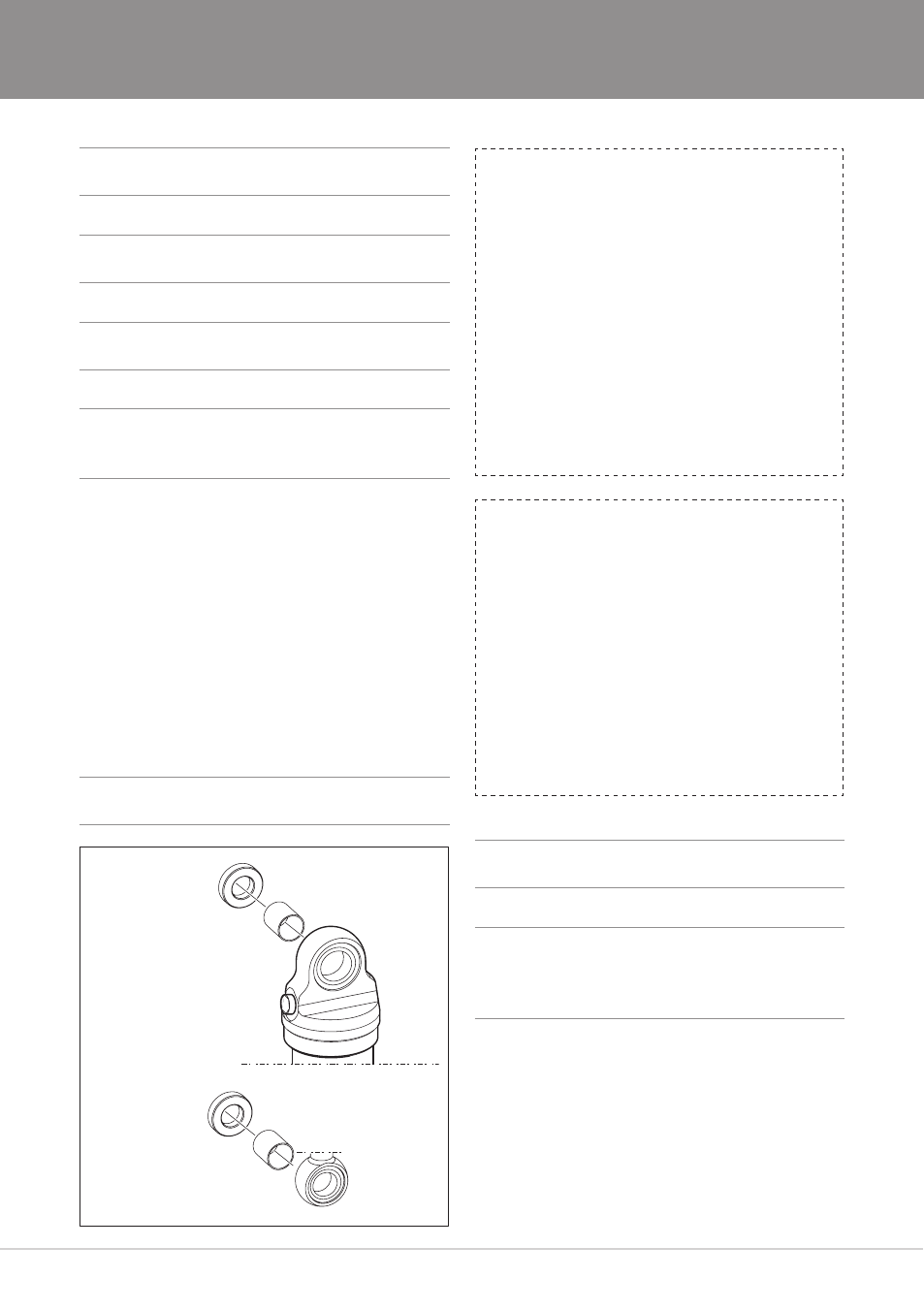

Use the sleeves (00123-13) and washers
(03118-08) in the end eye according to the
figure.
notee!
1
If the swingarm/frame and/or aftermarket accessories
cause misalignment, use washer(s) (03118-08).
MounTing inSTrucTionS
arninge! ⚠
It is advisable to have an Öhlins dealer install the shock
absorber/front fork/steering damper.
arninge! ⚠
If working on a raised vehicle, ensure it is securely
supported so that it will not tip.
notee!
1
Before mounting this product clean the vehicle
thoroughly.
notee!
1
When working on this product, always see the Vehicle
Service Manual for vehicle specific procedures and
important data.
MY 1986-2008
1
Use the two metal brackets with flange edge
on the lead side. Install the brackets on the
support brackets. Use the original threaded
holes and the original bolts.
2
Fasten the plastic mounting brackets with
the screws and nuts provided in the kit.
Use the stainless steel clamps to fasten the
bracket to the reservoir according to the
figure.
MY 2009 and forward
1
Use the two rubber brackets. Place the rub-
ber mounts on the rear saddlebag support to
fit the reservoir.
2
Place the stainless steel clamps over the
rubber reservoir mounting brackets and the
rear fender bracket support according to the
figure.
notee!
1
Lower the vehicle so that the suspension is slightly
compressed before tightening the screws.
cautione! ✋
Ensure that all screws are tightened to the correct
torque and that nothing fouls or restricts movement of
the shock absorber/front fork/steering damper when the
suspension is fully compressed or extended.
washer 03118-08
washer 03118-08
sleeve 00123-13
sleeve 00123-13
wheel side
end eye
cylinder
head
