BMW S 1000 RR (10-12) 5” Window Link Set (#240733) Installation Instructions
Please read thoroughly before beginning installation. A factory service manual should be consulted for any
information not provided here.

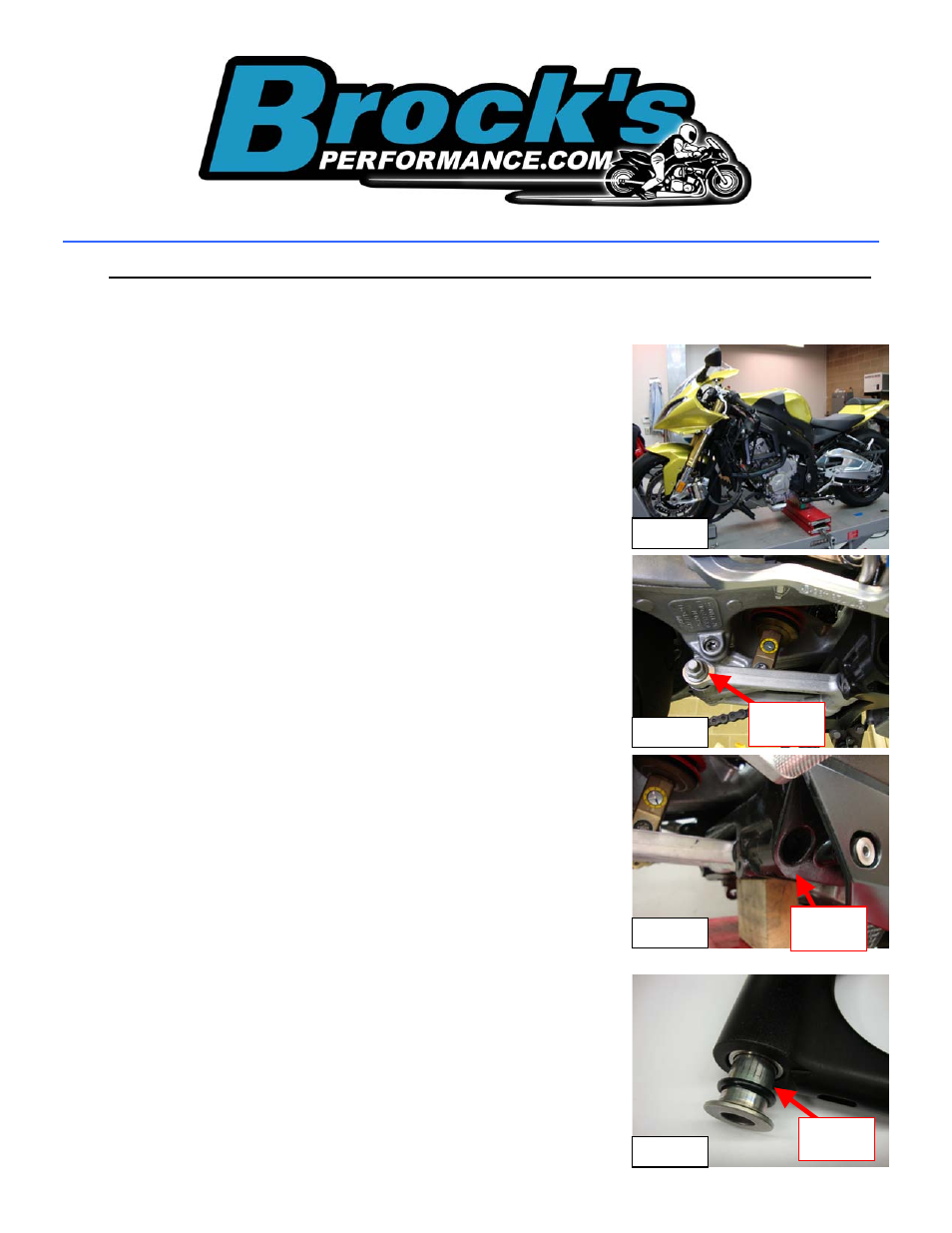

1. Place bike on a lift or swing arm stand to securely support it.
The bike
must be supported securely to prevent it from falling over and causing
injury or damage. See Figure 1.
2. Remove the muffler and catalytic converter, if equipped. Some
aftermarket exhausts may need to be removed to allow clearance to
place a jack under the frame.
3. Remove the nut retaining the linkage to the pivot lever. See Figure 2.
4. Place a jack under the frame behind the engine with a block of wood to
protect the frame. Raise the jack until the linkage bolt is free and can be
removed by hand. See Figures 1 & 3.
5. Remove front bolt retaining the link to the frame and remove the stock
link. See Figure 3.
6. Remove the two (2) inner bearing races from the stock link. Apply grease
(Multi-Purpose Lithium grease will work well) to the supplied o-rings and
install the o-rings, one (1) onto each of the bearing races. Apply grease
to each bearing race and slide them into each side of the Brock’s
Performance billet link end. See Figure 4.
Brock’s Performance Products • 4064 E. Patterson Road • Dayton, OH 45430 • Phone: 937-912-0054 • Fax: 937-912-0062
Figure 1
Figure 2
Figure 3
Figure 4
Apply
Grease
Bolt in
Frame
Remove
Nut
