end of the head pipe. Then repeat to the other side.

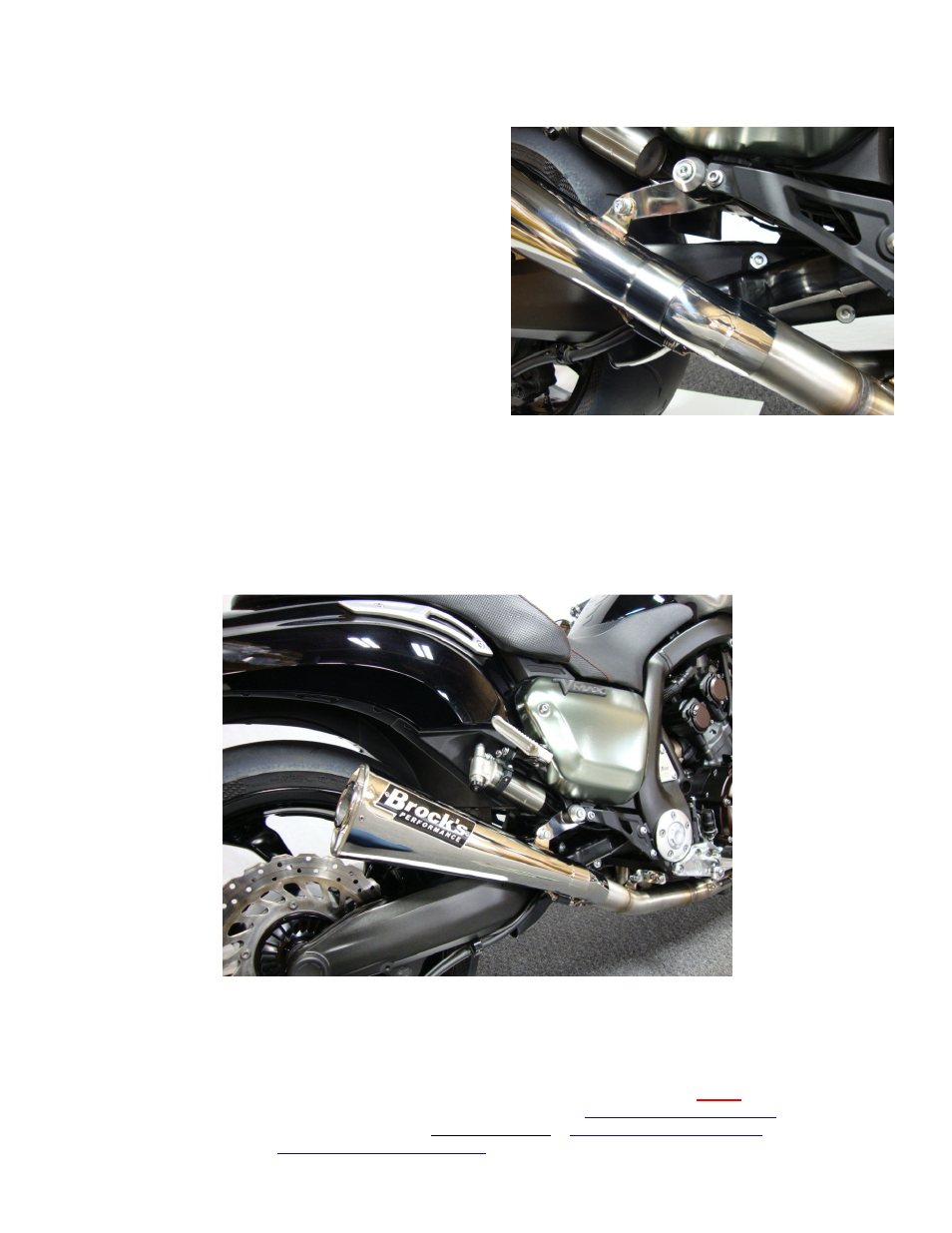

INSTALL MID-PIPE, MUFFLER, AND BRACKET
Slip the mid-pipe over the secondary collector and secure with
one (1) spring. Attach the bracket to the stock mounting
location with the original mounting bolt; the small hole is only
clearance for the stock trim mounting bolt. Slide the muffler
onto the mid-pipe and install one (1) spring. Attach the muffler
mounting tab to the bracket with the supplied bolt, washers,
and nut. It may be necessary to rotate the mid-pipe and
bracket small amounts to get the holes aligned. Check that all
joints are fully engaged and there is clearance around the pipes
then proceed to tighten all the fasteners and downpipe clamps.
CLEAN SYSTEM OF FINGER PRINTS
With any exhaust system you must clean all finger prints off before starting the motorcycle to insure there will not be
finger prints “burned” into the pipe. Carefully use alcohol, brake clean, etc. to clean the system.
ADDITIONAL
Install the Power Commander V and appropriate map for your application.
Brocks Performance Products are designed for Closed-Course Race Track use ONLY.
Brocks Performance Products policies and warranty information: www.BrocksPerformance.com
For additional information: Check our Information Forum at www.BrocksPerformance.com
E-mail [email protected] or call the Order Line 937-912-0054.
