Brocks Performance Alien Head 2 Full System 14" Muffler ZX-10R (11-14) - Manual (Page 6)

Document ID 993210
Page 6 of 7

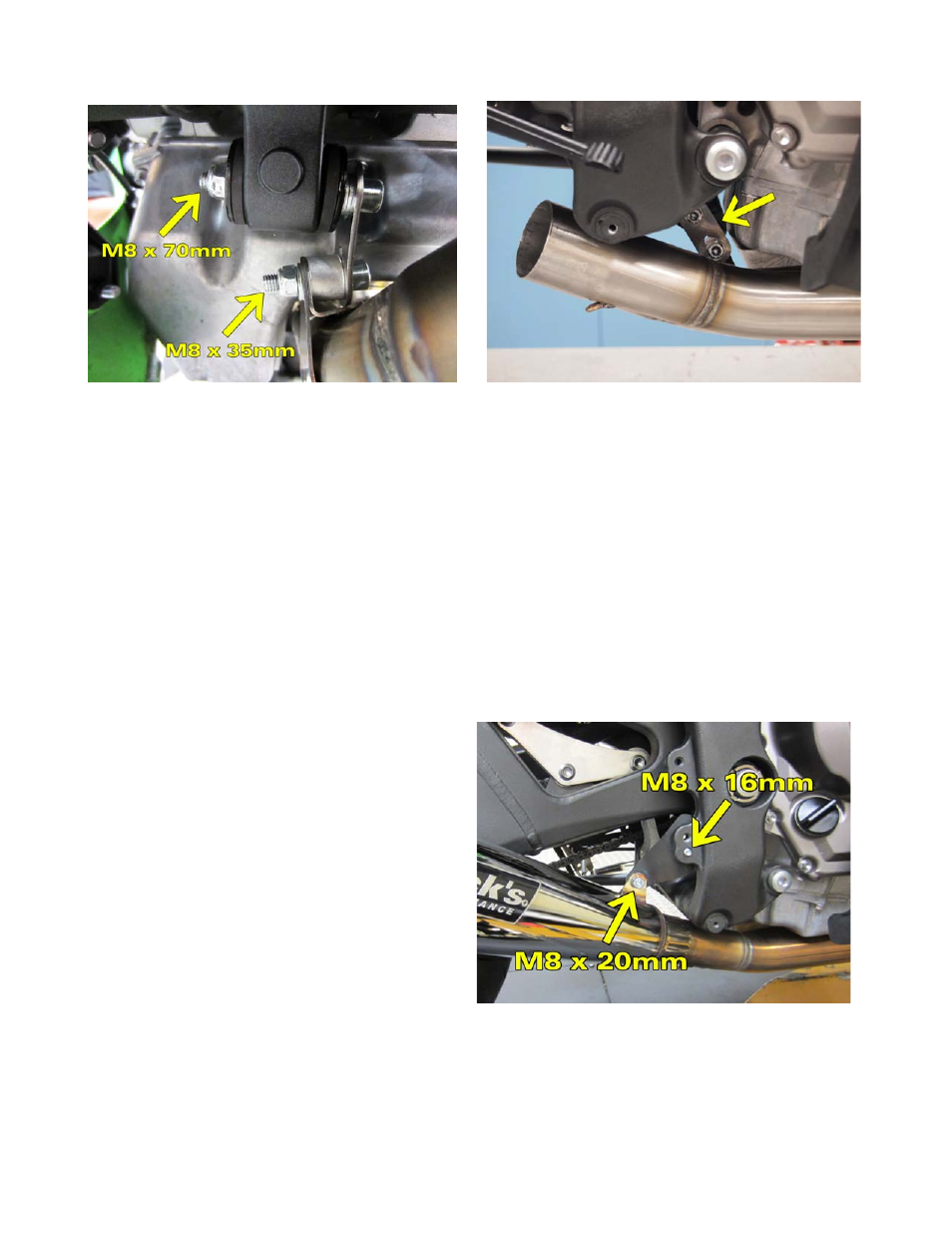

Figure 11 Figure 12
STEP 9: Install Muffler (Figure 13)
• Install the larger mounting bracket prior to installing the muffler. The bracket goes on the inside of
the frame behind the rear set (foot peg) and is held in place by installing the supplied M8 x 16mm
bolt from the inside as well. The bolt will be installed in the bottom rear set mounting hole. The rear
set has been removed for clarity (Figure 13).
• Install the muffler onto the collector. Adjust as necessary to ensure that the mounting bracket lines
up with the muffler mounting tab. Insert the supplied M8 x 20mm bolt through the muffler tab and
mounting bracket and hand tighten. Install the spring holding the muffler to the collector. ‘Wiggle’
the system to insure fitment and then tighten the bolt holding the collector to the smaller bracket.
Finally, tighten the bolt holding the muffler to the larger bracket.
• Torque the muffler-mount bolt to 34 N-m or
(25 ft-lb). Reattach the radiator to the lower
radiator bracket with the OEM (6x22mm) bolt
and torque to 9.8 Nm or (87 in-lb).
• Re-install the fairings in the reverse order that
they were removed.
(See Caution On The Next Page.)
Figure 13 ------------------------->
