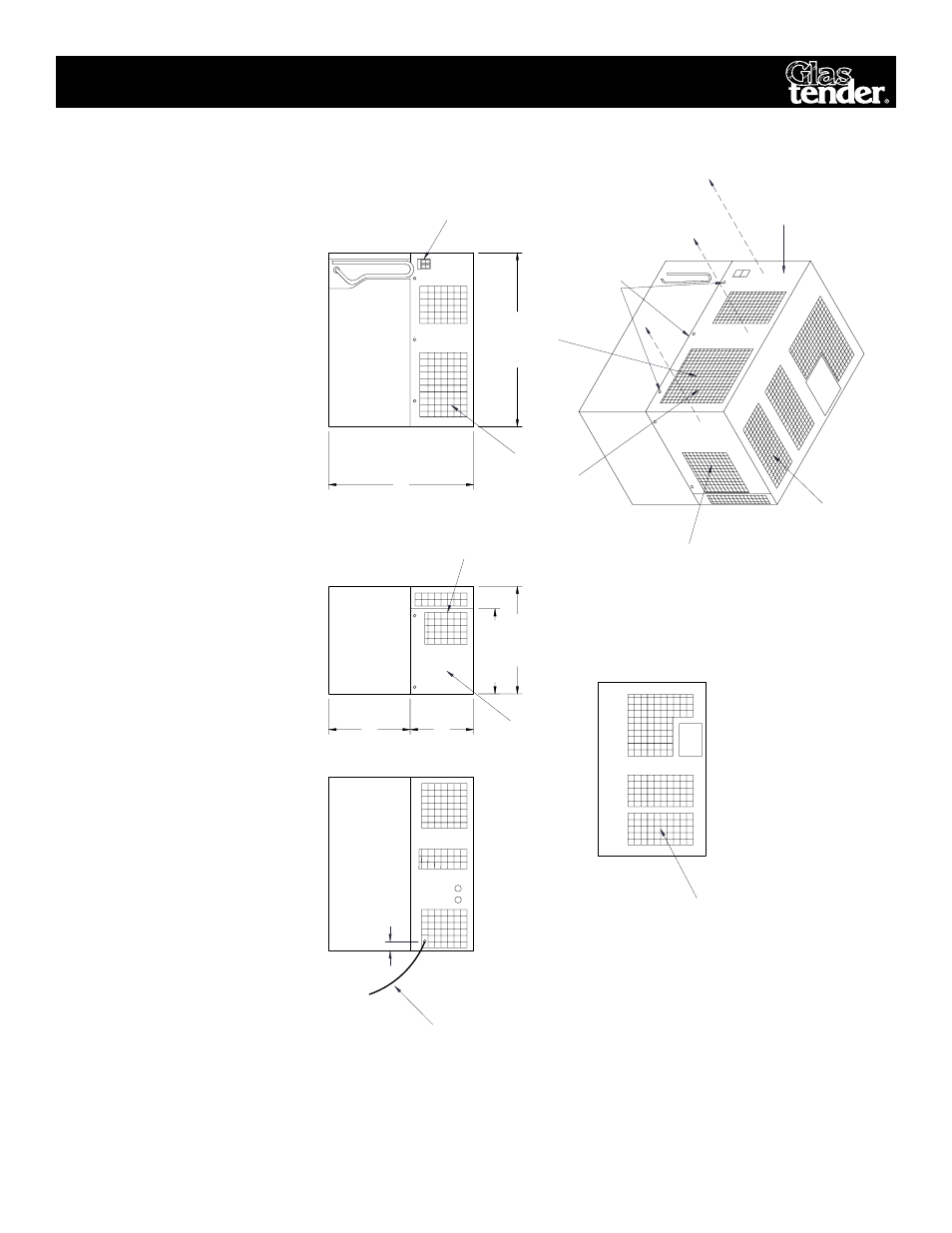

PeCifiCations
NOTE:
Air flow & proper ventilation required
for compressor
12” gap on sides for ventilation & to remove cover
,
3” gap in rear for recirculation
line hook-up, and 20”
gap on top for ventilation
and servicing.
Top, front, & sides are one piece and are removable
for servicing the compressor
.
1.625"
Air Intake
On/Off Switch
Compressor Area (Under cover)
Exhaust
Exhaust
Exhaust
Exhaust
Electrical Cord & Plug
Removable
Cover-Pull
towards you
to remov
e Screws to
remove cover
Air Intake
Removable Cover
FRONT
SIDE
REAR
TOP
26.75"
16.50"
22.25"
ISOMETRIC
14.375"
10.125" 12.125"
allow 20" clearance above unit to service compressor
note: compressor failure due to restriction
or blockage of air flow will void warranty.
