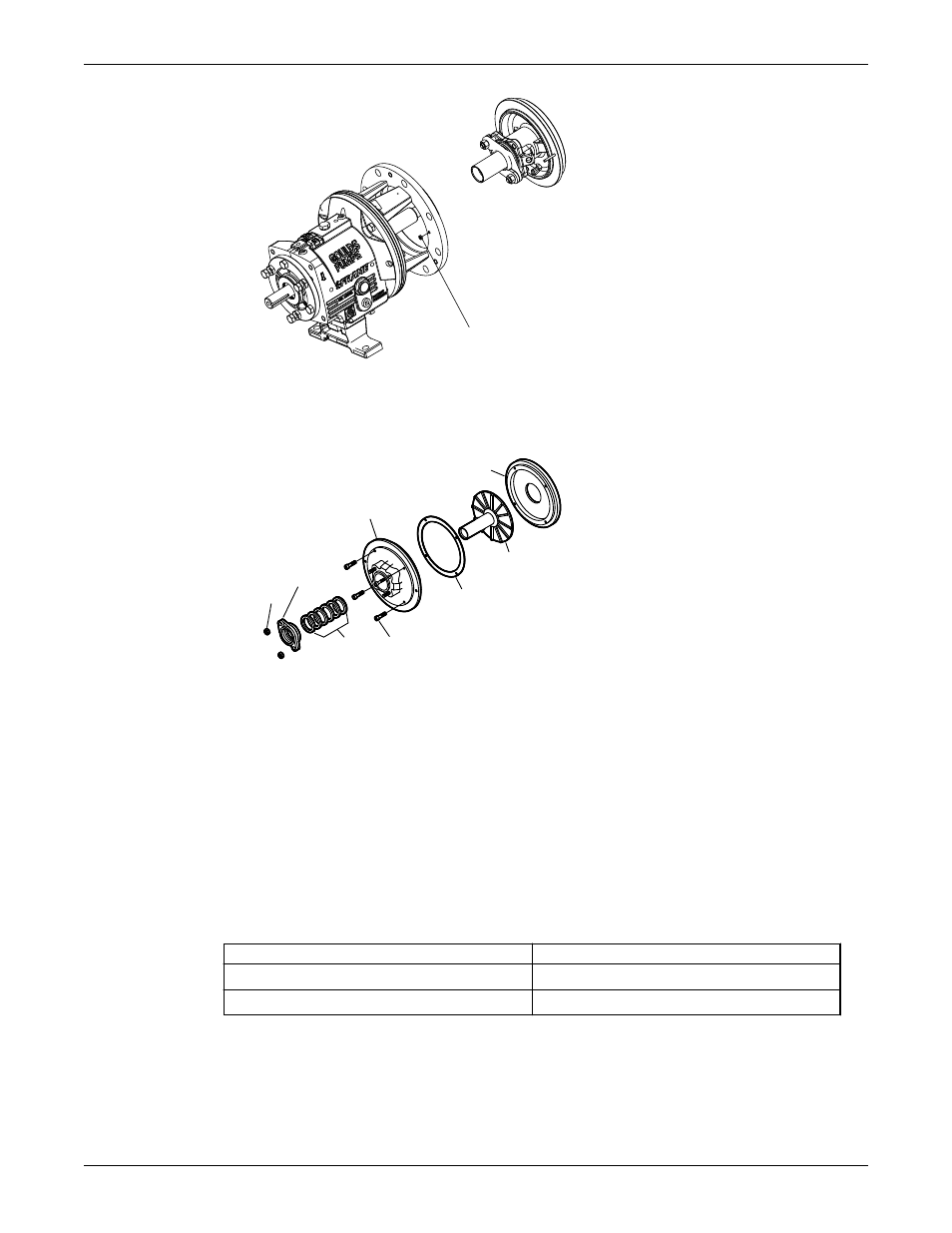

3. Remove the socket head cap screws (265).
4. Remove the packed stuffing box cover (184) and gasket (264).
5. Remove the repeller (262) from the backplate (444).
444
184
262
264
107
355
106 265
Remove the frame adapter (MTi, LTi)
The 3198 frame adapter is not interchangeable with the adapter of any other model.
1. Remove the dowel pins (469B) and the bolts (370B).
2. Remove the frame adapter (108).
3. Remove and discard the gasket (360D).
You will install a new gasket during reassembly.
Remove the inboard labyrinth oil seal
Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, and they are sold separately.
1. Determine the fit of your labyrinth oil seal.
Table 11: Labyrinth oil-seal fit
Model Type of fit
STi O-ring fit into the bearing-frame adapter (228A)
MTi, LTi O-ring fit into the frame adapter
2. Remove the O-rings (497H and 497J) and the seal (333A).
