Frame Inboard bearing
Outboard bearing
Double row Duplex
LTi 6311 Not applicable 7310
Spare parts
Always state the serial number and indicate the part name and item number from the relevant sectional
drawing when you order spare parts. It is imperative for service reliability to have a sufficient stock of
readily available spare parts.
• Impeller (101)
• Shaft (122A)
• Shaft sleeve (126)
• Outboard bearing (112A)
• Inboard bearing (168A)
• Casing gasket (351)
• Frame-to-adapter gasket (360D)
• Bearing-housing retaining ring (361A)
• Bearing lockwasher (382)
• Bearing locknut (136)
• Impeller O-ring (412A)
• Bearing-housing O-ring (496)
• Outboard labyrinth-seal rotary O-ring (497F)
• Outboard labyrinth-seal stationary O-ring (497G)
• Inboard labyrinth-seal rotary O-ring (497H)
• Inboard labyrinth-seal stationary O-ring (497J)
• Lantern ring half (105) (packed stuffing box)
• Stuffing box packing (106) (packed stuffing box)
• Packing gland (107) (packed stuffing box)
• Impeller gasket (428D) (XLT-i and i17 only)

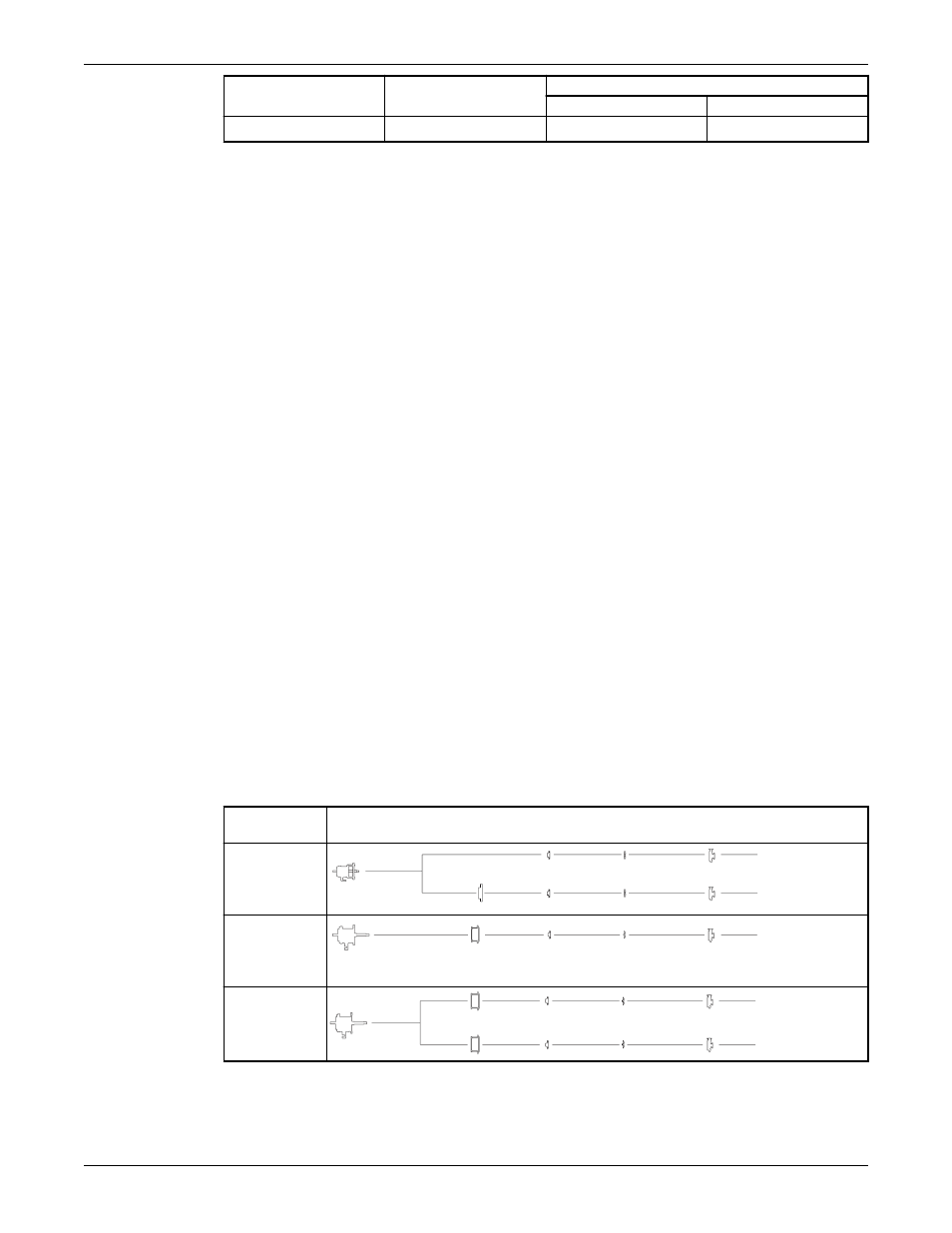

Interchangeability drawings
LF 3196 interchangeability
Table 22: LF 3196 interchangeability drawing
Description
Shaft and Bearing
Frame Assembly
Adapter Seal Chamber Impeller Casing Size
Model LF 3196
STi 1–3/8 in.
Shaft Dia. Max
BHP-40 HP
1x1.5-4 AA
1x1.5-8 AA
Model LF 3196
MTi 1–3/4 in.
Shaft Dia. Max
BHP-122 HP
1x2-10 A05
Model LF 3196
LTi 2–1/8 in.
Shaft Dia. Max
BHP-200 HP
1x2-10 A05
1.5x3-13 A20
Maintenance
