Acura Music Link BII31179-34943 - Manual (Page 5)

© 2007 American Honda Motor Co., Inc. - All Rights Reserved. BII 31179-34943 (0704)
5 of 8
5527031B
GLOVE
BOX
MUSIC LINK
HARNESS
19 mm
HOLE
MUSIC LINK
HARNESS DIN
CONNECTOR
GROMMET

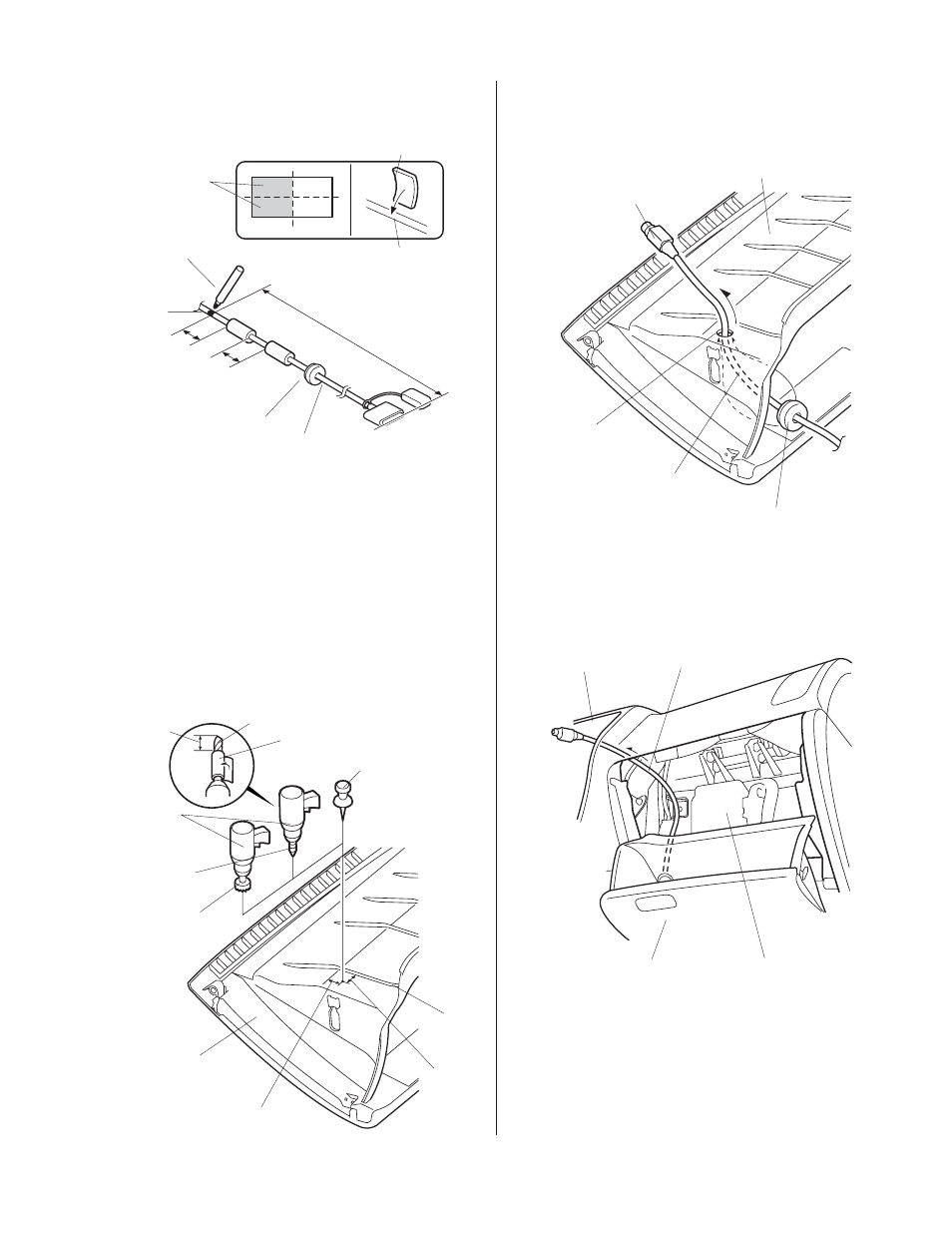

14. Using a felt-tip pen, mark the Music Link harness
as shown.
15. Route the Music Link harness through the
grommet.
16. Cut one cushion tape into 4 equal pieces, and
wrap two pieces of the cushion tapes to the Music
Link harness at the measurements shown.
17. To prevent damage, wrap electrical tape around
the drill bit at a point about 30 mm away from the
tip. While wearing eye protection, drill a 19 mm
(3/4 in.) hole through the marked location. Remove
all burrs from the drilled hole.
18. Route the Music Link harness DIN connector into
the 19 mm hole in the direction shown, and install
the grommet to the 19 mm hole.
5527041B
MUSIC LINK
HARNESS
GLOVE
BOX
GLOVE BOX
OPENING
AUDIO UNIT
OPENING
19. Route the Music Link harness through the glove
box opening to the audio unit opening.
5527021B
RIB
DRILL
MOTOR
PUSHPIN
3 mm
DRILL BIT
GLOVE
BOX 20 mm
DRILL
BIT
ELECTRICAL
TAPE
30 mm
20 mm
19 mm (3/4 in.)
HOLE SAW
5702091B
MUSIC LINK
HARNESS
FELT-TIP
PEN
MARK
50 mm
900 mm
CUSHION
TAPE
(Cut into 4 pieces.)
50 mm
GROMMET
CUSHION
TAPE
MUSIC LINK
HARNESS
