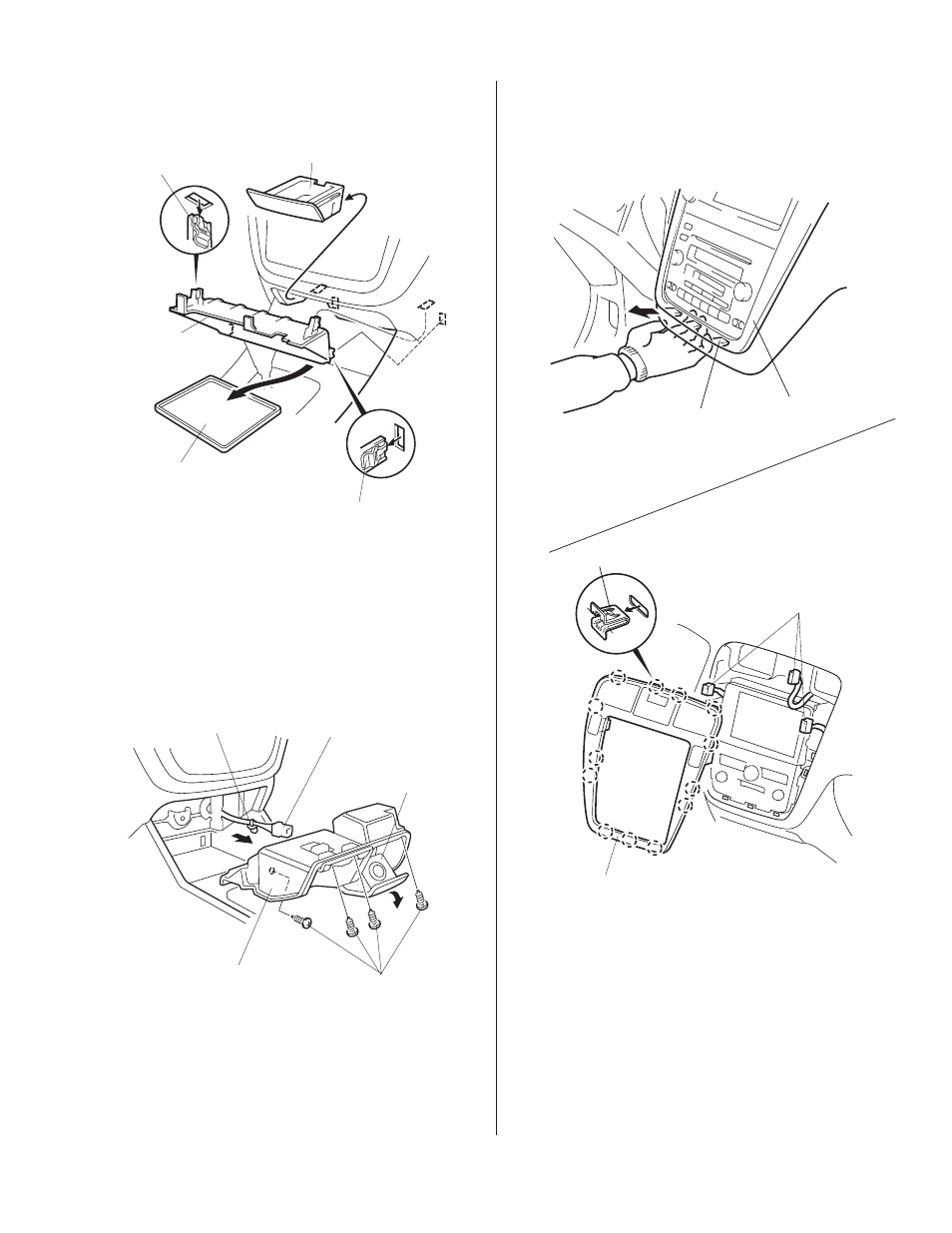

6. Move the shift lever to the N position, then
remove the coin box.
7. Remove the mat and center panel lower trim (four
clips).
8. Open the accessory socket cover, and remove
the center lower cover (four self-tapping screws,
release the harness clip, and disconnect the
accessory socket connector).
9. While wearing gloves, reach under the center
panel and release each of the three bottom clips.
Carefully pull the center panel out toward you to
release the ten clips. Unplug the vehicle
connectors, and remove the center panel.
