Acura Music Link BII31179-34943 - Manual (Page 2)

2 of 8
BII 31179-34943 (0704) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
3715130M
5527110B
BUS CABLE
HARNESS
ADAPTER
UNIT
AUDIO
UNIT
INSTALLATION
Client Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures should
not be attempted by “do-it-yourselfers.”
1. Make sure you have the anti-theft code for the
radio, then write down the frequencies for the
preset buttons.
2. Disconnect the negative cable from the battery.
SHIFT
INDICATOR
TRIM RING
SHIFT
CONSOLE
PANEL
CLIPS (7)
VEHICLE
CONNECTORS
TABS (4)
LID
3. Open the lid. Remove the beverage holder (pull up
to release the two clips).
4. Gently remove the shift indicator trim ring (four
tabs). Take care not to damage the tabs.
TOOLS AND SUPPLIES REQUIRED
#2 Phillips screwdriver
Flat-tip screwdriver
Diagonal cutters
Scissors
Ratchet
10 mm Socket
10 mm Combination wrench
Drill motor
3 mm Drill bit
19 mm Hole saw (3/4")
Felt-tip pen
Pushpin
Eye protection
Gloves
Isopropyl alcohol
Electrical tape

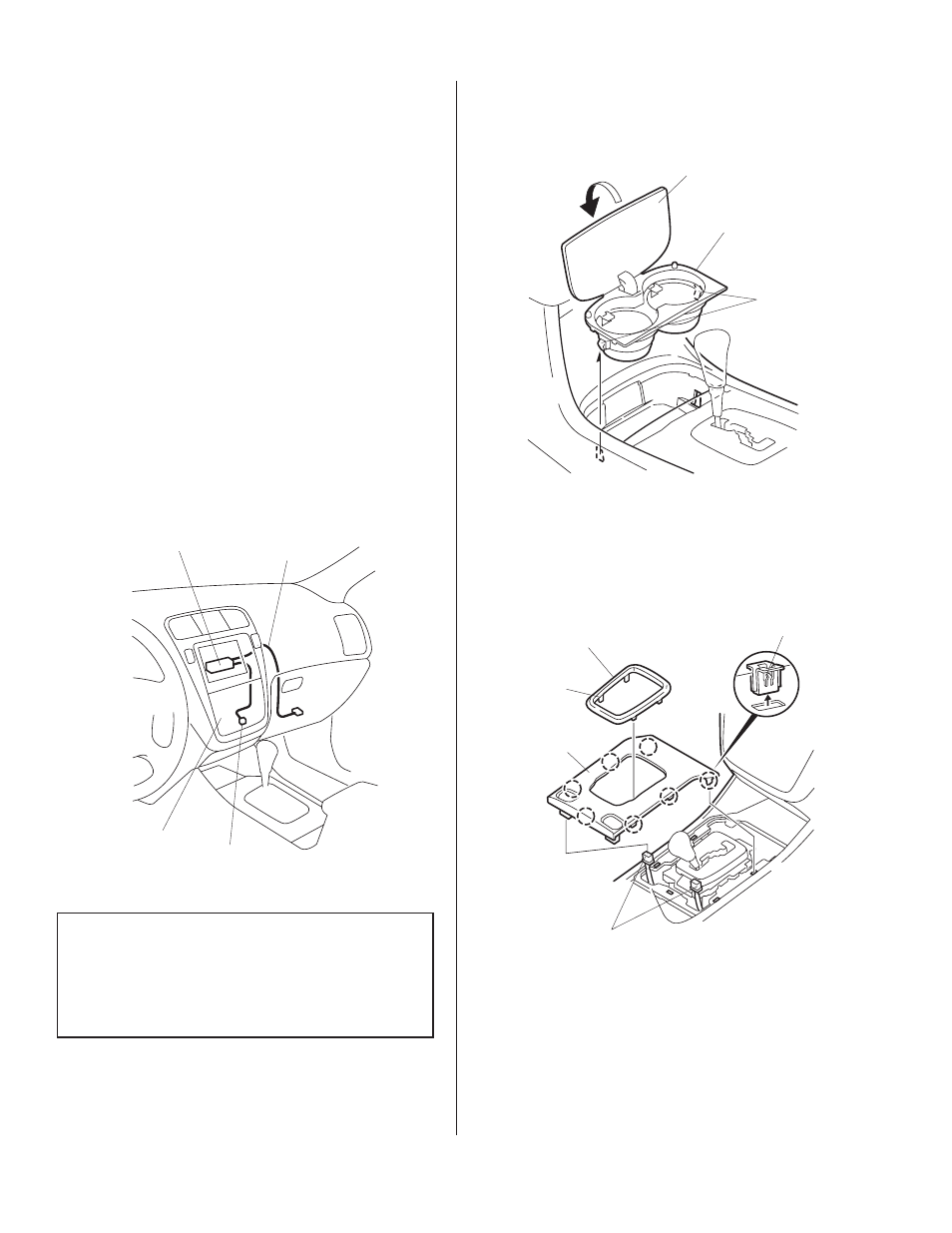

Illustration of the Music Link System Installed on
the Vehicle
5. Gently remove the shift console panel (pull up to
release seven clips, and unplug the connectors).
2001080T
REVERAGE
HOLDER
CLIPS
