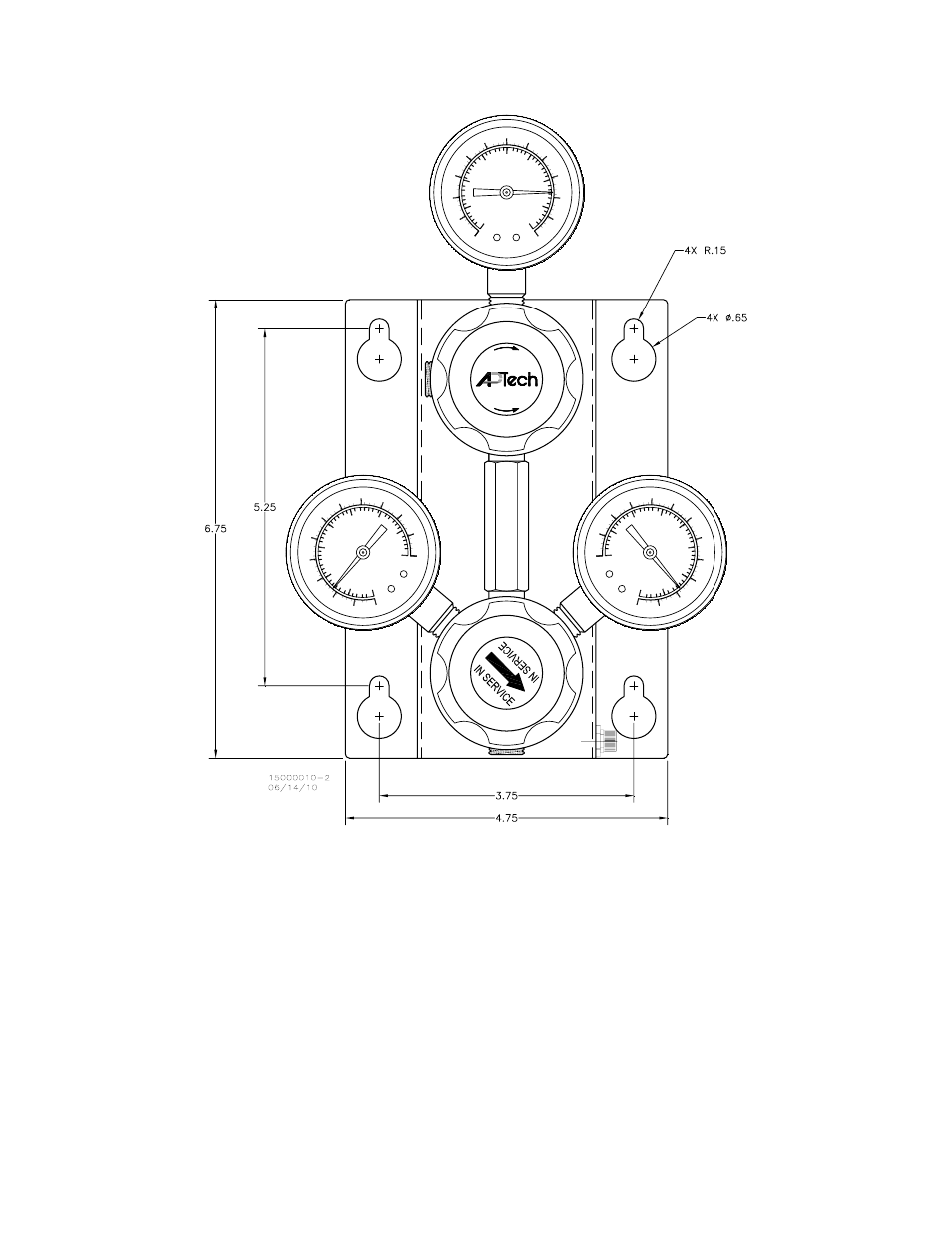

Figure 2. AK M80/86 Crossover Manifold Mounting Hole Pattern
4.3. Connect Gas Lines to AK M80/86
Position a gas cylinder on each side of the AK M80/86 panel. Secure cylinders in place using an
appropriate restraint system.
Equipment can be supplied with various types of fittings and connections. The standard connections are
1/4 inch female NPT. Inspect the system to determine if the connection is NPT, tube compression, or
other.
Install a check valve into port labeled “HP-A” on AK M80/86 manifold. Flow arrow on check valve
should be pointing into the AK M80/86 manifold inlet port. Install manual shut off valve onto check
valve.
