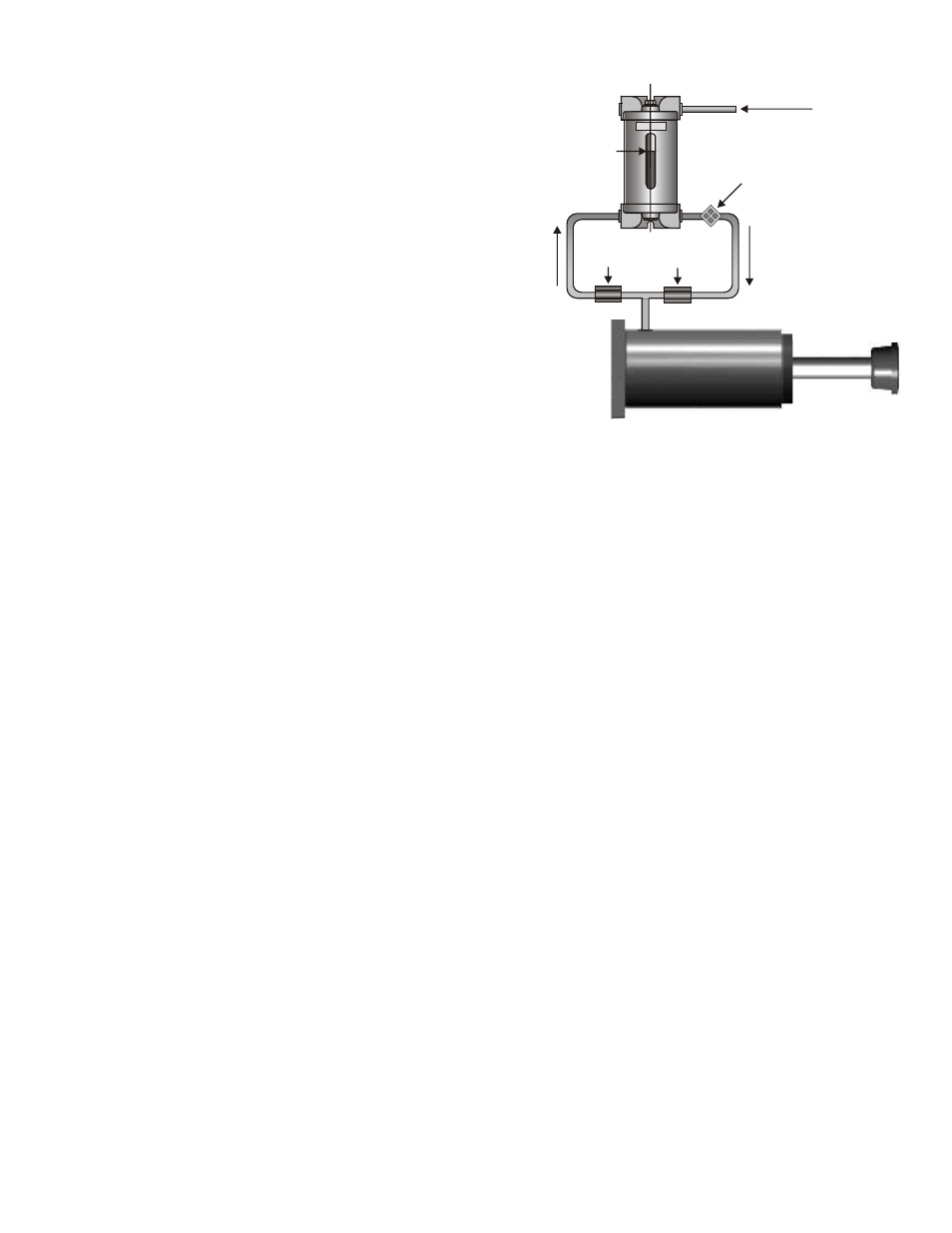

RE-CIRCULATING COOLING CIRCUIT FOR
MODELS CAA, CSA, AA and SA (Figure 3)
This type of installation may be required when ambient
temperatures and/or cycle rates cause the shock absorber
0 0 to heat up beyond 200 F (93 C).
Use 250 psi (17 bar) check valves with a low cracking
pressure of 5 psi (0.34 bar). If a filter is to be used in this
circuit, a 30 to 40 micron filter element with a 5 psi (0.34 bar)
by-pass is recommended. Consult factory for assistance.
above this line Do not fill
WARNING Do not use near open flame
contents may be flammable
Air Supply
Optional Filter
Check Valve (2)
Figure 3
