H

G

FIG 5

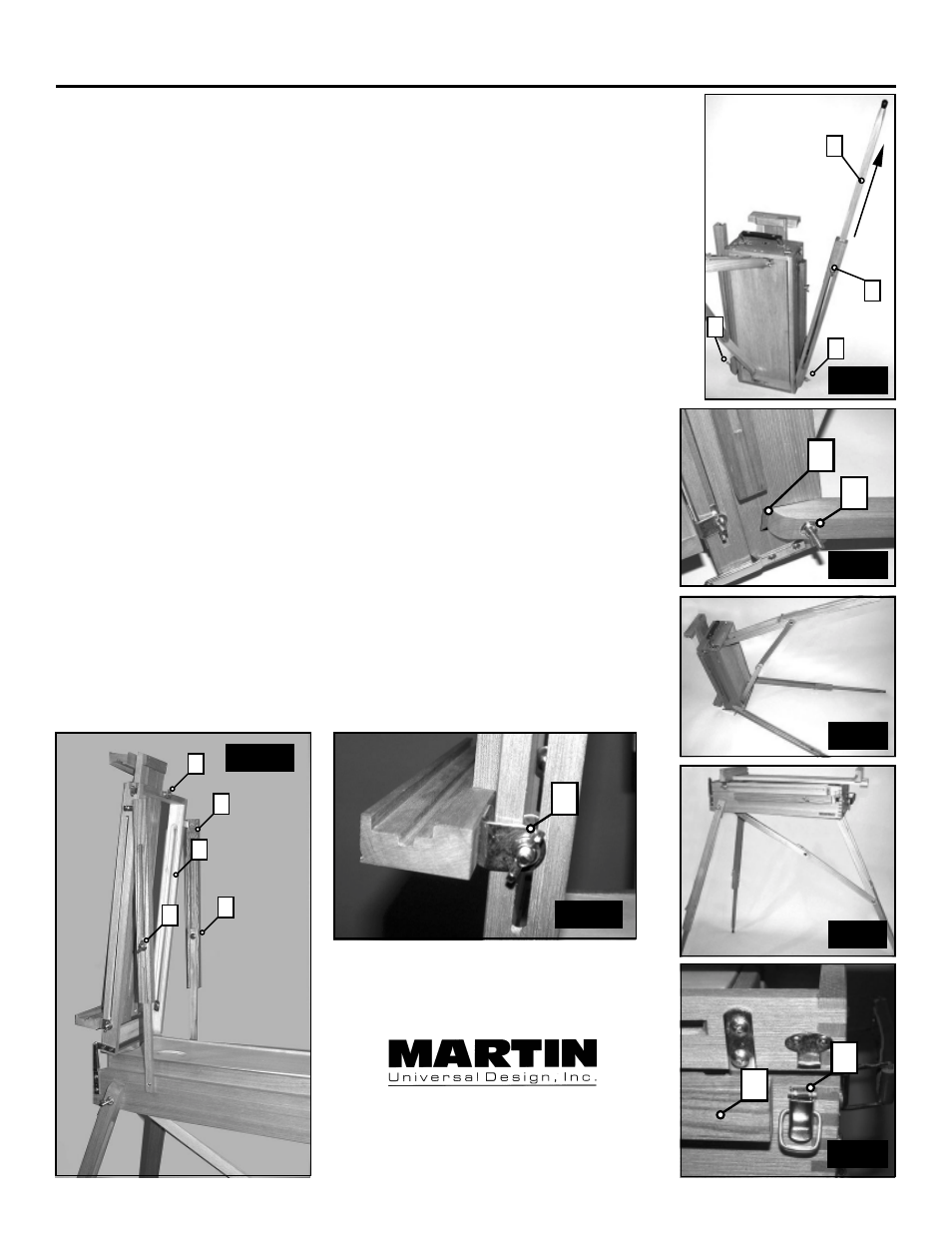

92-3032 French Sketchbox Easel Assembly Instructions, continued

FIG 8

Q

6. Continue by extending lower portion of right leg by loosening wing-nut [G]

and extending lower leg [H] completely. Tighten wing-nut to secure.
See FIG 5. REPEAT with left side.

7. Loosen wing-nuts [I] and [J]. Twist left and right leg towards rear of easel

making certain legs are positioned into slotted grooves [K] then
re-tighten wing-nuts [I] and [J] to secure. See FIG 6.
Before going to step 8, easel should look like FIG 7.

8. Making certain all wing-nuts on all legs are tightened, continue by

carefully turning easel up onto all 3 legs. See FIG 8.

9. To open Sketchbox, release each hinge [L] on both sides of sketchbox

and loosen wing-nuts [N] and [O] positioned along tilt supports [M].
See FIG 9 and 10.

10. Lift up on sketchbox to swing up and open. Lock into desired position/

angle by tightening down wing-nuts along tilt supports [M]. See FIG 10.

11. To adjust upper canvas support loosen metal knob [Q] on rear of upper

canvas support. See FIG 10. Tighten at desired height.
To adjust lower canvas support loosen wing-nuts [P] along outer edge of
canvas support. See FIG. 11. Tighten at desired position.

J

I

FIG 6

FIG 7

FIG 9

L

K

J

M

O

FIG 10

N

M

M

P

Q

FIG 11

4444 Lawton Avenue, Detroit, MI 48208 USA

Tel:(313)895-0700 / Fax:(313)895-0709

E-mail: [email protected]

www.MartinUniversalDesign.com

pg.2

Your easel is now ready for your painting enjoyment!
