H
ANGING THE
F
AN
4.
Outlet box
Hanger bracket
Downrod
Supply
wires
Figure 5
Figure 7 Figure 8
Figure 6
Figure 10
Registration
slot
Cross pin
Hanger
ball
Downrod
Hitch
pin
Lock
pin
Set
screws
Screw
Fig. 9
Downrod
Coupling
*Omit coupling
cover when
downrod
cover
using
the minimum-length
Canopy
Set screws
Hitch pin Lock pin
REMEMBER to turn off the power.
Follow the steps below to hang your
fan properly:

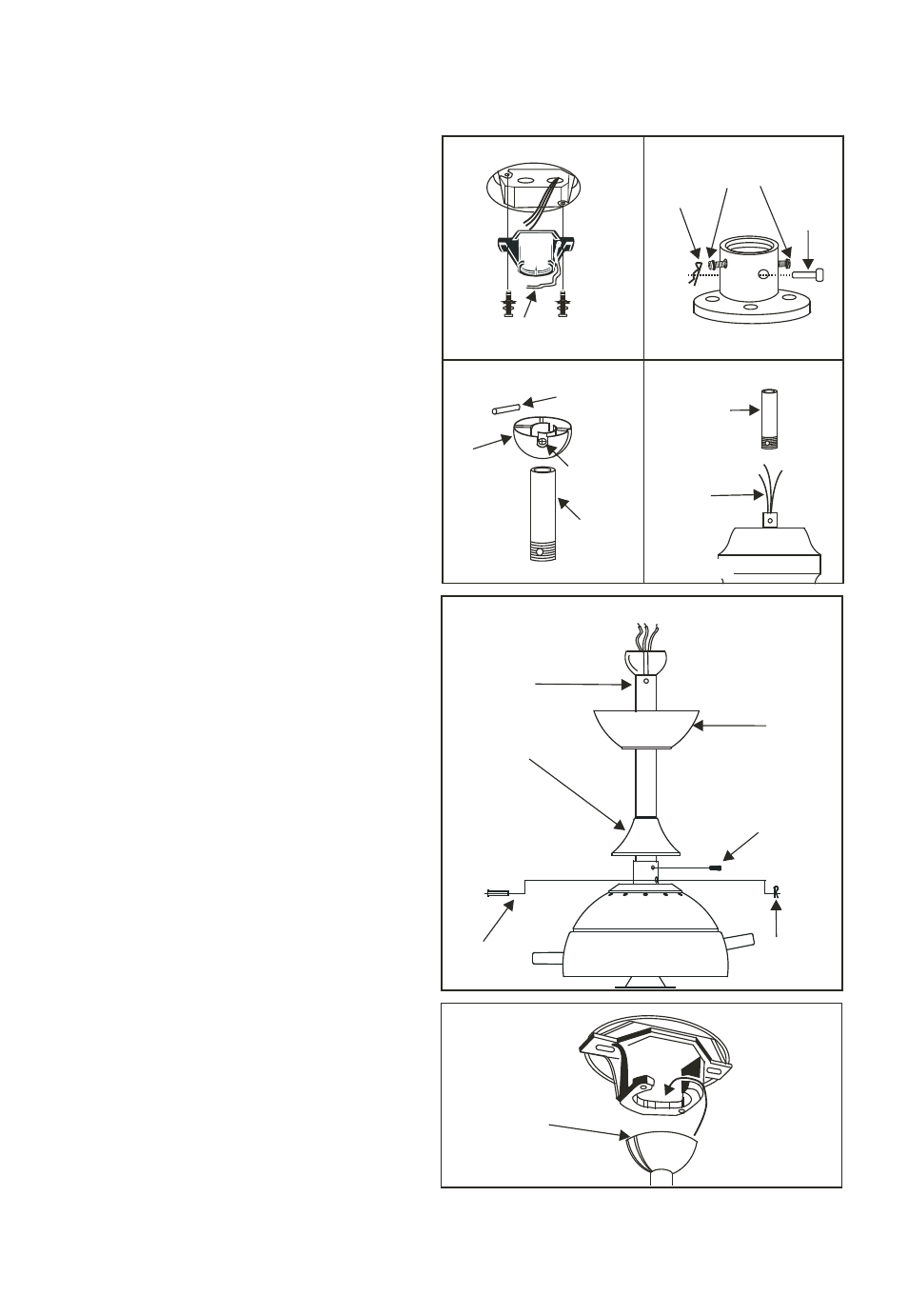

Step 1. Secure the Hanger Bracket to
the ceiling outlet box using the screws
provided with your outlet box in
conjunction with the lock-washers
provided with the fan. (Fig. 5)
Step 2. Loosen the two Set Screws and
remove the Hitch Pin and Lock Pin
from the coupling located on the top
of the Motor Assembly. (Fig. 6)
Step 3. Remove the Hanger Ball from
the Downrod Assembly by loosening
the Set Screw and removing the Cross
Pin. (Fig. 7)
Step 4. Carefully feed fan wires up
through the downrod. (Fig. 8) Thread
Downrod into the Coupling until the
holes are lined up and secure with the
Lock Pin and Hitch Pin previously
removed, tighten Set Screws. (Fig. 9)
Step 5. Slip Coupling Cover and
Canopy onto Downrod. Carefully re-
install the Hanger Ball onto the
Downrod being sure that it's properly
positioned over the Cross Pin and the
wires are not twisted, tighten Set
Screw. (Fig. 9)
Step 6. Lift the Motor Assembly and
place the Hanger Ball into the Hanger
Bracket. Rotate the Motor Assembly as
needed until the check groove from
the Hanger Ball rests firmly over the
registration tab from the Hanger
Bracket. Motor Assembly should not
rotate if this is done correctly. (Fig. 10)
