I
NSTALLING THE
L
IGHT
P
LATE
9.
REMEMBER: to disconnect the
power. The fan blades must be
already attached to the fan.
Your fan and light plate though pre-
wired have been disassembled at the
factory to ease in shipping. Please
follow these steps to complete the
installation of your fan and light.
Step 1. Loosen (do not remove) the 3
screws from the light mounting plate.
Step 2. Raise and hold the light plate
close to the light mounting plate and
proceed to do the wire connections.
Connect the white wire connectors
from the light plate and fan, follow
the same procedure with the black
wire connectors. (Fig. 18)
Step 3. Place the light plate key holes
over the 3 screws previously loosened
from the light mounting plate, turn
light plate until it locks in place at the
narrow section of the key holes.
Secure by tightening the 3 screws
previously loosened. (Fig. 18).

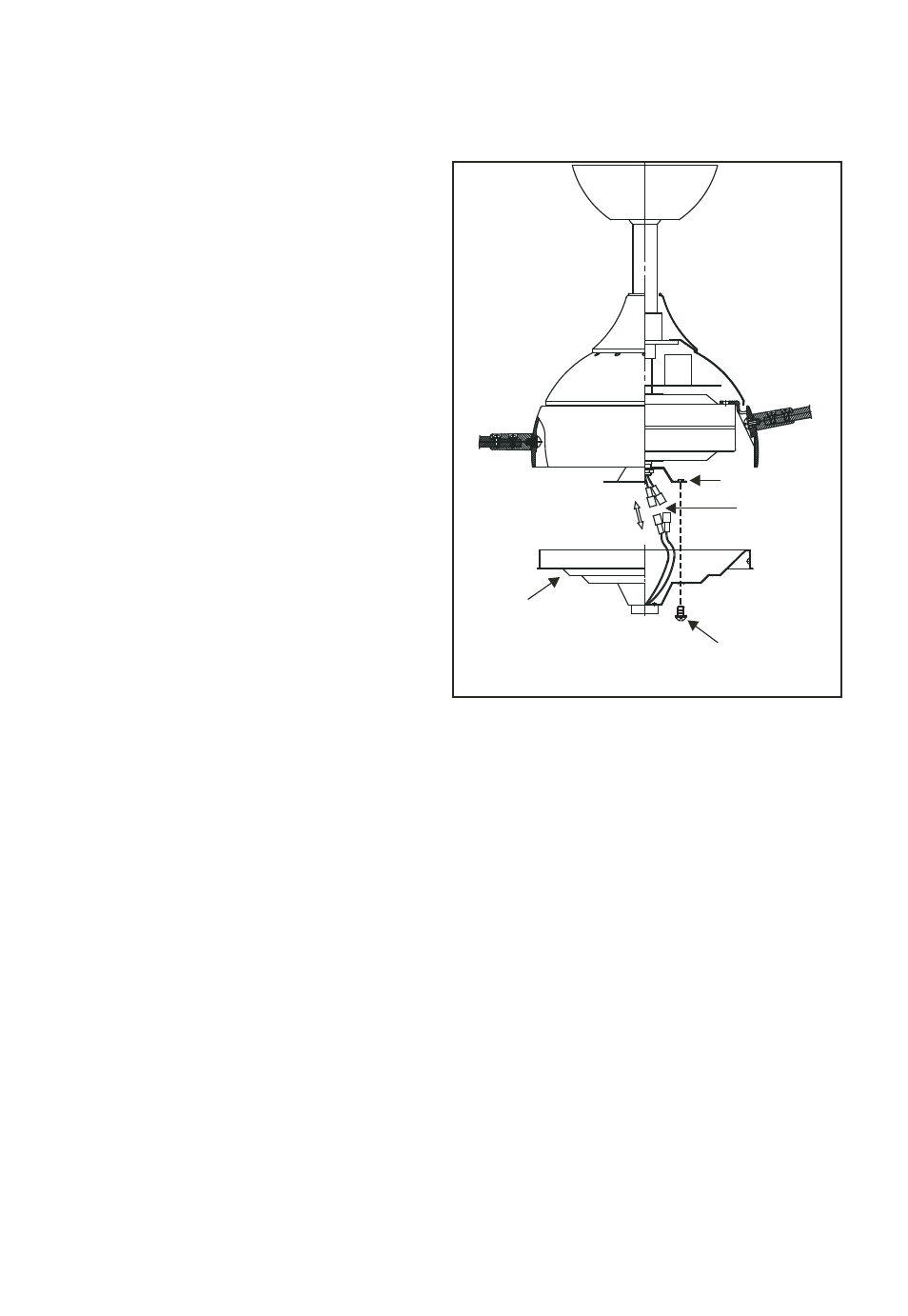

Fig. 18
Light plate
Screws
Connector
plugs
Light mounting
plate
