Fig.12 fig. 11 – Minka Group F571-DRF User Manual

Page 14

background image

Fig.12

Fig. 11

HOUSE WIRE SUPPLY

GREEN (GROUND)

CEILING

WALL

WHITE (NEUTRAL)

WHITE (NEUTRAL)

GROUND-
(CONNECT TO
GROUND WIRE ON
HANGER
BRACKET IF NO
HOUSE GROUND
WIRE EXISTS.)

BLACK (HOT)

LIGHT

SWITCH

BLUE (OPTIONAL

LIGHT)

BLACK (MOTOR)

HOUSE WIRE SUPPLY

GREEN (GROUND)

CEILING

WALL

WHITE (NEUTRAL)

WHITE (NEUTRAL)

GROUND-
(CONNECT TO
GROUND WIRE ON
HANGER
BRACKET IF NO
HOUSE GROUND
WIRE EXISTS.)

BLACK (HOT)

LIGHT

SWITCH

FAN WALL

CONTROL

BLUE (OPTIONAL

LIGHT)

BLACK (MOTOR)

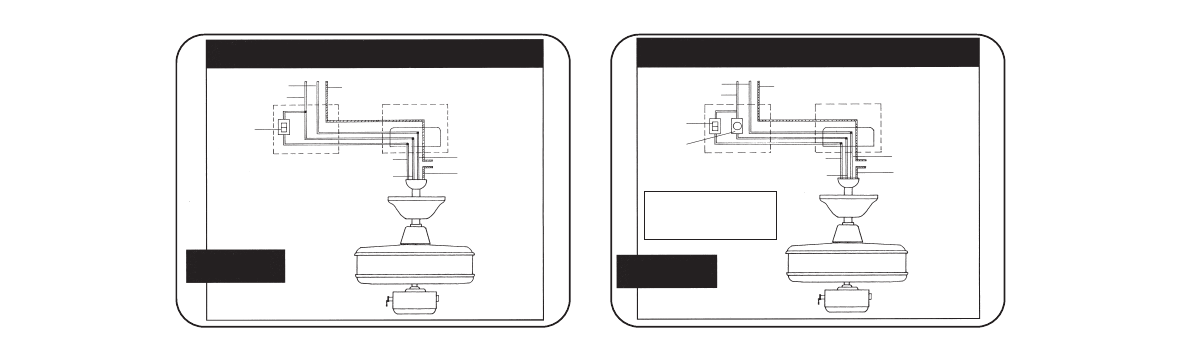

FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH.

FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.

WIRING

OPTION 1

WIRING

OPTION 2

NOTE: SOME WALL UNITS

INCRPORATE BOTH LIGHT

SWITCH AND FAN WALL

CONTROL IN ONE HOUSING.
