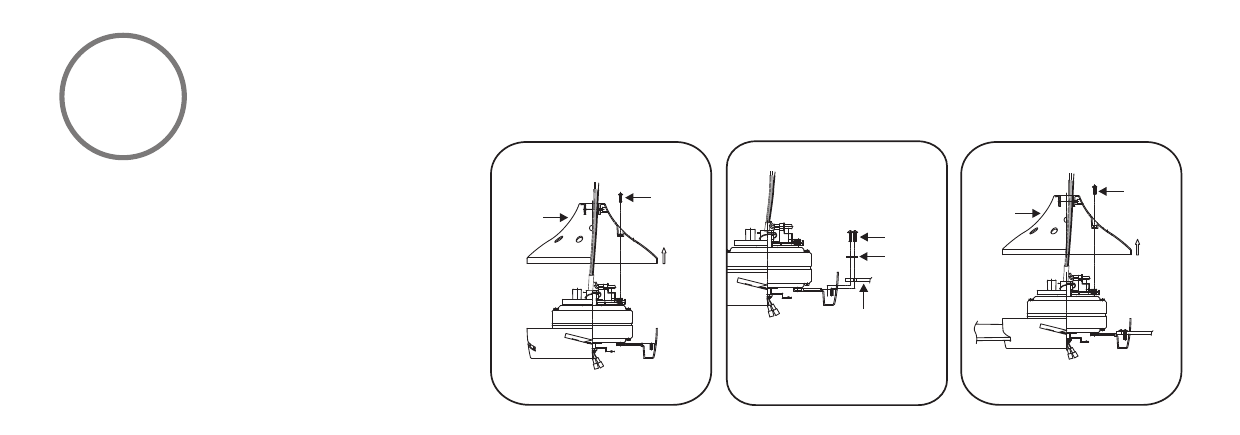

Step 1. (Fig. 5) Remove the upper cover by
remove the 4 screws from the motor.

Step 2. (Fig. 6) Insert the blade through the
access window from the blade holder. Align
holes from the blade and motor and secure with
3 screws and fiber washers. Repeat process with
the other blades.

Step 3. (Fig. 7) Replace the upper cover to the
motor and secure with the 4 screws
previously removed.

Fig. 5

Fig. 6

BLADE INSTALLATION

Fig. 7

SCREWS

UPPER

COVER

SCREWS

FIBER

WASHERS

BLADE

UPPER

COVER

SCREWS
