INSTALLING THE LIGHT PLATE
Step 1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not
remove)
Step 2. Raise and hold the light plate close to the mounting plate and proceed to do the wire
connections. Connect the white wire connectors from the light plate and fan, follow the same
procedure with the black wire connectors. (Fig. 17)
Step 3. Place the key holes from the light plate over the 2 screws previously loosened from
the mounting plate, turn light plate until it locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws previously loosened and the one previously removed.
(Fig. 17)
MOUNTING
PLATE
SCREWS
CONNECTORS
LIGHT
PLATE

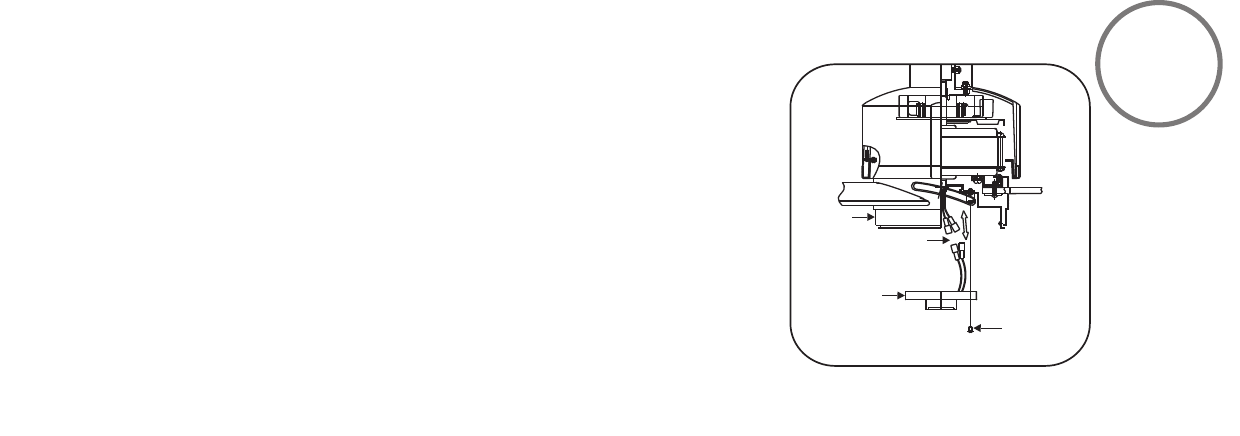

Fig. 17
