Magikitch'n FC72 - Manual (Page 9)

9
L25‐056 (11/13) R1
B. FOCUS SERIES MODELS WITH SAFETY PILOT
1. Turn all burners to OFF.
2. Remove the top grid(s).
3. Turn the shut off valve to ON.
4. Light the runner tube.
5. Press and hold the (red) button on the safety pilot valve. Wait 15‐30 seconds. Light the
runner tube. DO NOT release the reset button.
Note: If runner tube does not light wait a few seconds, then try again.
Note: When lighting the runner tube for the first time after connecting the unit to the
gas source, the light time will probably increase to 1‐2 minutes.
6. Wait and additional 15‐30 seconds. Release the reset button. The runner tube should
remain lit.
Note: If the runner tube fails to ignite, repeat step 5. If the runner tube fails to ignite
after three attempts, contact and authorized MagiKitch’n service agent.
7. Replace the top grid.
8. Push and turn the burner valves to operate the individual burners as needed.
BROILER SHUT DOWN
Turn the shut off valve to OFF.
Turn all burners to OFF.

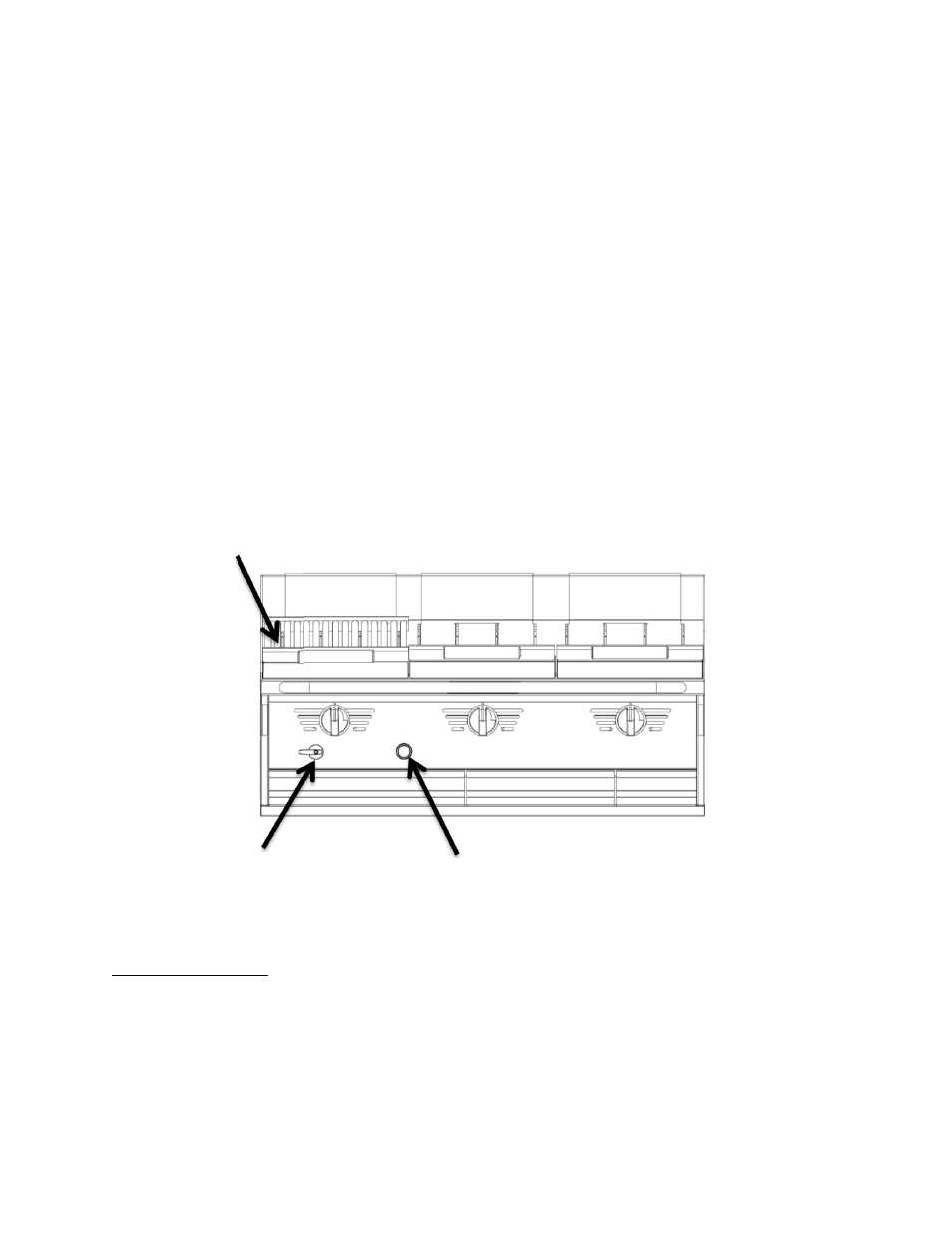

Shut‐off Valve
Safety Pilot Valve
Thermocouple
(Located on far
end of runner
tube)
