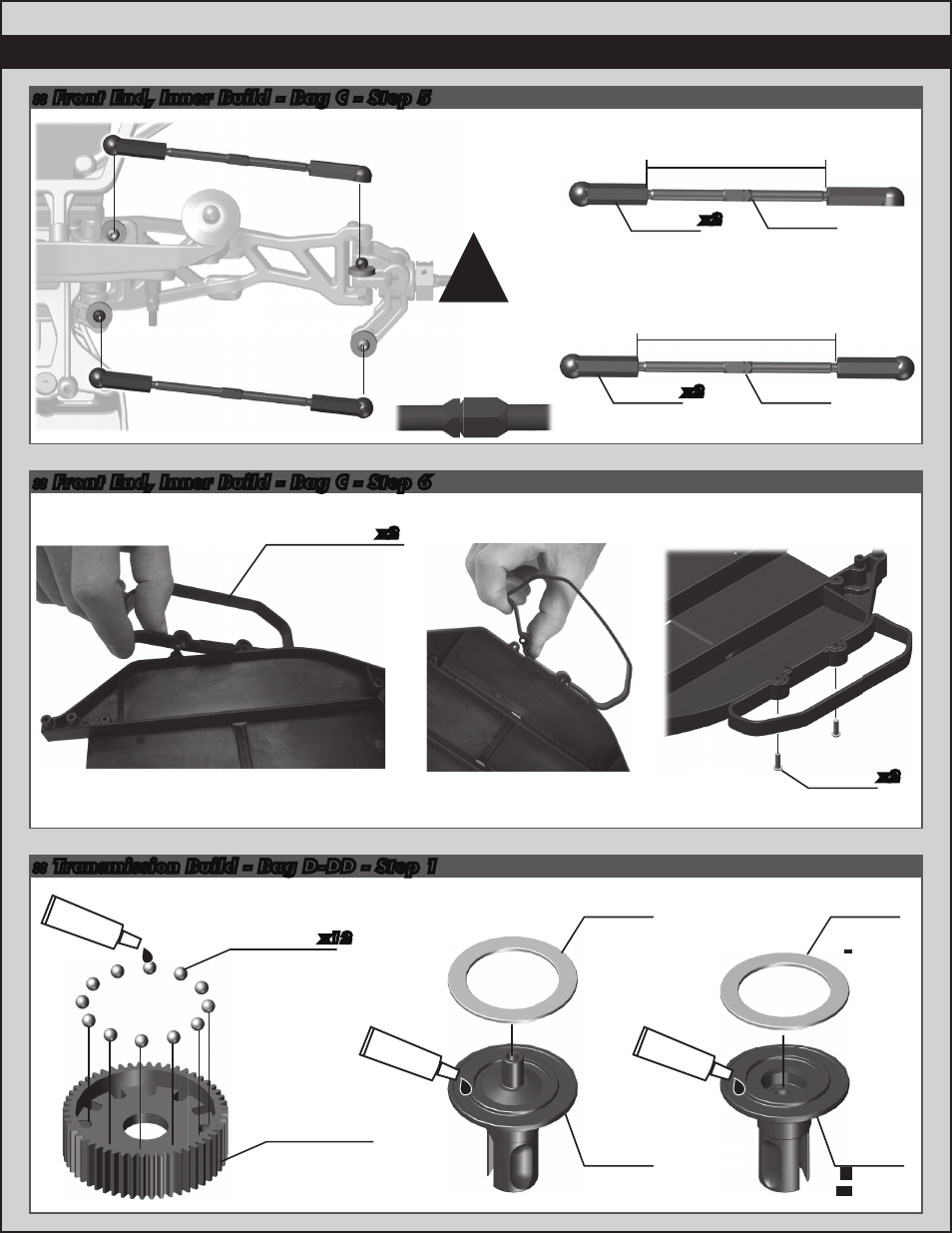

:: Front End, Inner Build - Bag C - Step 5
:: Front End, Inner Build - Bag C - Step 6
:: Transmission Build - Bag D-DD - Step 1
7666
Drive
rings
9852
Ball diff
outdrives
9852
Ball diff
outdrives
7666
Drive
rings
6581
3/32 carbide
diff balls
7664
Diff gear
52T
x12
#6591
diff lube
#6591
diff lube
#6591
diff lube
Front Camber Turnbuckle
1.92” (48.75mm)
2.07” (52.75mm)
Steering Turnbuckle
7230
ball cup
(large)
6917
4-40x3/8
bhcs
7230
ball cup
(large)
9822
Nerf bar
(1 left & 1 right)
1417
2.80”
Ti turnbuckle
1408
2.65”
Ti turnbuckle
x2
x2
x2
x2
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
