LoadMaster for Fujitsu Installation
Installation Guide
3 Configuring the LoadMaster via the Console
If the LoadMaster does not automatically obtain an IP address using DHCP as described in
Section 2.2, or if you prefer to configure the LoadMaster via the console, then the following
configuration steps must be completed before starting the LoadMaster:
1. Login into the LoadMaster via the console using the settings
lb100 login: bal
Password: 1fourall

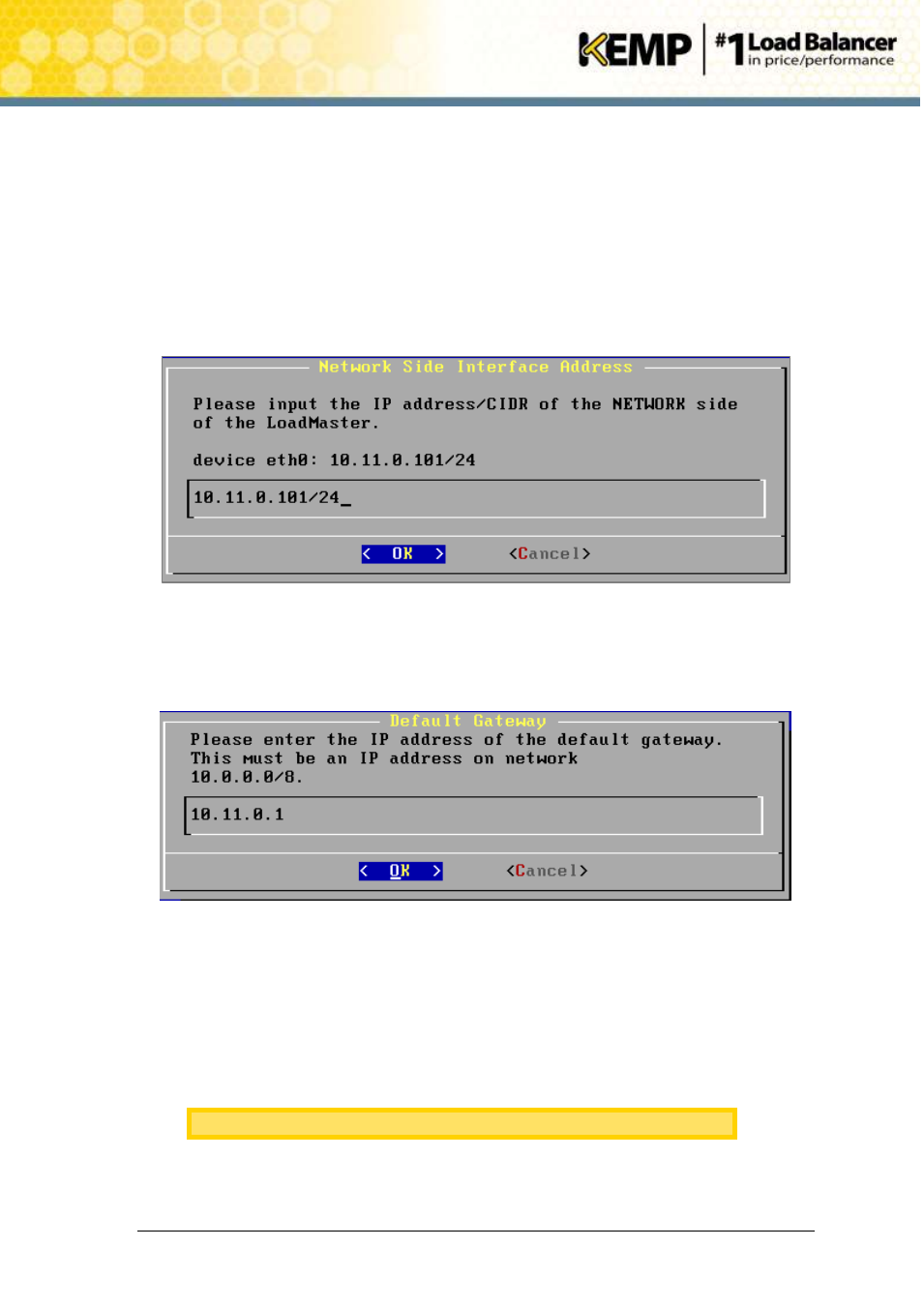

Figure 3-1 Network Side Interface Address
2. Enter the IP address of the eth0 interface, the network facing interface of the
LoadMaster, in the input field within the Network Side Interface Address dialog box.
3. Press OK.
Figure 3-2 Default Gateway
4. Enter the IP address of the default gateway in the input field of the Default Gateway
dialog box.
5. Press OK.
6. Once these are set, a prompt will appear asking to connect to the web interface at the
newly configured IP address. In an internet browser enter the IP address of the eth0
entered in Step 2.
Ensure to enter https:// before the IP address.
