VLM for VMware Workstation and Player
Installation Guide
4 Troubleshooting
4.1 Cannot access the Web User Interface
If a connection to the WUI cannot be established, network settings can be configured via the
console view.
1. Login into the VLM via the console using the settings:
lb100 login: bal
Password: 1fourall

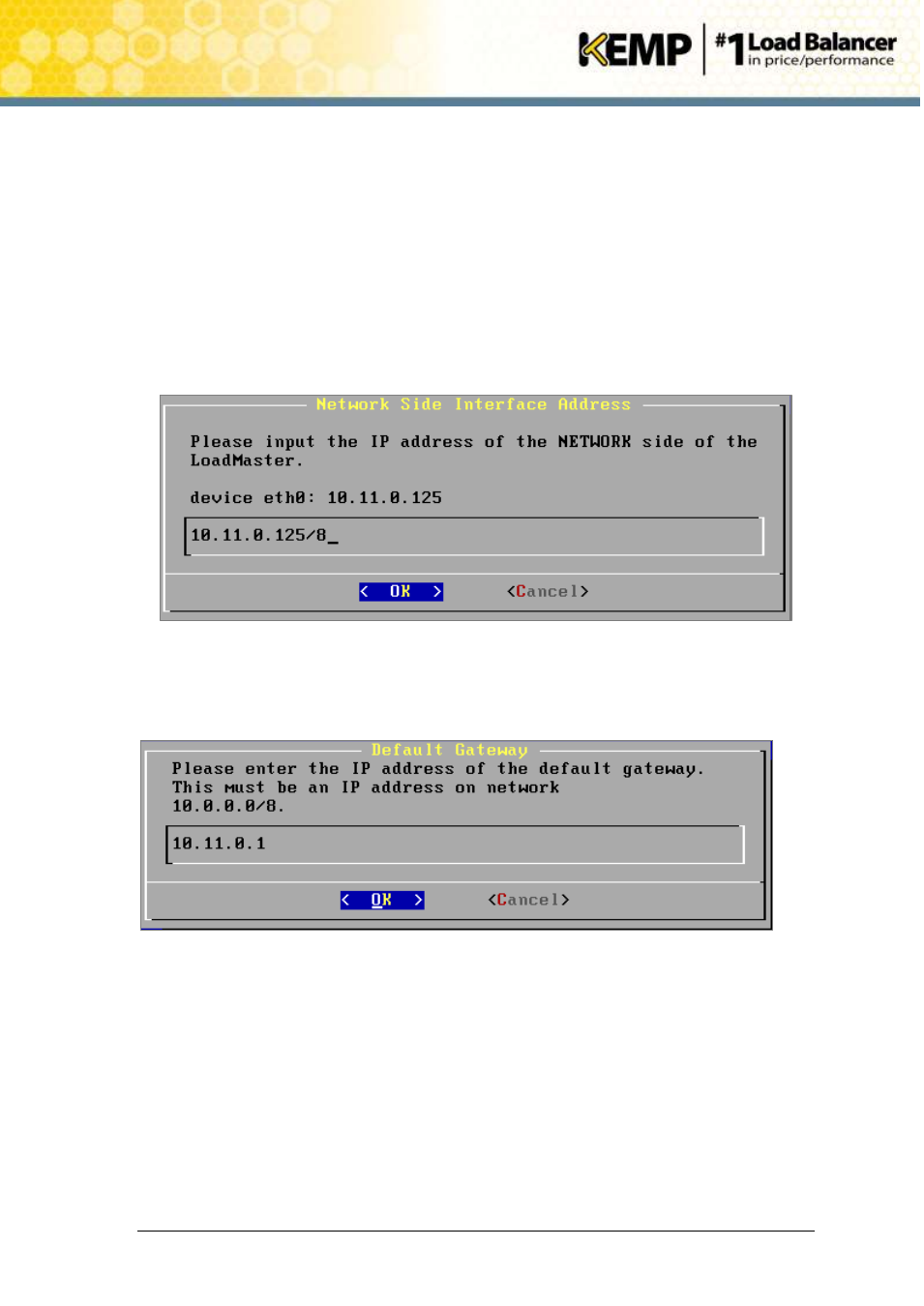

Figure 4-1: Enter IP address
2. Enter the IP address of the eth0 interface, the network-facing interface of the LoadMaster,
in the input field within the Network Side Interface Address field and press Enter on the
keyboard.
Figure 4-2: Enter default gateway address
3. Enter the IP address of the Default Gateway.
