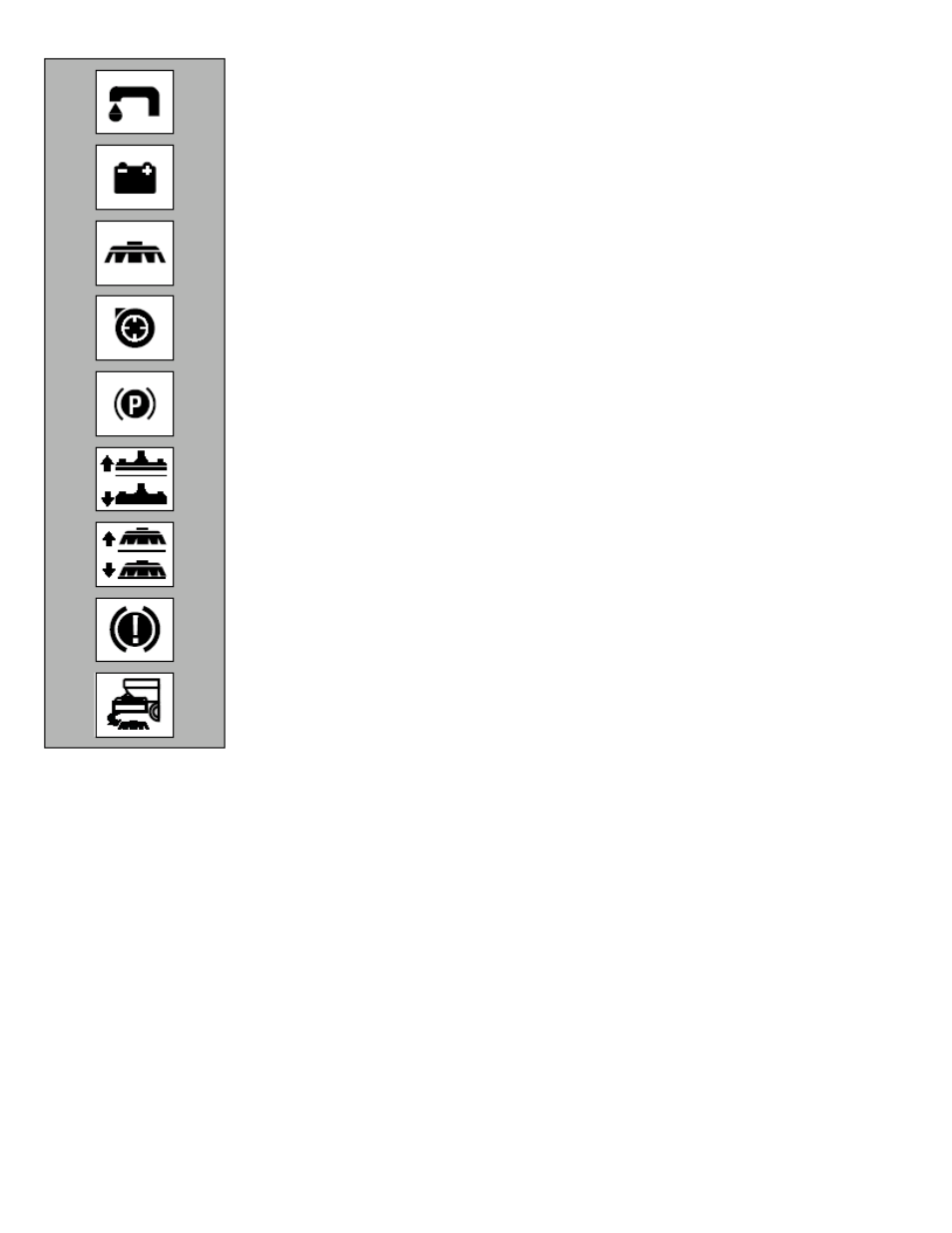

• Water symbol indicates the water valve open signal lamp.
• Battery charge level symbol.
• Brush symbol indicates the brush motor switch.
• Vacuum motor symbol indicates the vacuum motor switch.
• Brake symbol indicates the hand brake engaged signal lamp. Used over the
emergency brake lever.
• Squeegee lift/lower symbol indicates the squeegee lift lever.
• Brush base lift/lower symbol indicates the base lift lever.
• Brake symbol indicates the parking brake disengaged position.
• Automatic brush uncoupling symbol. Indicates the switch for automatic removal of
brush.
